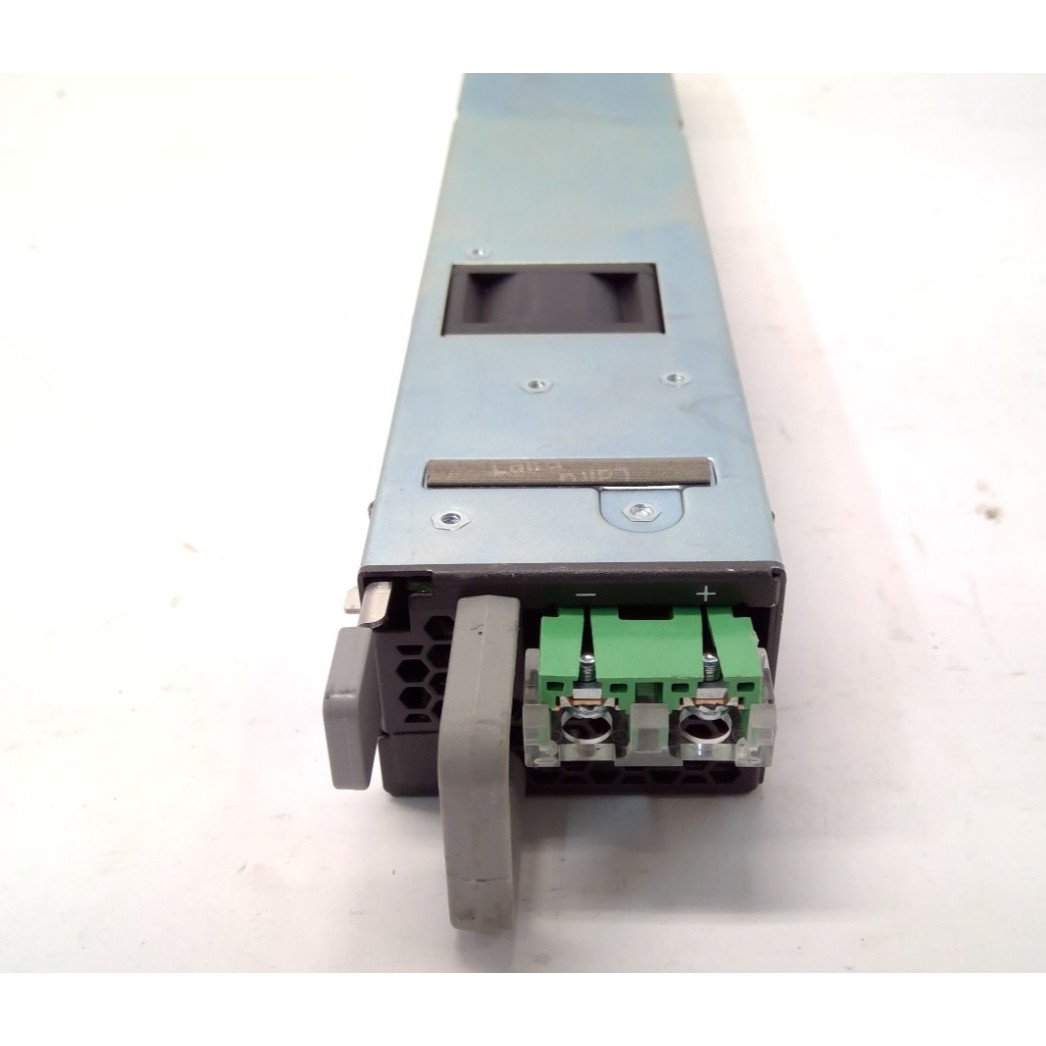

Cisco PWR-CH1-950WDCR | Catalyst 8500 950W DC Power Supply, Reverse Airflow

SKU:PWR-CH1-950WDCR

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is the 950W DC power supply module for the Cisco Catalyst 8500 Series Edge Platforms, designed for the C8500-12X and C8500-12X4QC. It is a hot-swappable module that accepts a -48V nominal DC feed, which suits telco, central-office and service-provider power plants.

The module is rated at 950W maximum with a 12V, 79A output and 86% nominal efficiency. DC input range is -40 to -72V, drawing 27.6A to 15.3A (23A), with a 4 ms output holdup time. Input is wired through an Amphenol FXTH series 2-terminal block using #10 wire rated at 30A. The R suffix marks this as the reverse airflow variant, for racks and hot-aisle or cold-aisle layouts that need airflow in the reverse direction.

The Catalyst 8500 platforms ship with dual power supply redundancy by default, and this module is the DC option for the C8500-12X and C8500-12X4QC, alongside the PWR-CH1-750WACR AC option. The C8500-20X6C uses a different DC module, PWR-CH1-950WDC. No licence is required for the power supply itself.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable power supply module for Catalyst 8500 platforms
- Supports the dual power supply redundancy that Catalyst 8500 Edge Platforms use by default
- DC input suited to telco and central-office -48V DC power plants
- Reverse airflow variant (R suffix) for racks requiring reverse airflow
- 86% nominal efficiency at 950W maximum rating
- 4 ms output holdup time

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Power maximum rating: 950W
- Input voltage range: DC -40 to -72V (-48V nominal)
- Output rating: 12V, 79A
- Power supply efficiency (nominal): 86%
- Input current: 27.6A to 15.3A (23A)
- Output holdup time: 4 ms
- Input receptacle: Amphenol FXTH series 2-terminal block
- Power cord rating: #10 wire, 30A
- Airflow: Reverse airflow
- Compatible platforms: C8500-12X and C8500-12X4QC
- Spare part number: PWR-CH1-950WDCR=
- Ordering description: Cisco C8500 950W DC Power

FAQs

Q: Which Catalyst 8500 models does this power supply fit?
A: It is the DC power option for the C8500-12X and C8500-12X4QC. The C8500-20X6C uses a different DC module, PWR-CH1-950WDC.

Q: What DC input voltage does it require?
A: It accepts -40 to -72V DC, with -48V nominal. Input current ranges from 27.6A to 15.3A (23A), wired through an Amphenol FXTH series 2-terminal block using #10 wire rated 30A.

Q: What does the R in PWR-CH1-950WDCR mean?
A: The R suffix denotes the reverse airflow variant, used where the rack or hot-aisle and cold-aisle design needs airflow in the reverse direction.

Q: Does this power supply need a licence?
A: No. No licence is required for the power supply itself.

Q: Is there an AC alternative for the same chassis?
A: Yes. The PWR-CH1-750WACR is the AC option listed for the C8500-12X and C8500-12X4QC.
