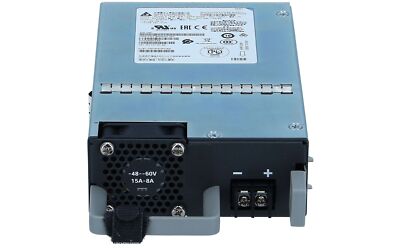

Cisco PWR-CH1-400WDC | Catalyst 8500L 400W DC Power Supply, Reverse Airflow
SKU:PWR-CH1-400WDC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The PWR-CH1-400WDC is a 400W DC-input power supply module for the 1RU Cisco Catalyst 8500L-8S4X Edge Platform, part of the Catalyst 8500 Series. It accepts a nominal -48 VDC feed and delivers 12 V output to the platform, which makes it a good fit for telco, central-office and other DC-powered sites running aggregation-site SD-WAN or cloud-edge routing.
The input range is -40 to -72 VDC with a maximum rating of 400W. Input current is below 8A at -60 Vdc and below 15A at -48 Vdc. Nominal efficiency is 85% at 20% load, 88% at 50% load and 85% at 100% load. Output holdup time is 8 ms on Vout and 2 ms on PW_OK. This SKU is the 400W DC (-48 VDC) option with reverse airflow for the Catalyst 8500L-8S4X.
It is a field-replaceable module for the C8500L-8S4X chassis. Alternative power options for the same chassis are PWR-CH1-400WAC (AC) and PWR-CC1-400WHV (HVAC/HVDC). It is not intended for the C8500-12X, C8500-12X4QC or the 3RU C8500-20X6C.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- DC-input power option for the Catalyst 8500L-8S4X, alongside the AC (PWR-CH1-400WAC) and HVDC (PWR-CC1-400WHV) options
- Suited to telco and central-office sites with -48 VDC power plants
- Field-replaceable power supply module
- 12 V output to the platform
- Host platform designed to NEBS GR-1089 and GR-63 criteria
- Wide -40 to -72 VDC input range
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: PWR-CH1-400WDC
- Maximum power rating: 400W
- Output rating: 400W at 12 V
- DC input voltage range: -40 to -72 VDC
- Nominal input voltage: -48 VDC
- Input current: below 8A at -60 Vdc, below 15A at -48 Vdc
- Efficiency: 85% at 20% load, 88% at 50% load, 85% at 100% load
- Output holdup time: 8 ms (Vout), 2 ms (PW_OK)
- Airflow: reverse airflow
- Host platform: Cisco Catalyst C8500L-8S4X Edge Platform (1RU)
- Host platform operating temperature: 0 to 40 C
- Host platform storage temperature: -40 to 70 C
- Host platform operating humidity: 10 to 85% non-condensing
- Host platform altitude: -152 to 3048 metres
- Host platform NEBS criteria: GR-1089 and GR-63
FAQs
Q: Which chassis does the PWR-CH1-400WDC fit?
A: It is the 400W DC power supply for the 1RU Cisco Catalyst C8500L-8S4X Edge Platform. It is not intended for the C8500-12X, C8500-12X4QC or the 3RU C8500-20X6C.
Q: What input voltage does it need?
A: It takes a DC feed from -40 to -72 VDC, with -48 VDC nominal. Input current is below 8A at -60 Vdc and below 15A at -48 Vdc.
Q: Does the power supply need a licence?
A: No. The power supply itself needs no licence. The host Catalyst 8500L platform uses Cisco Smart Licensing with the Cisco DNA (C8500) subscription.
Q: What other power supply options exist for the C8500L-8S4X?
A: The same chassis also supports PWR-CH1-400WAC for AC input and PWR-CC1-400WHV for HVAC/HVDC input. This SKU is the -48 VDC option.
Q: How efficient is it?
A: Nominal efficiency is 85% at 20% load, 88% at 50% load and 85% at 100% load.
