Cisco

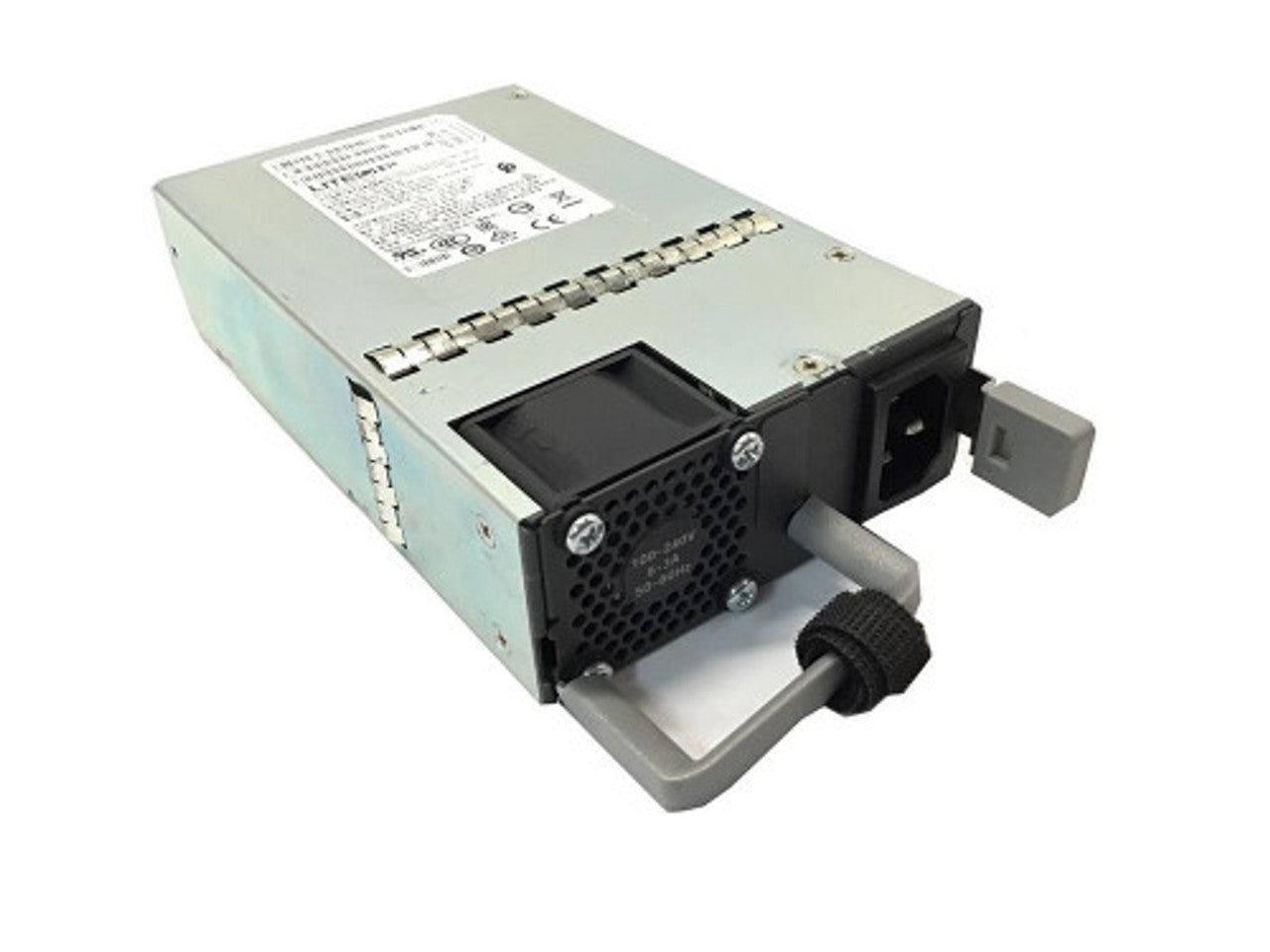

Cisco PWR-CH1-400WAC | Catalyst 8500L 400W AC Power Supply, Hot-Swappable

SKU:PWR-CH1-400WAC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 400W AC power supply is a field-replaceable unit for the Cisco Catalyst 8500L-8S4X Edge Platform, part of the Catalyst 8500 Series. It suits branch aggregation, WAN edge and SD-WAN deployments where the 1RU chassis needs primary or redundant AC power.

The unit delivers a 400W output rating with a 424W maximum rating from an AC input of 85 to 264 Vac at 47 to 63 Hz. Input current is under 3A at 200 Vac and under 6A at 100 Vac. It is rated 80 Plus Silver, with 89% efficiency at 50% load, and uses an IEC 320 style input receptacle. Output holdup time is 20 ms. This is the AC variant, distinct from the PWR-CH1-400WDC DC unit and the PWR-CC1-400WHV HVAC/HVDC unit for the same chassis.

The C8500L-8S4X takes two power supplies for N+1 redundancy, and the PSU can be replaced while the device is in service when a redundant unit is installed. AC, DC and HVAC/HVDC supplies cannot be mixed in one chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field-replaceable and hot-swappable when a redundant PSU is installed
- Dual-PSU N+1 redundancy keeps the chassis running if one of the two PSUs fails
- Status LED and Alarm Fail LED on the PSU faceplate
- Tool-less latch and handle for removal and insertion
- 80 Plus Silver efficiency to help reduce power losses
- Wide AC input range of 85 to 264 Vac for flexible site power

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Output rating: 400W
- Power maximum rating: 424W
- Input voltage range: 85 to 264 Vac
- Nominal input voltage: 100 to 240 Vac
- Input frequency: 47 to 63 Hz
- Input current: <3A @ 200 Vac, <6A @ 100 Vac
- Efficiency rating: 80 Plus Silver
- Efficiency: 85% @ 20% load, 89% @ 50% load, 85% @ 100% load
- Output holdup time: 20 ms
- Power good holdup time: 5 ms
- Input receptacle: IEC 320 style
- Input type: AC
- Host chassis: C8500L-8S4X
- Hot-swap: Yes, when a redundant PSU is installed
- Spare part number: PWR-CH1-400WAC=

FAQs

Q: Does this power supply need a licence?
A: No licence is required for the power supply itself. The host C8500L-8S4X platform uses Cisco DNA and Smart Licensing.

Q: Which chassis does the PWR-CH1-400WAC fit?
A: It is for the Cisco Catalyst C8500L-8S4X Edge Platform, part of the Catalyst 8500L range.

Q: Can I mix AC and DC power supplies in one chassis?
A: No. AC, DC and HVAC/HVDC power supplies cannot be mixed in the same chassis. The DC sibling is PWR-CH1-400WDC and the HVAC/HVDC sibling is PWR-CC1-400WHV.

Q: What AC power input does it require?
A: It accepts 85 to 264 Vac at 47 to 63 Hz. Input current is under 3A at 200 Vac and under 6A at 100 Vac. Connecting each PSU to a separate circuit is recommended.

Q: Can I replace it while the router is running?
A: Yes, if a redundant power supply is installed. Any empty PSU slot must be fitted with a blank filler.
