Cisco

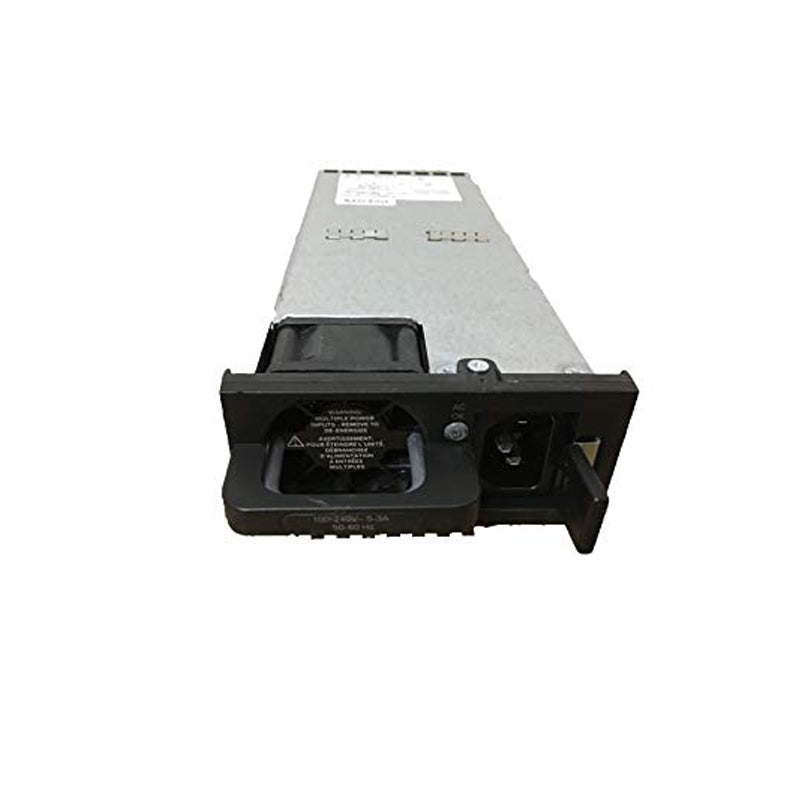

Cisco PWR-4450-POE-AC | ISR 4450 1000W AC Power Supply with PoE Module

SKU:PWR-4450-POE-AC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 1000W AC power supply with PoE module is the primary PoE system power supply for the Cisco 4000 Series Integrated Services Routers, covering the ISR 4450 (4451-X) and ISR 4350 (4351). It suits branch-office deployments where the router needs to power PoE and PoE+ endpoints such as IP phones, wireless access points and cameras directly.

In normal mode a single PoE supply delivers a 500 W PoE budget, enough for up to 32 ports at 15.4 W or 25 ports at 20 W on the 4451 and 4351. On the ISR 4451-X a second PoE supply (PWR-4450-POE-AC/2) can be fitted for redundant mode or boost mode, which raises the budget to 1000 W and supports up to 64 ports at 15.4 W or 50 ports at 20 W. This SKU is the primary unit rather than the /2 secondary. It supports IEEE 802.3af and 802.3at through PoE-capable NIMs such as the NIM-ES2-8-P.

The module is AC input only, and the PoE option is not available with DC system power input. The power supply itself needs no licence. The PoE LAN switch NIMs it powers require IOS-XE 3.15 or later with the IP Base licence of the Universal image.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds PoE and PoE+ system power to Cisco 4000 Series ISRs for powering IP phones, access points and cameras from the router
- Optional upgrade over the default system power supply
- Second PoE supply on the ISR 4451-X enables redundant mode or boost mode
- Boost mode doubles the PoE budget to 1000 W on the ISR 4451-X
- Powers PoE NIMs such as the NIM-ES2-8-P 8-port PoE/PoE+ Layer 2 Gigabit Ethernet LAN switch NIM
- Field-replaceable internal module

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: PWR-4450-POE-AC
- Description: Cisco 4451 PoE Power Supply / Cisco 4351 PoE Power Supply
- Power supply type: Optional internal PoE system power supply
- Rating: 1000W AC with PoE module
- Input: AC only, PoE option not available with DC system power input
- PoE budget, single supply, normal mode (4451 / 4351): 500 W
- Maximum ports at 15.4 W, normal mode (4451 / 4351): 32
- Maximum ports at 20 W, normal mode (4451 / 4351): 25
- PoE budget, dual supplies, boost mode (4451): 1000 W
- Maximum ports at 15.4 W, boost mode (4451): 64
- Maximum ports at 20 W, boost mode (4451): 50
- Boost mode on ISR 4351: Not available
- PoE standards: IEEE 802.3af and 802.3at (PoE+) via PoE-capable NIMs
- Compatible routers: Cisco ISR 4451-X and ISR 4351
- Minimum software: Cisco IOS-XE 3.15 (IP Base licence of the Universal image)

FAQs

Q: Does this power supply need a licence?
A: No licence is required for the power supply itself. The PoE LAN switch NIMs it powers need IOS-XE 3.15 or later with the IP Base licence of the Universal image, and no additional feature licence is needed for those NIMs.

Q: Which routers does it fit?
A: It is the PoE system power supply for the Cisco ISR 4451-X and ISR 4351. Other ISR 4000 models use their own PoE supplies, such as PWR-4320-POE-AC for the 4321, PWR-4330-POE-AC for the 4331 and PWR-4430-POE-AC for the 4431.

Q: How much PoE power does it provide?
A: A single supply provides a 500 W PoE budget on the ISR 4451-X and 4351, enough for up to 32 ports at 15.4 W or 25 ports at 20 W. Fitting a second supply in the 4451-X in boost mode raises this to 1000 W.

Q: How does it differ from PWR-4450-POE-AC/2?
A: This SKU is the primary PoE supply. PWR-4450-POE-AC/2 is the secondary unit for the ISR 4451-X, used for redundant mode or boost mode alongside the primary.

Q: Can it be used with DC system power?
A: No. This is an AC input supply, and the PoE option is not available with DC system power input.
