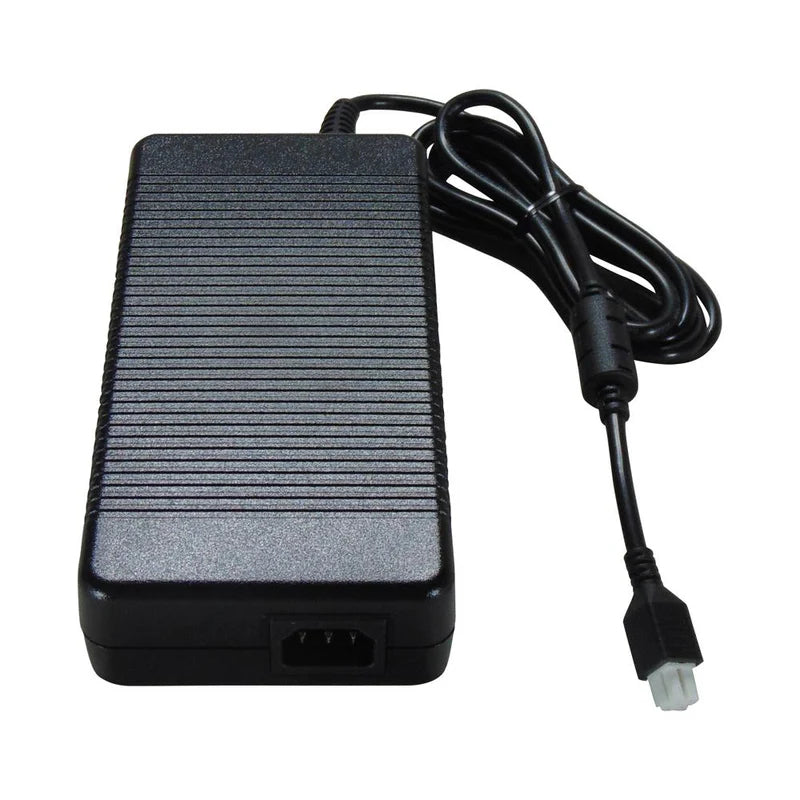

• Cisco PWR-150W-AC 150W AC PSU with PoE support and textured black power cord
1 1

Cisco

Cisco PWR-150W-AC | ISR 1100 150W PoE Power Adapter, 12V + -53.5V

PWR-150W-AC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco PWR-150W-AC is an external 100-240 VAC power adapter for the Cisco 1000 Series Integrated Services Routers (ISR 1100 family). It supplies both the 12 VDC system rail and a -53.5 VDC PoE rail from a single adapter, so the router can power connected endpoints directly.

Rated at 150W, the adapter delivers 12 V at 6.0 A for the router and -53.5 V at 1.55 A for PoE. Input is universal 100-240 VAC at 50-60 Hz, rated 2.5 A, which suits deployment in any region. It enables optional PoE and PoE+ on the 8-port ISR 1100 models, with 4 PoE and 2 PoE+ ports across the 8 GE LAN ports.

It is intended for branch and small-office sites where an ISR 1100 such as the C1111-8P or a C112x-8P-class model needs to power IP phones, access points or cameras without separate injectors. Other ISR 1100 variants use the 115W, 66W or 30W adapters instead, so this 150W unit is the one to match to the PoE-capable models.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Provides both the 12 VDC system power and the -53.5 VDC PoE rail from one external adapter
- Universal 100-240 VAC input for worldwide deployment
- Enables PoE and PoE+ for powered endpoints on ISR 1100 8-port models
- Suits branch and small-office routers powering IP phones, access points and cameras
- Available as a spare under the PWR-150W-AC= part number

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID: PWR-150W-AC (spare: PWR-150W-AC=)
- Power source: 150W AC power adapter
- Input voltage: 100-240 VAC (universal)
- Input frequency: 50 to 60 Hz
- Input current: 2.5 A
- Output: 12 VDC at 6.0 A
- PoE output: -53.5 VDC at 1.55 A
- Total rating: 150W
- PoE support: optional PoE/PoE+ on ISR 1100 8-port models (4 PoE / 2 PoE+ on 8 GE LAN ports)
- Related PoE supply: PWR-115W-AC (12 V 4.6 A and -53.5 V 1.12 A)
- Standard non-PoE ISR 1100 supply: PWR-66W-AC-V2 (12 VDC, 66W max)

FAQs

Q: Which routers is the PWR-150W-AC designed for?
A: It is designed for the Cisco 1000 Series Integrated Services Routers (ISR 1100 family), including 8-port models such as the C1111-8P and C112x-8P-class routers that need a 150W supply for optional PoE/PoE+.

Q: Does it require a licence or subscription?
A: No. It is a hardware power adapter and needs no licence or subscription.

Q: What power does it accept and deliver?
A: It accepts 100-240 VAC at 50-60 Hz, rated 2.5 A. Output is 12 VDC at 6.0 A for the system plus -53.5 VDC at 1.55 A for PoE, 150W in total.

Q: How does it differ from the 115W, 66W and 30W ISR 1100 adapters?
A: The 150W adapter provides the highest PoE rail at -53.5 V 1.55 A. The PWR-115W-AC supplies 12 V 4.6 A and -53.5 V 1.12 A, while the 66W and 30W adapters are standard supplies for ISR 1100 variants without the 150W PoE requirement.
