Cisco

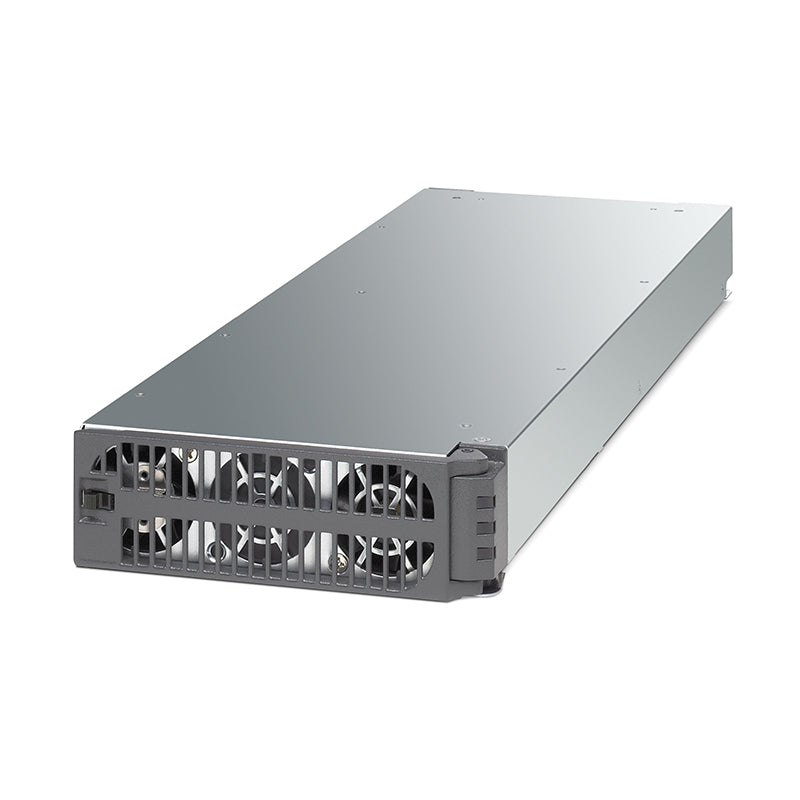

Cisco PWR-1.6KW-DC | ASR 9900 1.6kW DC Power Supply, -48 VDC Input

PWR-1.6KW-DC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PWR-1.6KW-DC is a 1.6 kW DC-input power module for the Cisco ASR 9900 fixed-chassis compact routers, such as the ASR 9903. It suits service provider and telecom sites that run on -48 VDC power and need to keep ASR 9900 aggregation and edge routers powered from a DC plant.

This variant takes a -48 VDC input and is the DC counterpart to the PWR-1.6KW-AC. Each module is rated at 1.6 kW, and an ASR 9903 chassis accepts up to four modules. With DC modules fitted, the chassis supports 2+2 power redundancy. AC and DC modules cannot be mixed in the same chassis, so a DC system should use DC modules only.

The ASR 9903 is supported from IOS XR 7.1.25, and the chassis operates at 5 to 40 C with front-to-back airflow. The AC alternative for the same chassis family is the PWR-1.6KW-AC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports N+N (2+2) DC power redundancy in the ASR 9903 chassis
- Hot-pluggable module for the ASR 9900 fixed chassis power slots
- Supports up to four power modules in the chassis
- Common 1.6 kW power module family with an AC equivalent, PWR-1.6KW-AC
- Suited to -48 VDC telecom and service provider power plants

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Module rating: 1.6 kW DC
- Input: -48 VDC nominal
- Modules per chassis (ASR 9903): up to 4
- Redundancy (DC): 2+2
- AC/DC mixing: Not supported
- Companion AC module: PWR-1.6KW-AC
- Chassis operating temperature (ASR 9903): 5 to 40 C (41 to 104 F)
- Chassis storage temperature (ASR 9903): -40 to 70 C (-40 to 158 F)
- Airflow (ASR 9903 chassis): Front to back

FAQs

Q: What input voltage does the PWR-1.6KW-DC use?
A: It is a DC module with a -48 VDC input, which is the standard supply in telecom and service provider facilities.

Q: How many power modules does an ASR 9903 take?
A: The ASR 9903 chassis supports up to four 1.6 kW power modules. With DC modules this gives 2+2 redundancy.

Q: Can I mix AC and DC power modules in the same chassis?
A: No. Mixing AC and DC power modules is not supported, so all modules in a chassis must be the same type.

Q: How does this differ from the PWR-1.6KW-AC?
A: The PWR-1.6KW-DC takes a -48 VDC input, while the PWR-1.6KW-AC runs from AC mains. Both are 1.6 kW modules for the ASR 9900 fixed chassis.

Q: Which chassis is this power supply used in?
A: It is a power supply option for the ASR 9900 compact fixed-chassis routers, including the ASR 9903, which is supported from IOS XR 7.1.25.
