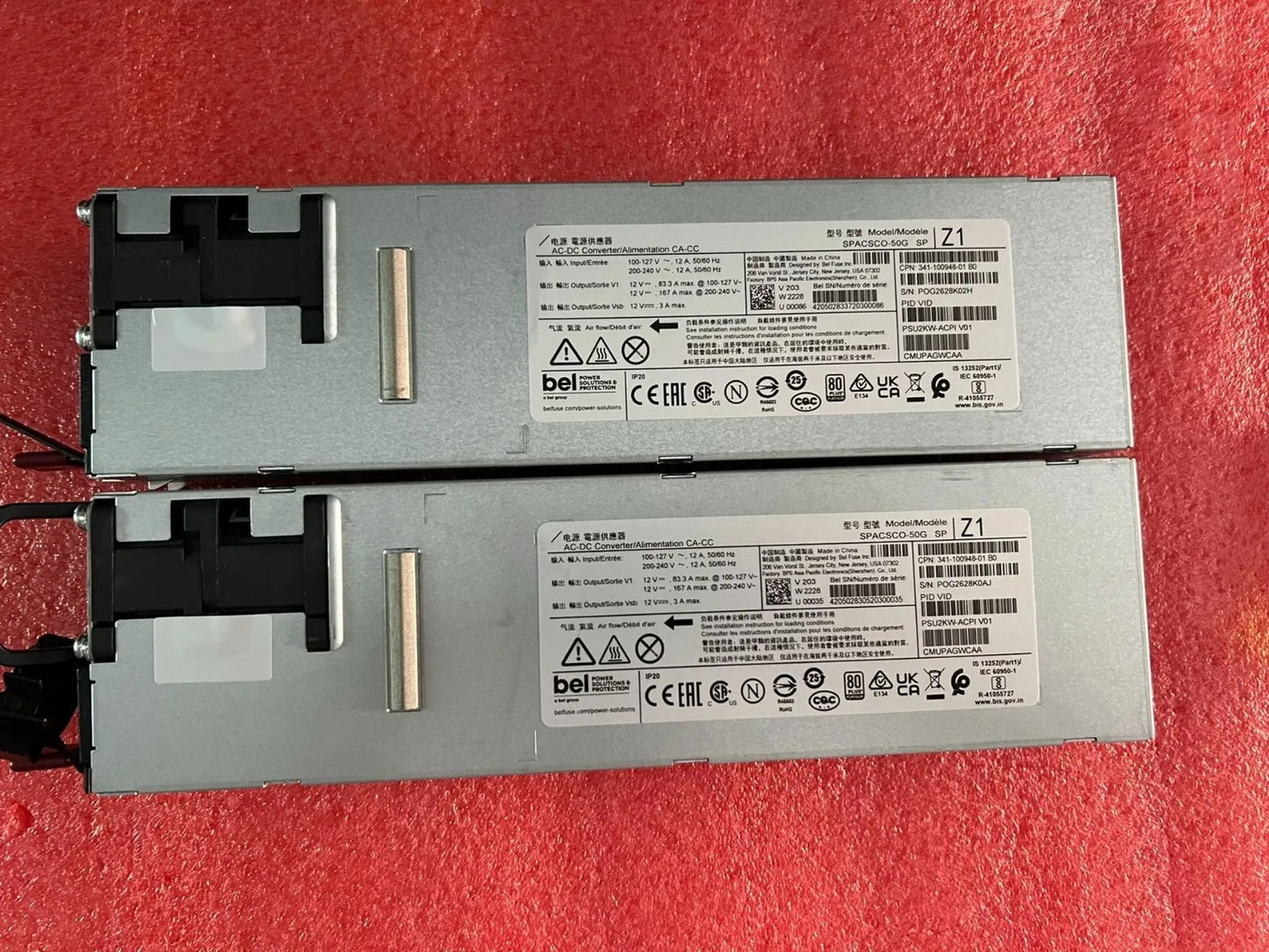

• Cisco 2000W AC PSU with silver unit, black connectors, white labels
1 1

Cisco

Cisco PSU2KW-ACPI | 2000W AC Hot-Swap Power Supply, Port-Side Intake

PSU2KW-ACPI

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PSU2KW-ACPI is a hot-swappable 2000W AC power supply module for Cisco fixed-port routers and switches. It has port-side air intake, so airflow runs from the port side to the rear, and it suits data centre, service provider and aggregation deployments where the cold aisle is at the port side.

It accepts 100-127V AC at 12A or 200-240V AC at 10A, 50/60Hz. The 12V DC output is 84A at low line, which is 1000W, and 167A at nominal line, which is 2000W. It is a field-replaceable unit and supports 1+1 redundancy in dual-PSU chassis, so a module can be swapped without taking the system offline.

The same module is shared across Cisco 8000 Series fixed routers (including the 8700 and 8100 families), NCS 5500 and NCS 5700 fixed-port platforms, Cisco 6000 Series switches and the Hyperfabric HF6100-32D. The airflow direction must match the chassis fan modules, so choose the port-side intake variant when the fans are port-side intake. AC and DC supplies, or port-side intake and port-side exhaust supplies, cannot be mixed in one chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable, field-replaceable power module
- 1+1 power redundancy in dual-PSU chassis
- Port-side air intake, matching port-side intake fan modules
- Supports both low-line 100-127V AC and nominal 200-240V AC input
- Shared across Cisco 8000, NCS 5500, NCS 5700 and Hyperfabric platforms
- Single feed with 2000W capacity at 12V DC output

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: PSU2KW-ACPI
- Type: 2000W AC power module
- Airflow: Port-side intake (front to rear)
- Input voltage, low line: 100-127V AC
- Input current, low line: 12A
- Max input power, low line: 1000W
- Output, low line: 12V DC at 84A
- Input voltage, nominal: 200-240V AC
- Input current, nominal: 10A
- Max input power, nominal: 2000W
- Output, nominal: 12V DC at 167A
- Input frequency: 50/60Hz
- Hot-swappable: Yes, field-replaceable unit
- Redundancy: 1+1 in supported dual-PSU chassis

FAQs

Q: Which Cisco platforms use the PSU2KW-ACPI?
A: It is used in Cisco 8000 Series fixed routers (including the 8700 and 8100 families), NCS 5500 and NCS 5700 fixed-port platforms, Cisco 6000 Series switches and the Hyperfabric HF6100-32D.

Q: What input power does it need?
A: It accepts 100-127V AC at 12A, delivering up to 1000W, or 200-240V AC at 10A, delivering up to 2000W, at 50/60Hz. Full 2000W capacity requires the 200-240V AC input.

Q: How does it differ from the PSU2KW-ACPE?
A: The PSU2KW-ACPI has port-side air intake, while the PSU2KW-ACPE has port-side exhaust. The airflow direction must match the chassis fan modules, and the two cannot be mixed in one chassis.

Q: Can I mix it with a DC power supply in the same chassis?
A: No. AC and DC power supplies cannot be mixed in one chassis. The DC counterpart of this module is the PSU2KW-DCPI.

Q: Can it be replaced while the system is running?
A: Yes. It is a hot-swappable field-replaceable unit, and in a dual-PSU chassis configured for 1+1 redundancy a module can be replaced without interrupting service.
