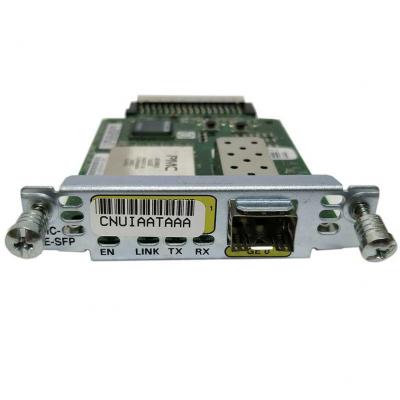

• Cisco PIM-8X1GE-SFP with silver SFP module and fiber ports
  • Cisco PIM-8X1GE-SFP with silver SFP module and fiber ports
1 2

Cisco

Cisco PIM-8X1GE-SFP | vEdge 2000 8x 1GE SFP Router Module

PIM-8X1GE-SFP

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PIM-8X1GE-SFP is a pluggable interface module for the Cisco SD-WAN vEdge 2000 router. It adds eight 1 Gbps SFP traffic ports to one of the chassis' two PIM slots, so you can tailor port density to each site. It suits branch, remote office, campus and data-centre perimeter SD-WAN deployments that need extra fibre or SFP copper WAN and LAN connections.

The module provides 8 x 1GE SFP ports. The vEdge 2000 chassis offers 4 x 1 Gbps SFP fixed ports plus two PIM slots, and the alternative PIM option is the PIM-2X10GE-SFP+ with 2 x 10GE SFP+ ports. Choose this 8 x 1GE SFP module when you need more gigabit port density rather than 10G uplinks. The module draws power from the host chassis, which has hot-swappable 1+1 redundant AC power supplies, so no separate power supply is needed.

The module works with the vEdge 2000 router only (VEDGE-2000-AC-K9). For the SFP cages, Cisco lists VIP-SFP-1GE-BASET, VIP-SFP-1GE-LX and VIP-SFP-1GE-SX optics. It is not compatible with the vEdge 5000, which uses NIM modules. The module itself needs no licence, while the router runs Cisco SD-WAN (Viptela) software managed through vManage, vBond and vSmart.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds 8 x 1GE SFP ports to the vEdge 2000 router for fibre or SFP copper connections
- Pluggable module design lets you tailor port density per chassis
- Runs the same Viptela OS functionality as other vEdge routers, which differ in throughput, redundancy and port density
- Supports Cisco SD-WAN features including OSPF, BGP, OMP, IPsec and app-aware routing
- Supports QoS, NAT/PAT and multicast through the host router software
- Powered from the vEdge 2000 chassis with 1+1 redundant hot-swappable power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Module SKU: PIM-8X1GE-SFP
- Module type: Pluggable Interface Module (PIM) for vEdge 2000
- Traffic ports provided: 8 x 1 Gbps SFP
- Host platform: vEdge 2000 (VEDGE-2000-AC-K9)
- vEdge 2000 chassis slots: 4 x 1 Gbps SFP fixed, 2 PIM slots
- PIM options for vEdge 2000: 2 x 10 Gbps SFP+ or 8 x 1 Gbps SFP
- Host memory: 8 GB DDR3 ECC
- Host NAND storage: 8 GB internal
- Host power supply: hot-swappable PSUs, 1+1 redundancy
- Host AC input: 90-264 Vrms, 47-63 Hz
- Host typical power consumption: 125 W
- Host rack height: 1 RU
- Host airflow: front to back
- Host operating temperature: 0 to 40 C at sea level
- Host operating humidity: 10 to 85% RH
- Host storage temperature: -40 to 70 C
- Host MTBF: 420K hours
- Safety compliance: AS/NZS 60950-1, UL60950-1, EN 60950-1, CE Marking
- EMC compliance: AS/NZS CISPR22 Class A, EN 55022 Class A, FCC Class A
- Environmental: RoHS

FAQs

Q: Does the PIM-8X1GE-SFP need a licence?
A: No, the module itself needs no licence. The vEdge 2000 router it installs in operates under Cisco SD-WAN (Viptela) software, managed through vManage, vBond and vSmart.

Q: Which router does this module fit?
A: It fits the Cisco vEdge 2000 router (VEDGE-2000-AC-K9) only. It is not compatible with the vEdge 5000, which uses NIM modules.

Q: Which SFP optics work in this module?
A: Cisco lists VIP-SFP-1GE-BASET (10/100/1000 BaseT), VIP-SFP-1GE-LX and VIP-SFP-1GE-SX for the vEdge 1GE SFP ports. The 10GE optics VIP-SFP+-10GE-LR and VIP-SFP+-10GE-SR are for 10G ports, not this 1GE module.

Q: How is this different from the PIM-2X10GE-SFP+?
A: This module provides 8 x 1GE SFP ports for higher gigabit port density. The PIM-2X10GE-SFP+ provides 2 x 10GE SFP+ ports for 10G connectivity.

Q: Does the module need its own power supply?
A: No. It is powered from the vEdge 2000 chassis, which has hot-swappable 1+1 redundant AC power supplies rated 90-264 Vrms at 47-63 Hz.
