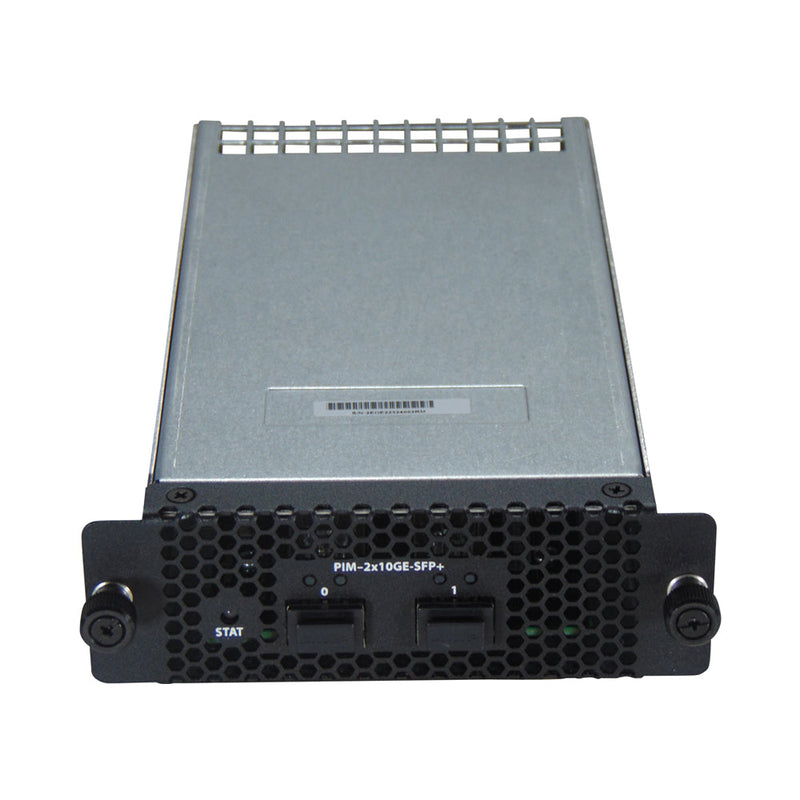

• Cisco PIM-2X10GE-SFP+ black rackmount server chassis with 2x 10GbE SFP+ ports

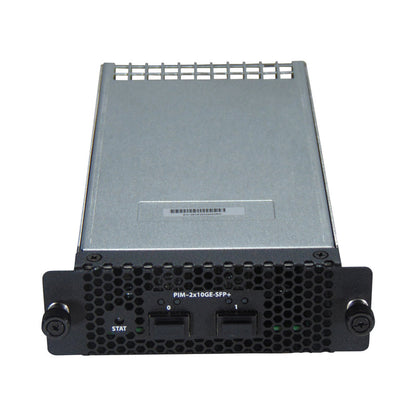

  • Cisco PIM-2X10GE-SFP+ black rackmount server with 2x 10GbE SFP+ ports
1 2

Cisco

Cisco PIM-2X10GE-SFP+ | vEdge 2000 2x 10GE SFP+ Router Interface Module

PIM-2X10GE-SFP+

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The PIM-2X10GE-SFP+ is a pluggable interface module for the Cisco vEdge 2000 SD-WAN router. It adds two 10 Gigabit Ethernet SFP+ ports, giving larger branch, regional hub and data-centre edge sites a 10GE WAN or LAN connection on the vEdge 2000 platform.

The module fits either PIM Slot 0 or PIM Slot 1 on the vEdge 2000, with no slot restriction. Two of these modules in one chassis provide four 10GE interfaces alongside the four fixed 1G SFP ports. It can also be paired with the 8x 1GE SFP module (PIM-8X1GE-SFP) for a combined layout of 2x 10GE and 12x 1GE interfaces, which is the main difference between the two modules.

The module draws power from the vEdge 2000 chassis and takes SFP+ transceivers such as the Cisco VIP-SFP+-10GE-LR. It is designed only for the vEdge 2000 and is not for the vEdge 100, 1000 or 5000 routers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds 10GE SFP+ uplink capacity to the vEdge 2000 SD-WAN router
- Modular design using the two PIM slots on the vEdge 2000
- Can be mixed with the 8x 1GE SFP PIM for combined 10GE and 1GE port layouts
- Installs in either PIM Slot 0 or PIM Slot 1
- Part of the Cisco SD-WAN vEdge family, which shares the same software functionality across platforms

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: PIM-2X10GE-SFP+
- Ports: 2 x 10 Gigabit Ethernet SFP+
- Form factor: Pluggable Interface Module (PIM)
- Host platform: Cisco vEdge 2000 router
- Host PIM slots: 2 (PIM Slot 0 and PIM Slot 1)
- Slot restriction: None, installs in either slot
- Two modules installed: 4 x 10GE plus 4 x 1GE fixed interfaces in total
- One module plus one PIM-8X1GE-SFP: 2 x 10GE plus 12 x 1GE interfaces in total
- Host fixed ports: 4 x 1 Gbps SFP
- Host AC input voltage: 90-264 Vrms, 47-63 Hz
- Host typical power consumption: 125 W
- Host operating temperature: 0 to 40 C at sea level, derated 1.5 C per 1000 ft up to 3000 m
- Host operating humidity: 10 to 85% RH
- Host storage temperature: -40 to 70 C
- Host rack height: 1 RU

FAQs

Q: Does this module need its own licence?
A: No licence is specified for the module itself. Licensing is handled at the platform level on the vEdge 2000 host router running Cisco SD-WAN software.

Q: How is it powered?
A: The module is powered by the vEdge 2000 chassis. The host has hot-swappable power supplies with 1+1 active-active redundancy and a 90-264 Vrms AC input.

Q: Which routers is it compatible with?
A: It is for the Cisco vEdge 2000 only, in PIM Slot 0 or PIM Slot 1. It is not for the vEdge 100, 1000 or 5000, and the vEdge 5000 uses NIM modules instead.

Q: Which optics does it take?
A: It takes SFP+ transceivers, such as the Cisco VIP-SFP+-10GE-LR 10GE LR.

Q: How does it differ from the PIM-8X1GE-SFP?
A: This module provides two 10GE SFP+ ports, while the PIM-8X1GE-SFP provides eight 1GE SFP ports. The two can be combined in one vEdge 2000 for 2x 10GE and 12x 1GE interfaces.

Q: How many 10GE ports can a vEdge 2000 have?
A: With two PIM-2X10GE-SFP+ modules installed, a vEdge 2000 provides four 10GE interfaces in addition to its four fixed 1G SFP ports.
