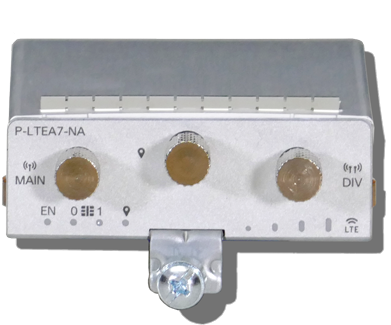

• White plastic cisco p-ltea7-eal industrial control module with three gold rotary knobs and silver mounting bracket

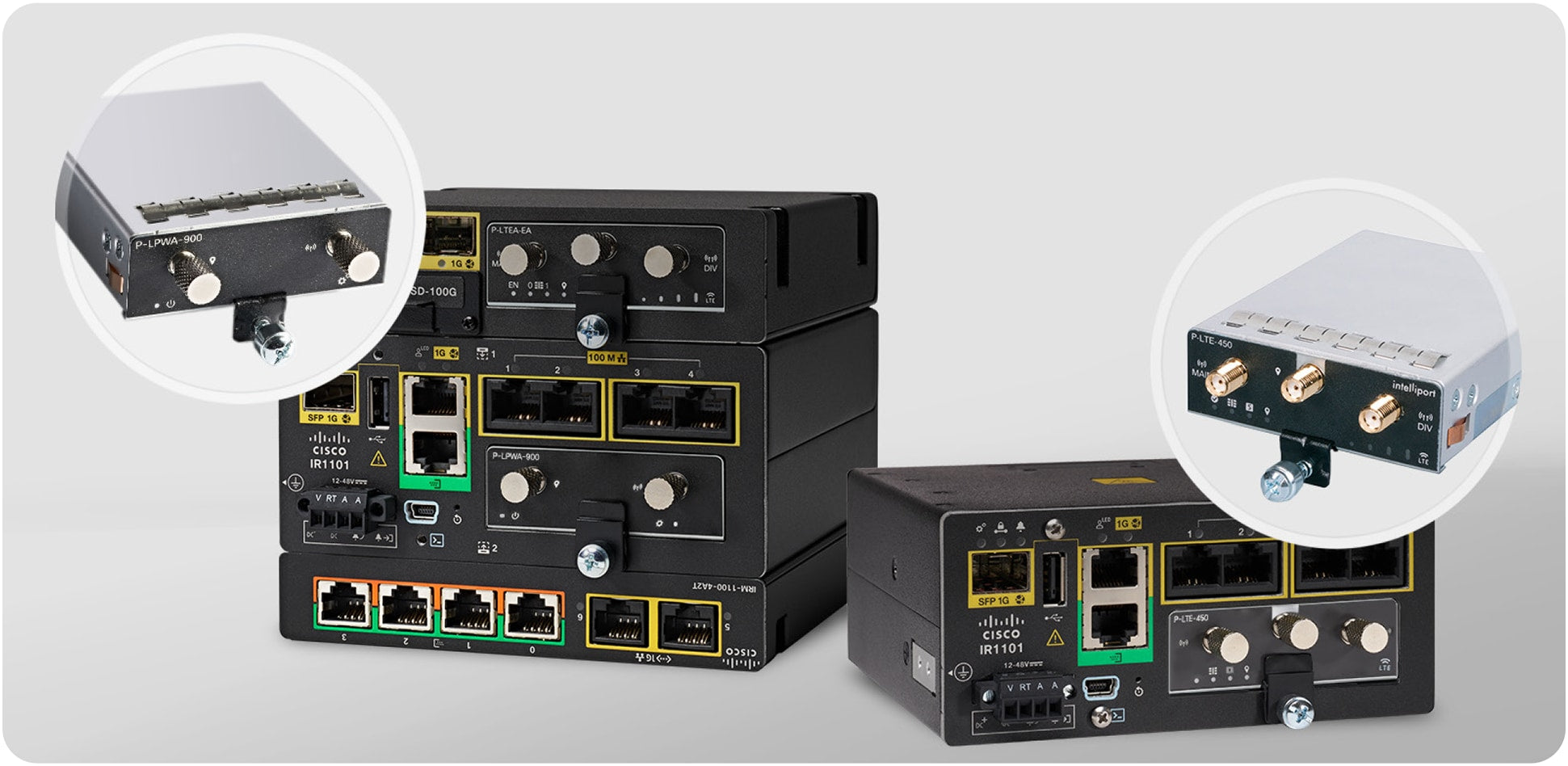

  • Cisco P-LTEA7-EAL LTE Cat7 Advanced PIM network switch with ethernet ports
  • Cisco P-LTEA7-EAL LTE Cat7 Advanced PIM network switch with Ethernet ports
1 3

Cisco

Cisco P-LTEA7-EAL | Cat7 LTE Advanced Module, EMEA/APAC/LATAM, EM7421

P-LTEA7-EAL

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The P-LTEA7-EAL is a Cat7 LTE Advanced pluggable interface module (PIM) that adds cellular WAN connectivity to Cisco routers with a PIM slot. It suits enterprise branch offices, small and midsize businesses and managed-service deployments that need a primary or backup cellular uplink across Europe, the Middle East, Africa, Asia-Pacific and Latin America.

This EMEA, APAC and LATAM variant is based on the EM7421 modem and delivers up to 300 Mbps downlink and 150 Mbps uplink. It covers LTE bands 1, 3, 7, 8, 20, 28, 32, 38 and 40-43, with 3G HSPA+ fallback on bands 1, 5 and 8. A carrier SIM and data plan are required for cellular service. The module is intended for indoor use only.

It is powered from the host router's PIM slot and is field-replaceable, so the cellular technology can be upgraded without replacing the router. It works with the Cisco 1000 Series ISR (C1101-4PLTEP family), Catalyst 8200 and 8300 Series, and the IR1100 and IR8300 rugged routers. Regional versions for North America (P-LTEA7-NA) and Japan (P-LTEA7-JP) are separate part numbers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Pluggable LTE Advanced Cat7 module that fits the PIM slot of supported Cisco routers
- Field-replaceable, so cellular technology can be upgraded without replacing the router
- Suited to enterprise branch offices and service-provider managed CPE environments
- Up to 300 Mbps downlink and 150 Mbps uplink over LTE Advanced
- 3G HSPA+ fallback on bands 1, 5 and 8
- Covered by EU Directive 2014/53/EU compliance documentation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product number: P-LTEA7-EAL
- Description: CAT7 LTE Advanced Pluggable, EMEA, APAC and LATAM
- LTE category: Cat7 (LTE Advanced)
- Maximum data rate: 300 Mbps downlink / 150 Mbps uplink
- LTE bands: 1, 3, 7, 8, 20, 28, 32, 38, 40-43
- 3G HSPA+ bands: 1, 5, 8
- Embedded modem: EM7421
- Region: EMEA, APAC, LATAM
- Form factor: Pluggable Interface Module (PIM)
- Compatible platforms: Catalyst 8200 (C8200-1N-4T, C8200L-1N-4T), Catalyst 8300 (C8300-1N1S-4T2X, C8300-1N1S-6T, C8300-2N2S-4T2X, C8300-2N2S-6T), ISR1100 / C1101-4PLTEP(W)
- Deployment: indoor use only

FAQs

Q: Does this module need a software licence?
A: No separate software licence is required. A carrier SIM and data plan are needed to activate cellular service.

Q: How is the module powered?
A: It is powered from the host router's PIM slot, so no separate power supply is needed.

Q: Which Cisco routers does it work with?
A: It is supported on Catalyst 8200 (C8200-1N-4T, C8200L-1N-4T), Catalyst 8300 (C8300-1N1S-4T2X, C8300-1N1S-6T, C8300-2N2S-4T2X, C8300-2N2S-6T), the ISR1100 C1101-4PLTEP family, and the IR1100 and IR8300 rugged routers.

Q: How does this differ from the North America and Japan versions?
A: The P-LTEA7-EAL is the EMEA, APAC and LATAM variant with the EM7421 modem and the band set for those regions. North America uses P-LTEA7-NA and Japan uses P-LTEA7-JP.

Q: Can it be used outdoors?
A: No. This module is intended for indoor use only.
