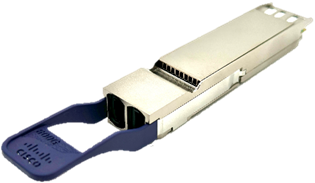

Cisco OSFP-800G-VR8 | OSFP 800G Transceiver, VR8, Dual MPO-12 APC, 50m MMF
SKU:OSFP-800G-VR8
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is an 800G OSFP optical transceiver with an integrated heat sink, built for short-reach parallel multimode fibre links. It suits switch-to-switch connections inside AI and data-centre fabrics, and it also fits 800G-to-2x400G, 4x200G or 8x100G breakout links.
It runs 800GBASE-VR8 to IEEE 802.3 over eight fibre pairs at 850 nm, with one wavelength per lane. Reach is 30 m over OM3 and 50 m over OM4 or OM5 multimode fibre. The connectors are dual MPO-12 APC, which is what separates this module from the MPO-16 APC version, OSFP-800G-VR8P. It draws 12.9 W typical and 16 W maximum from the host port, and operates from 0 to 70 C.
It is supported on Cisco switches and routers with OSFP 800G ports and needs patch cords with angled-physical-contact MPO connectors. No licence or subscription is required. Forward error correction is performed on the host platform.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-swappable module for Cisco OSFP 800G ports
- Compliant with IEEE 802.3 800GBASE-VR8 and the OSFP MSA
- Eight pairs of parallel lanes, one wavelength per lane
- Breakout support to 2x400G, 4x200G and 8x100G links
- Compliant with OIF CMIS 5.3, with field firmware upgrades via the CMIS 5.3 process
- Versatile Diagnostic Monitoring (VDM) supported by default firmware
- Interoperable with IEEE-compliant 800GE, 400GE, 200GE and 100GE interfaces where applicable
- RoHS 6 compliant
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details

What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product ID: OSFP-800G-VR8
- Form factor: OSFP with integrated closed-top heat sink
- Standard: 800GBASE-VR8 (IEEE 802.3)
- Data rate: 800GE
- Breakout: 2x 400GBASE-VR4, 4x 200GBASE-VR2, 8x 100GBASE-VR1
- Nominal wavelength: 850 nm
- Wavelength range: 842-948 nm
- Cable type: Parallel multimode fibre, 50 micron core
- Reach: 30 m (OM3), 50 m (OM4/OM5)
- Modal bandwidth: 2000 (OM3), 4700 (OM4), 4700 (OM5) MHzkm
- Optical connector: Dual MPO-12 APC
- Host electrical interface: 800GAUI-8
- Average transmit power per lane: -4.6 to 4 dBm
- Average receive power per lane: -6.3 to 4 dBm
- Maximum supported insertion loss: 1.6 dB (OM3), 1.7 dB (OM4/OM5)
- Pre-FEC BER: 2.4x10-4
- Power consumption: 12.9 W typical, 16 W maximum
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Dimensions with pull tab (H x W x D): 13 x 22.58 x 116 mm maximum
- Weight: 100 g maximum
- Pull tab colour: Purple
- Laser class: 1
FAQs
Q: Does this transceiver need a licence or subscription?
A: No. No licence or subscription is required to use it in a supported OSFP 800G port.
Q: What patch cords does it need?
A: It uses dual MPO-12 connectors and requires patch cords with angled-physical-contact (APC) MPO ends, over OM3, OM4 or OM5 multimode fibre.
Q: How does it differ from OSFP-800G-VR8P?
A: OSFP-800G-VR8 uses dual MPO-12 APC connectors. OSFP-800G-VR8P uses a single MPO-16 APC connector, so the cabling is not interchangeable.
Q: How much power does it draw?
A: It draws 12.9 W typical and 16 W maximum from the host OSFP port. No separate power supply is needed.
Q: What distance does it reach?
A: 30 m over OM3 multimode fibre and 50 m over OM4 or OM5 multimode fibre.
Q: Can it break out to lower speeds?
A: Yes. It supports breakout to 2x 400GBASE-VR4, 4x 200GBASE-VR2 or 8x 100GBASE-VR1, subject to the host platform and the far-end optics.
