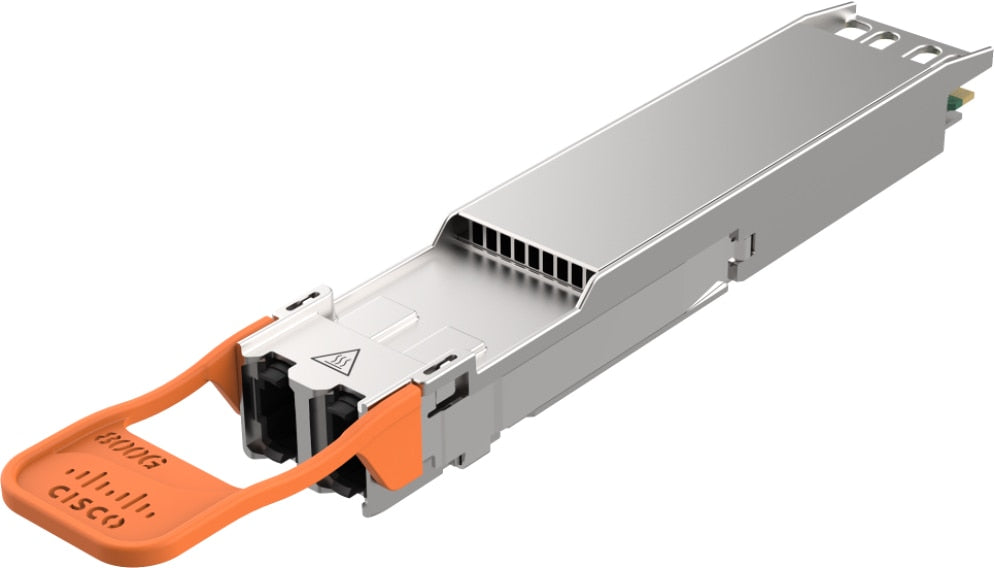

Cisco OSFP-800G-DR8 | OSFP 800G Transceiver, DR8, SMF, 500m, Dual MPO-12 APC

SKU:OSFP-800G-DR8

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The OSFP-800G-DR8 is a hot-swappable 800GBASE-DR8 optic from the Cisco OSFP 800G transceiver range, built for AI front-end and back-end networks, data centre and high-performance computing fabrics, enterprise core and distribution layers, and service provider applications. It uses an OSFP form factor with an integrated closed-top heat sink.

The module runs at 1310 nm over parallel single-mode fibre (G.652) with eight fibre pairs and reaches up to 500m. It connects through dual MPO-12 APC connectors and presents an 800GAUI-8 electrical interface to the host. Breakout is supported as 2x400GBASE-DR4, 4x200GBASE-DR2 or 8x100GBASE-DR1, which raises port density on the far end. Power draw is 14.2 W typical and 16 W maximum, or 17 W maximum with VDM operating. No licence or subscription is required.

This SKU uses two MPO-12 APC ports, while the sibling OSFP-800G-DR8P uses a single MPO-16 APC. The MPO ports are male/pinned, so patch cords need APC polish with female/unpinned ends on the cable side. It interoperates with IEEE-compliant 800GBASE-DR8, 400GBASE-DR4, 200GBASE-DR2 and 100GBASE-DR1 optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hot-swappable I/O device that plugs into a Cisco 800GE OSFP port
- Interoperable with other IEEE-compliant 800GE, 400GE, 200GE and 100GE interfaces
- Breakout capability to multiple 100GE, 200GE and 400GE interfaces for higher port density
- Complies with IEEE 802.3, the OSFP MSA and OIF CMIS 5.3
- Field firmware upgradeable per the CMIS 5.3 process
- Firmware supports Versatile Diagnostic Monitoring (VDM)
- FEC is performed on the host platform
- Compliant with Class 1 laser safety, RoHS 6 and NEBS standards

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product ID: OSFP-800G-DR8
- Form factor: OSFP with integrated closed-top heat sink
- Nominal data rate: 800GE
- High-speed electrical interface: 800GAUI-8
- Standard: IEEE 802.3 800GBASE-DR8
- Breakout modes: 2x400GBASE-DR4, 4x200GBASE-DR2, 8x100GBASE-DR1
- Nominal wavelength: 1310 nm
- Cable type: parallel single-mode fibre (G.652), 8 fibre pairs
- Link distance: 500m
- Optical connector: Dual MPO-12 APC (male/pinned)
- Pull tab colour: Orange
- Power consumption (typical): 14.2 W
- Power consumption (max): 16 W (17 W with VDM operating)
- Average transmit power per lane: -2.9 dBm min, 4 dBm max
- Average receive power per lane: 4 dBm max
- Maximum supported insertion loss: 3 dB
- Pre-FEC BER: 2.4x10-4
- Module dimensions with pull tab (H x W x D): 13 x 22.58 x 116 mm max
- Module weight: 100 g max
- Operating temperature: 0 to 70 C (32 to 158 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Laser class: Class 1

FAQs

Q: Does the OSFP-800G-DR8 need a licence or subscription?
A: No. It is powered by the host OSFP port and no licence or subscription is required.

Q: What patch cords does it need?
A: It needs APC-polish MPO patch cords. The module's MPO ports are male/pinned, so the cable side must be female/unpinned.

Q: How does it differ from the OSFP-800G-DR8P?
A: This SKU uses dual MPO-12 APC connectors. The OSFP-800G-DR8P is a separate SKU that uses a single MPO-16 APC connector.

Q: Which platforms does it work with?
A: It is supported on Cisco switches and routers with OSFP 800G ports. Cisco reference designs show it used with Nexus 9000 N9364E-SG2-O switches for 800G-to-400G connections over dual MPO-12 cabling. Check the Cisco Transceiver Modules Compatibility Matrix for exact platforms.

Q: Can it break out to lower speeds?
A: Yes. It supports 2x400GBASE-DR4, 4x200GBASE-DR2 and 8x100GBASE-DR1 breakout, and interoperates with IEEE-compliant optics at those speeds.

Q: How much power does it draw?
A: It draws 14.2 W typical and 16 W maximum, or 17 W maximum with VDM operating.
