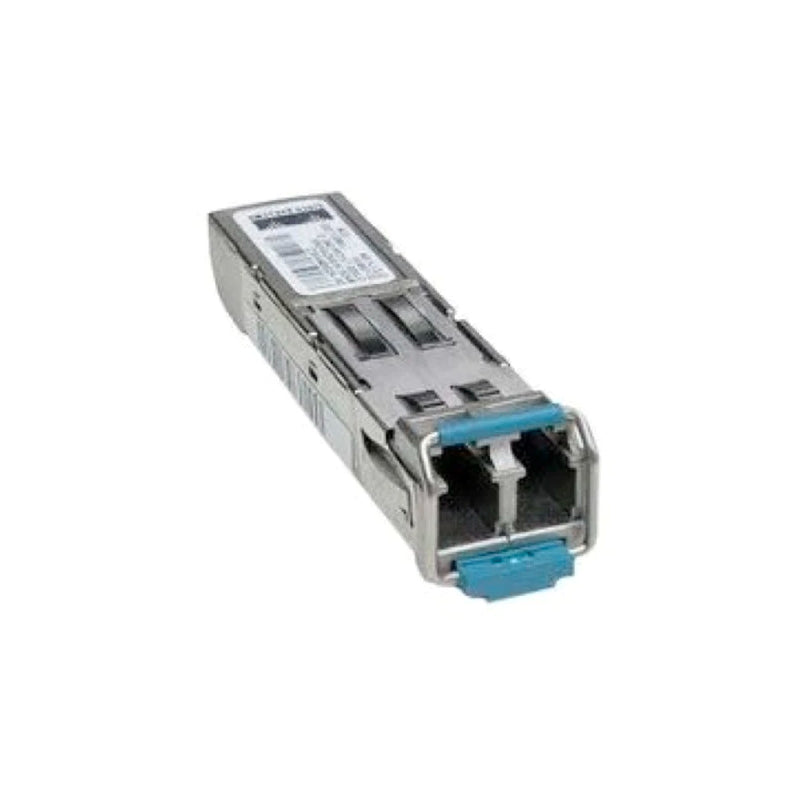

• Cisco ONS-SC+-10GEP56.1 10GbE DWDM SFP+ transceiver with blue connectors
1 1

Cisco

Cisco ONS-SC+-10GEP56.1 | 10GbE DWDM SFP+, 1556.15 nm, up to 80 km, LC SMF, ITU 100 GHz

ONS-SC+-10GEP56.1

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

High-density 10GbE DWDM SFP+ transceiver for long-reach single‑mode links. Fixed ITU-T grid wavelength at 1556.15 nm with up to 80 km reach (link-budget dependent), LC duplex interface, hot-pluggable, and digital diagnostics for streamlined operations. Ideal for metro and long-haul DWDM networks where channelized 10G capacity is required.

Features

- Long-reach 10GbE up to 80 km for metro/long-haul DWDM transport
- Fixed ITU 100 GHz channel for high-density wavelength planning
- LC duplex interface for streamlined patching
- DOM-enabled for proactive monitoring and troubleshooting
- Hot-pluggable SFP+ simplifies sparing and serviceability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: SFP+ (hot-pluggable, MSA compliant)
- Data rate: 10 Gbps (10GbE)
- Optical type: DWDM, ITU-T G.694.1 C-band, 100 GHz spacing
- Wavelength: 1556.15 nm (fixed channel)
- Reach: Up to 80 km over single-mode fiber (OS2), link-budget dependent
- Fiber/cable: Single-mode (G.652/OS2 recommended)
- Connector: LC duplex
- Digital diagnostics (DOM/DDM): Supported (temperature, TX/RX power, voltage)
- Compliance: SFF-8431, SFF-8472, Class 1 laser safety
- Application: 10GbE over DWDM systems with multiplexers/amplifiers/dispersion management as required

FAQs

Q: Is this module tunable?
A: No. It is a fixed-wavelength DWDM SFP+ at 1556.15 nm on the ITU 100 GHz grid.

Q: What fiber and connector does it require?
A: Single-mode fiber (OS2) with an LC duplex connector.

Q: What is the maximum reach?
A: Up to 80 km depending on optical budget, span loss, and use of DWDM amplifiers and dispersion management.

Q: Does it support digital diagnostics?
A: Yes, DOM/DDM is supported for monitoring optical and module parameters.

Q: Will it work in any 10G SFP+ port?
A: It is intended for 10GbE SFP+ ports that support DWDM optics and the required link budgets.
