Cisco

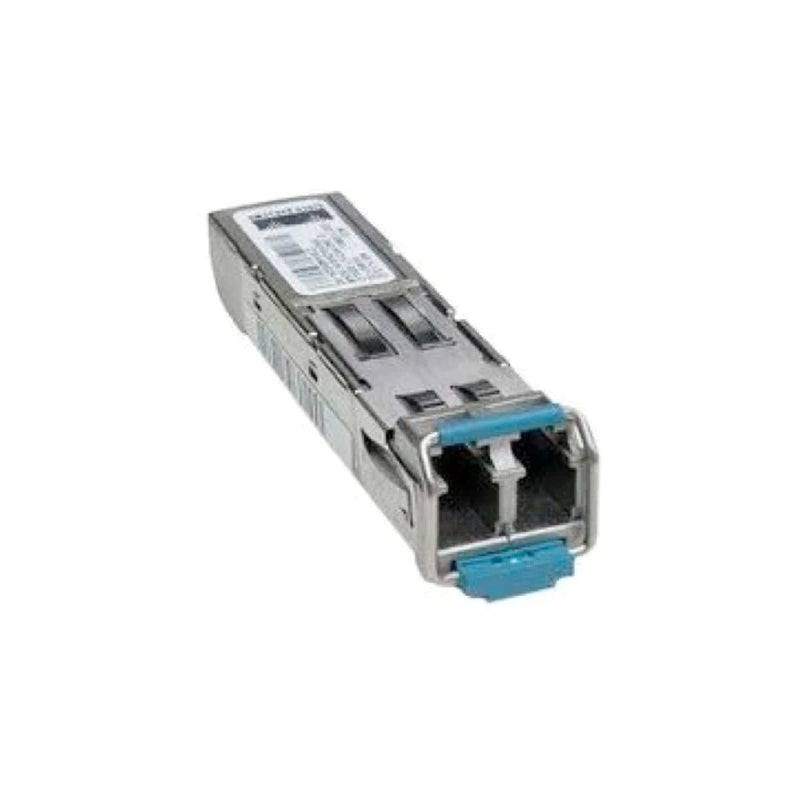

Cisco ONS-SC+-10GEP52.5 | 10G SFP+ | DWDM ITU-T G.694.1 100GHz | 1552.52 nm | 80 km SMF | LC duplex

SKU:ONS-SC+-10GEP52.5

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density 10G DWDM SFP+ transceiver for long-reach metro and backbone links. Fixed 1552.52 nm ITU channel on the 100 GHz grid, supporting up to 80 km over OS2 single‑mode with LC duplex. Hot‑swappable with DDM/DOM for real‑time diagnostics; ideal for 10G Ethernet transport on DWDM systems.

Features

- Fixed 1552.52 nm ITU 100 GHz DWDM channel (grid center)
- Up to 80 km reach over OS2 SMF
- Low‑power, hot‑swappable SFP+
- DOM/DDM for proactive monitoring
- LC duplex connector, C‑band operation
- Designed for scalable DWDM aggregation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this optic centered on the ITU grid?
A: Yes, 1552.52 nm aligns to the 193.10 THz ITU 100 GHz grid center within the C‑band.

Q: What applications is it best suited for?
A: 10G Ethernet transport over DWDM mux/demux systems in metro, campus backhaul, and regional links.

Q: Do I need special patch cords?
A: Standard LC‑LC OS2 single‑mode patch cords are recommended.

Q: Can it run in the same chassis with other DWDM channels?
A: Yes, each transceiver uses a fixed ITU channel and can coexist with other channels on the same DWDM system.

Q: Does it support live insertion and removal?
A: Yes, it is hot‑swappable in compliant SFP+ slots.

Technical Specifications

- Form factor: SFP+
- Data rate: 10.3125 Gb/s (10G Ethernet)
- Wavelength: 1552.52 nm (DWDM C‑band, grid center)
- DWDM grid: ITU‑T G.694.1, 100 GHz spacing
- Optical reach: up to 80 km over G.652/OS2 SMF (link engineering required)
- Connector: LC duplex
- Tx/Rx optics: EML transmitter, APD receiver
- Digital diagnostics (DDM/DOM): supported
- Typical link budget: ~23 dB (Tx ~0 to +5 dBm; Rx sens ~−23 dBm; overload ~−7 dBm)
- Operating temperature: 0 to +70 °C (commercial)
- Fiber type: Single‑mode (OS2)
