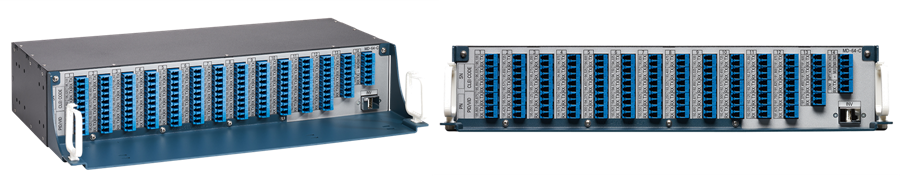

Cisco NCS1K-MD-64-C | DWDM 64‑ch (Odd) C‑band | passive mux/demux patch panel

SKU:NCS1K-MD-64-C

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High‑density passive DWDM mux/demux patch panel presenting 64 odd ITU channels across the C‑band. Consolidates large wavelength counts over a single fiber pair for efficient transport with no power or cooling requirements. Ideal for scale‑out optical builds and expansion in metro, backbone, and DCI environments.

Features

- High‑density 64 odd ITU channels for maximum C‑band utilization
- Passive, zero‑power operation for reliable, maintenance‑light deployments
- Patch‑panel format for straightforward rack integration
- Standards‑aligned with ITU‑T DWDM channel plans
- Scales easily alongside even‑channel panels
- Suitable for metro, backbone, and DCI networks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this unit require an external power source?
A: No. It is a passive optical device and operates without power.

Q: Which channel plan does it use?
A: It provides odd ITU DWDM channels across the C‑band. Use with optics aligned to the same plan and grid as specified by the deployment design.

Q: Can it be combined with an even‑channel panel?
A: Yes. Pairing with an even‑channel mux/demux increases overall channel capacity.

Q: Is it suitable for long‑haul links?
A: Yes, within optical budget constraints and when used with appropriate amplification/line system components.

Technical Specifications

- Type: Passive DWDM mux/demux patch panel
- Channel count: 64
- Channel plan: Odd ITU channels
- Optical band: C‑band
- Operation: Aggregates/splits 64 wavelengths over a common fiber interface
- Power: None (passive component)
- Compatibility: ITU‑T G.694.1 DWDM optics and NCS 1000 line systems
- Deployment: Rack‑mount patch panel applications
- Use cases: Metro core, long‑haul, data center interconnect
- Scalability: Complements even‑channel panels to maximize spectrum utilization
