Cisco

Cisco N560-IMA-8Q/4L-V | NCS 560 8x10/25G or 4x50G Module, Volume-Based FCM

SKU:N560-IMA-8Q/4L-V

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

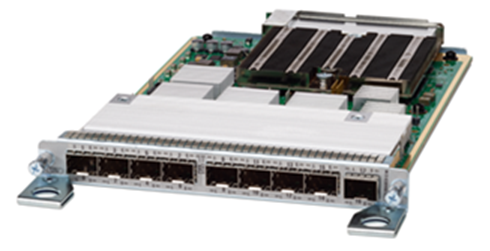

The N560-IMA-8Q/4L-V is an Ethernet-only interface module for the Cisco NCS 560 Series, built for service provider access, aggregation and metro Ethernet, mobile backhaul and residential broadband networks that need dense 10/25/50G ports. It is a single-width, single-height module that gives each slot eight pluggable 10GE SFP+ or 25GE SFP28 ports, or four 50GE SFP56 ports.

The eight ports are split into two quads of four, with the speed set per quad, so a single module can mix 10G, 25G and 50G operation depending on the host chassis and slot. It draws 42 W typical and 50 W maximum from the chassis backplane with no separate power input. This is the volume-based discount PID of the standard N560-IMA-8Q/4L, sold under the Flexible Consumption Model and ready for Smart Licensing.

It is supported in the NCS 560-4 and NCS 560-7 running IOS XR, with full speed-mode support from IOS XR 7.9.1 on the NCS 560-4. It is also supported in the ASR 903 and ASR 907 on IOS XE 17.8.1 or later, where it defaults to 8x10G. Optics, DAC and AOC cables are selected separately from the Cisco optics compatibility matrices.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Mixed-rate operation per quad of 10G, 25G and 50G
- Pluggable SFP+, SFP28 and SFP56 optics for flexible reach and media
- Supported across NCS 560-4, NCS 560-7 and ASR 900 platforms, depending on software
- Flexible Consumption Model licensing, Smart Licensing ready
- Volume-based discount PID, functionally the same as N560-IMA-8Q/4L
- Powered from the host chassis backplane with no separate power input

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Form factor: Single-width, single-height interface module (NCS 560 IM)
- Port configuration: 8-port 10GE (SFP+) / 25GE (SFP28) or 4-port 50GE (SFP56)
- Module type: Ethernet only interface module
- Port grouping: 8 ports in two quads of 4, speed set per quad
- Power consumption: 42 W typical, 50 W maximum
- Shipment weight: 2.18 lbs
- MTBF: 2,193,700 hours
- Transceiver types: SFP+ (10G), SFP28 (25G), SFP56 (50G)
- NCS 560-4 slots 0 and 1: 8x10G, 4x50G, 4x10G + 4x25G, 4x10G + 2x50G, or 4x25G + 2x50G; default 8x25G (IOS XR 7.9.1+)
- NCS 560-4 slots 2 and 3: 8x10G or 2x50G + 4x10G; default 4x25G + 4x10G (IOS XR 7.9.1+)
- NCS 560-4 slots 4 and 5: 8x10G default
- NCS 560-7 slots 0 and 1: 8x25GE, 8x10GE, 4x50GE, 4x25GE + 4x10GE, 2x50GE + 4x10GE, 4x25GE + 2x50GE
- NCS 560-7 slots 2 and 3: 8x10GE, 4x25GE + 4x10GE, 2x50GE + 4x10GE
- NCS 560-7 slots 4 and 5: 8x10GE mode only
- ASR 907 supported slots: 3, 4, 7, 8, 11, 12 (IOS XE 17.8.1+, default 8x10G)
- Minimum software: Cisco IOS XR 7.4.1
- Licensing model: Flexible Consumption Model (FCM), Smart Licensing ready

FAQs

Q: How does the -V part differ from the standard N560-IMA-8Q/4L?
A: The -V PID is the volume-based discount variant of N560-IMA-8Q/4L. It is functionally the same module and is sold under the Flexible Consumption Model.

Q: Which licensing model does this module use?
A: It is sold under the Cisco Flexible Consumption Model and is ready for Smart Licensing.

Q: Which chassis does it work in?
A: It is supported in the NCS 560-4 and NCS 560-7 on IOS XR, and in the ASR 903 and ASR 907 with RSP3 on IOS XE 17.8.1 or later.

Q: How much power does it draw?
A: It draws 42 W typical and 50 W maximum from the host chassis backplane. It has no separate power input.

Q: Can I run 10G, 25G and 50G ports on the same module?
A: Yes, within the slot limits of the host chassis. The eight ports are grouped into two quads and the speed is set per quad. Full 50G speed-mode support on the NCS 560-4 needs IOS XR 7.9.1 or later.

Q: Which optics does it use?
A: It takes SFP+ (10G), SFP28 (25G) and SFP56 (50G) transceivers, plus DAC and AOC cables. Check the Cisco Optics-to-Device Compatibility Matrix for specific part numbers.
