Cisco

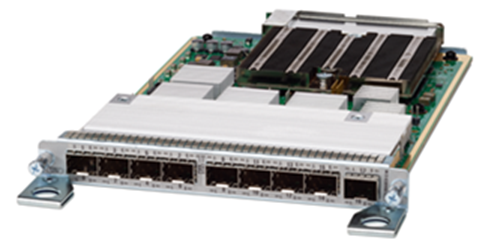

Cisco N560-IMA-8Q/4L | NCS 560 Interface Module, 8x 10/25G or 4x 50G, FCM SL

SKU:N560-IMA-8Q/4L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The N560-IMA-8Q/4L is a hot-swappable interface module for the Cisco NCS 560 series of routers. It suits service provider aggregation and access networks that deliver residential and business Ethernet services and Carrier Ethernet business services as part of the Cisco Evolved Programmable Network architecture.

The module provides eight SFP+ / SFP28 ports that run at 10GE or 25GE, and it can also be run as 4 x 50GE SFP56. Supported port modes include 8x25GE, 8x10GE, 4x50GE, 4x25GE+4x10GE, 2x50GE+4x10GE and 4x25GE+2x50GE, depending on the chassis slot. Power draw is 42 W typical and 50 W maximum, supplied from the chassis. This SKU is sold under the Flexible Consumption Model (FCM SL). It does not support WAN or OTN modes.

It is supported in NCS 560-4 and NCS 560-7 chassis and requires IOS XR 7.4.1 or later. Compatible 10G SFP+, 25G SFP28 and 50G SFP56 optics are listed in the Cisco TMG Compatibility Matrix and the NCS 560 Optics Matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Eight 10GE SFP+ or 25GE SFP28 ports, with 4 x 50GE SFP56 operation also supported
- Multiple mixed-rate port modes depending on chassis slot
- OIR field-replaceable optics
- Single interface module software reset without affecting other modules
- Rolling software upgrade, interface module by interface module
- Supports Cisco Evolved Programmable Network services over IP/MPLS, MPLS-TE, SR, SR-TE and TI-LFA
- Supports network synchronisation including IEEE 1588-2008 and ITU-T G.8275.1/G.8275.2

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Port density: 8 x 10GE SFP+ / 25GE SFP28, or 4 x 50GE SFP56
- Port modes: 8x25GE, 8x10GE, 4x50GE, 4x25GE+4x10GE, 2x50GE+4x10GE, 4x25GE+2x50GE (slot dependent)
- WAN and OTN modes: not supported
- Licensing: Flexible Consumption Model (FCM SL)
- Power draw: 42 W typical, 50 W maximum
- First supported software: IOS XR 7.4.1
- Operating temperature (commercial-temperature optics, up to 1800 m): 0 to 50 C
- Operating temperature (industrial-temperature optics, up to 1800 m): -40 to 65 C
- Operating temperature (industrial-temperature optics, up to 4000 m): up to 40 C
- Relative humidity: 5 to 95%, noncondensing
- Storage environment: -40 to 70 C, altitude 4570 m
- MTBF at 40 C operating temperature: 2,193,700 hours
- Shipment weight: 2.18 lbs
- Shipment package size (LxWxH): 15.44 x 9.44 x 4.31 inches
- Safety: UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IEC 60950-1, EN 60950-1, AS/NZS 60950.1:2003
- EMC: FCC CFR47 Part 15 Class A, EN55022 Class A, CISPR22 Class A, ICES-003 Class A, EN 300 386 Class A, VCCI Class A, KN22 Class A
- Synchronisation: IEEE 1588-2008, ITU-T G.8261/Y.1361, G.8262, G.8264, G.8265.1, G.8275.1, G.8275.2

FAQs

Q: Which licensing model does this module use?
A: It is sold under Cisco's Flexible Consumption Model (FCM SL). This is what distinguishes it from other 8-port NCS 560 interface module SKUs.

Q: Which chassis and software does it require?
A: It is supported in NCS 560-4 and NCS 560-7 chassis and requires IOS XR 7.4.1 or later.

Q: Do all slots support every port mode?
A: No. In the NCS 560-4, slots 0 and 1 support the full set of modes including 8x25GE and 4x50GE, slots 2 and 3 support 8x10GE, 4x25GE+4x10GE and 2x50GE+4x10GE, and slots 4 and 5 support 8x10GE only. In the NCS 560-7, slots 0/7 and 0/9 support the full set and slots 0/4, 0/5, 0/10 and 0/11 support 8x10GE only.

Q: How much power does the module draw?
A: It draws 42 W typical and 50 W maximum, powered from the NCS 560 chassis with no separate power supply.

Q: Does it support WAN or OTN modes?
A: No. The module provides Ethernet ports only and does not support WAN or OTN modes.
