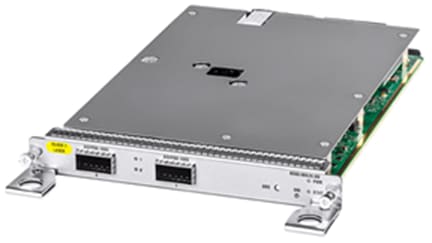

Cisco N560-IMA-2C-V | NCS 560 2-Port 100G QSFP28 Interface Module, Flexible Consumption

N560-IMA-2C-V

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The N560-IMA-2C-V is a 2-port 100 Gigabit Ethernet QSFP28 interface module for the Cisco NCS 560 Series routers. It is built for metro Carrier Ethernet aggregation and for delivering residential and business Ethernet services over IP/MPLS and Segment Routing transport.

Each module provides two QSFP28 ports that also accept 40GE QSFP+ optics. Port modes include 2 x 100GE, 2 x 40GE, or 1 x 100GE plus 1 x 40GE. The module draws 52 W typical and 59 W maximum from the chassis, with no separate power input, and supports Online Insertion and Removal. It is part of the Flexible Consumption model for NCS 560 interface modules, and this -V PID is the volume-based discounting variant.

It installs in NCS 560-4 slots 0 to 3 and NCS 560-7 slots 7 and 9, running Cisco IOS XR 6.6.25 or later. Hardware time stamping, SyncE and IEEE 1588-2008 support suit timing-sensitive mobile and business service deployments.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Highest performance per slot on NCS 560 systems using two pluggable 100GE QSFP28 or 40GE QSFP+ optics
- Hardware time stamping for Y.1731 OAM delay measurement and IEEE 1588-2008
- Input and output frequency synchronisation using synchronous Ethernet (SyncE)
- Online Insertion and Removal for higher system uptime
- L2VPN, L3VPN, EVPN and multicast services over IP/MPLS and Segment Routing transport
- H-QoS plus SR, SR-TE and TI-LFA resiliency with sub-50 ms switchover
- Managed by Evolved Programmable Network Manager (EPN-M)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Port density: 2-port 40/100 Gigabit Ethernet, QSFP28
- Port modes: 2 x 100GE, 2 x 40GE, or 1 x 100GE + 1 x 40GE
- Power draw: 52 W typical, 59 W maximum
- Online Insertion and Removal: supported
- Software: Cisco IOS XR 6.6.25 or later
- Slot support NCS 560-4: slots 0 to 3 (slots 2 and 3 require XR 7.2.1)
- Slot support NCS 560-7: slots 7 and 9 only
- Operating temperature, industrial optics: -40 to 65 C at altitude up to 1800 m
- Operating temperature, commercial optics: 0 to 50 C at altitude up to 1800 m
- Operating temperature, industrial optics at high altitude: up to 40 C at altitude up to 4000 m
- Operating temperature with F2B plenum, industrial optics: -40 to 55 C at altitude up to 1800 m
- Relative humidity: 5 to 95%, noncondensing
- Storage temperature: -40 to 70 C
- MTBF at 40 C: 1,608,000 hours
- Synchronisation: IEEE 1588-2008, SyncE, ITU-T G.8261, G.8262, G.8264, G.8265.1, G.8275.1, G.8275.2
- Safety: UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 60950.1:2003
- EMC: FCC Part 15 Class A, EN55022 Class A, CISPR22 Class A, VCCI Class A
- Shipment weight: 2.55 lbs

FAQs

Q: Which chassis and slots does this module support?
A: It installs in NCS 560-4 slots 0 to 3 and NCS 560-7 slots 7 and 9 only. It is not supported in NCS 560-4 slots 4 and 5. Slots 2 and 3 on the NCS 560-4 require IOS XR 7.2.1.

Q: Can it run 40G as well as 100G?
A: Yes. The QSFP28 ports accept 100GE QSFP28 and 40GE QSFP+ optics, in 2 x 100GE, 2 x 40GE, or 1 x 100GE plus 1 x 40GE modes.

Q: What software version does it need?
A: Cisco IOS XR 6.6.25 or later is required, with IOS XR 7.2.1 for NCS 560-4 slots 2 and 3.

Q: How much power does the module draw?
A: It draws 52 W typical and 59 W maximum from the chassis. It has no separate power input.

Q: What does the -V suffix mean in the part number?
A: N560-IMA-2C-V is the volume-based discounting PID of the Flexible Consumption N560-IMA-2C interface module.

Q: Can it be replaced while the router is running?
A: Yes. The module supports Online Insertion and Removal, and the optics are field-replaceable.
