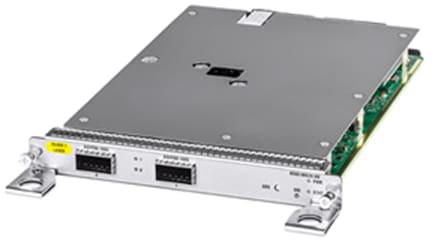

Cisco N560-IMA-2C | NCS 560 2-Port 100G QSFP28 Module, Flexible Consumption

N560-IMA-2C

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The N560-IMA-2C is a 2-port 100 Gigabit Ethernet QSFP28 interface module for the Cisco NCS 560 Series modular routers. It suits service provider aggregation and edge networks where high-bandwidth uplinks or aggregation are needed for Carrier Ethernet business services over IP/MPLS, MPLS-TE, SR, SR-TE and TI-LFA.

Each of the two QSFP28 ports runs at 100GE, or at 40GE when QSFP+ optics are fitted. Supported modes are 2 x 100GE, 2 x 40GE or 1 x 100GE plus 1 x 40GE in slots 0 and 1 of the NCS 560-4, and 1 x 100GE or 2 x 40GE in slots 2 and 3. The module draws 52 W typical and 59 W maximum from the chassis backplane, supports online insertion and removal, and is sold under the Cisco Flexible Consumption licensing model. It runs on Cisco IOS XR, first supported in release 6.6.25.

It fits the NCS 560-4 chassis in slots 0 to 3 and the NCS 560-7 in slots 7 and 9. Software requirements are IOS XR 6.6.25 or later, or 7.2.1 or later for NCS 560-4 slots 2 and 3. Synchronisation support includes IEEE 1588-2008 and Synchronous Ethernet.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Two pluggable 100GE QSFP28 or 40GE QSFP+ ports per module
- Online Insertion and Removal (OIR) for higher uptime
- Y.1731 OAM delay measurement with on-module time stamping
- IEEE 1588-2008 time stamping for frequency and phase synchronisation
- Synchronous Ethernet (SyncE) input and output frequency synchronisation
- Rolling software upgrade, module by module
- Designed for Carrier Ethernet business services over IP/MPLS, MPLS-TE, SR, SR-TE and TI-LFA

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: N560-IMA-2C
- Ports: 2 x QSFP28 (100GE, or 40GE with QSFP+ optics)
- Modes, NCS 560-4 slots 0 and 1: 2 x 100GE, 2 x 40GE or 1 x 100GE + 1 x 40GE
- Modes, NCS 560-4 slots 2 and 3: 1 x 100GE or 2 x 40GE
- NCS 560-7 chassis: slots 7 and 9 only
- Power draw: 52 W typical, 59 W maximum
- Operating temperature (commercial optics): 0 to 50 C at altitude up to 1800 m
- Operating temperature (industrial optics): -40 to 65 C at altitude up to 1800 m
- Relative humidity: 5 to 95%, non-condensing
- Storage temperature: -40 to 70 C
- MTBF at 40 C: 1,608,000 hours
- Minimum software, NCS 560-4 slots 0 and 1: IOS XR 6.6.25
- Minimum software, NCS 560-4 slots 2 and 3: IOS XR 7.2.1
- Shipment weight: 2.55 lbs
- Synchronisation: IEEE 1588-2008, SyncE, ITU-T G.8261/G.8262/G.8264/G.8265.1/G.8275.1/G.8275.2
- Safety: UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 60950.1:2003
- EMC: FCC Part 15 Class A, EN55022 Class A, CISPR22 Class A

FAQs

Q: Does this module need a separate licence?
A: It is sold under the Cisco Flexible Consumption licensing model. The module runs on Cisco IOS XR, first supported in release 6.6.25.

Q: Which chassis and slots does it fit?
A: It fits the NCS 560-4 in slots 0 to 3 and the NCS 560-7 in slots 7 and 9 only. NCS 560-4 slots 2 and 3 need IOS XR 7.2.1 or later.

Q: Can the ports run at 40G?
A: Yes. Each QSFP28 port accepts 40GE QSFP+ optics. In slots 0 and 1 of the NCS 560-4 the module supports 2 x 100GE, 2 x 40GE or 1 x 100GE plus 1 x 40GE.

Q: How much power does it draw?
A: 52 W typical and 59 W maximum, supplied from the NCS 560 chassis backplane.

Q: Is it interchangeable with N560-IMA-2C-DD?
A: No. N560-IMA-2C-DD is a different part number. N560-IMA-2C is the 2-port 40/100GE QSFP28 module under Flexible Consumption.
