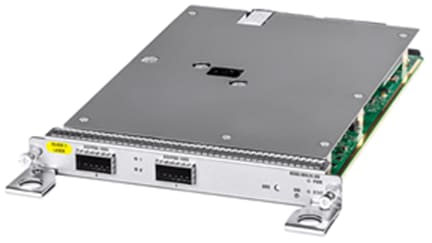

• Cisco N560-IMA-2C-DD-V silver router module with green PCB and black connectors
1 1

Cisco

Cisco N560-IMA-2C-DD-V | NCS 560 2x 100GE QSFP-DD/QSFP28 Module, Volume Discount PID

N560-IMA-2C-DD-V

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The N560-IMA-2C-DD-V is a two-port 100 Gigabit Ethernet interface module for the Cisco NCS 560 Series, built for 100GE uplink and aggregation capacity in carrier Ethernet and IP/MPLS networks. It is sold under the Cisco IOS XR Flexible Consumption Model, and the -V suffix marks it as the volume-based discount ordering PID of the N560-IMA-2C-DD.

The two ports accept QSFP28 or QSFP-DD optics and run in either 2 x 100GE mode or 1 x 100GE QSFP28 mode. Power draw is 38 W typical and 44 W maximum with QSFP28 optics, drawn from the host chassis. The module is rated for an operating temperature of -20 to 65 C, although the usable range may be limited by the optics fitted. It requires Cisco IOS XR 7.3.1 or later.

The module fits slots 0 and 1 of the NCS 560-4 and slots 7 and 9 of the NCS 560-7. Supported transceivers are listed in the Cisco Transceiver Module Group Compatibility Matrix for NCS 560.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Common interface module core with time-stamping support for Y.1731 operations
- Supports QSFP28 and QSFP-DD optics in 2 x 100GE or 1 x 100GE QSFP28 mode
- OIR field-replaceable optics
- Single interface module software reset
- Rolling software upgrade, module by module
- Sold under the Cisco IOS XR Flexible Consumption Model
- Extended -20 to 65 C operating range for this module

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Port density: 2-port 100GE, QSFP28/QSFP-DD
- Supported port modes: 2 x 100GE or 1 x 100GE QSFP28 mode
- Power draw: 38 W typical, 44 W maximum (with QSFP28 optics)
- Operating temperature: -20 to 65 C (may be limited by the optics used)
- Relative humidity: 5 to 95%, noncondensing
- Storage temperature: -40 to 70 C
- Storage altitude: up to 4570 m (15,000 ft)
- MTBF at 40 C: 2,087,160 hours
- First supported software: Cisco IOS XR 7.3.1
- NCS 560-4 slot support: slots 0 and 1
- NCS 560-7 slot support: slots 7 and 9
- Shipment weight: 2.14 lbs
- Shipment package size: 15.44 x 9.44 x 4.31 inches
- Safety standards: UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IEC 60950-1, EN 60950-1, AS/NZS 60950.1:2003

FAQs

Q: Which NCS 560 chassis and slots does this module fit?
A: It fits slots 0 and 1 of the NCS 560-4 and slots 7 and 9 of the NCS 560-7.

Q: Which software release is required?
A: It requires Cisco IOS XR 7.3.1 or later.

Q: What does the -V suffix mean?
A: The -V suffix identifies the volume-based discount ordering PID of the N560-IMA-2C-DD. The hardware is the same 2-port 100GE QSFP28/QSFP-DD interface module.

Q: How is this module licensed?
A: It is sold under the Cisco IOS XR Flexible Consumption Model, which uses Cisco Smart Licensing and software suites.

Q: How much power does it draw?
A: It draws 38 W typical and 44 W maximum with QSFP28 optics. Power comes from the host NCS 560 chassis, as the module has no separate power supply.

Q: Which optics can I use in the ports?
A: The ports accept QSFP28 and QSFP-DD optics. Supported transceivers are listed in the Cisco Transceiver Module Group Compatibility Matrix for NCS 560.
