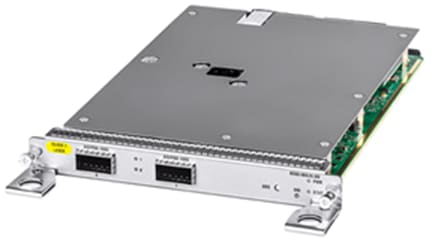

• Cisco N560-IMA-2C-CC silver router module with green PCB and black connectors
1 1

Cisco

Cisco N560-IMA-2C-CC | NCS 560 2x 100GE QSFP28 Interface Module, Conformal Coated

N560-IMA-2C-CC

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This conformal-coated interface module adds two 100 Gigabit Ethernet QSFP28 ports to the NCS 560-4 router, with capabilities that match the standard N560-IMA-2C. It suits carrier Ethernet metro aggregation, remote Point-of-Presence and service provider edge deployments where the added protection of a conformal coating is needed.

The module provides two QSFP28 ports that also operate in 40GE QSFP+ modes. In NCS 560-4 slots 0 and 1 it supports 2 x 100GE, 2 x 40GE or 1 x 100GE plus 1 x 40GE. In slots 2 and 3 it supports 1 x 100GE or 2 x 40GE. It draws 52 W typical and 59 W maximum from the host chassis and requires Cisco IOS XR. It is sold under Cisco's Flexible Consumption model.

It is supported in NCS 560-4 interface slots 0 to 3 with the N560-4-RSP4, N560-4-RSP4E or the conformal-coated N560-4-RSP4-CC and N560-4-RSP4E-CC route processors. It takes 100GE QSFP28 and 40GE QSFP+ optics. Hardware time stamping supports Y.1731 and IEEE 1588-2008, and Synchronous Ethernet is supported for frequency synchronisation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- High-performance 100GE connectivity per slot for the NCS 560 Series
- Online insertion and removal for higher uptime
- Hardware time stamping for Y.1731 OAM delay measurement and IEEE 1588-2008
- Synchronous Ethernet input and output frequency synchronisation
- Conformal coating for harsher environments
- Single interface module software reset and rolling module-by-module software upgrade
- Supports L2VPN, L3VPN, EVPN, multicast, IP/MPLS and Segment Routing transport on the host router
- Managed through Cisco Evolved Programmable Network Manager (EPN-M)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Port density: 2-port 40/100GE, QSFP28
- Port modes (NCS 560-4 slots 0 and 1): 2 x 100GE, 2 x 40GE or 1 x 100GE + 1 x 40GE
- Port modes (NCS 560-4 slots 2 and 3): 1 x 100GE or 2 x 40GE
- Maximum bandwidth on NCS 560-4 slots 0-3: (6 x 100G and 2 x 40G) or (8 x 40G)
- Form factor: single-width, single-height interface module with online insertion and removal
- Conformal coating: Yes
- Power draw: 52 W typical, 59 W maximum
- Operating temperature (commercial-temp optics): 0 to 50 C at altitude up to 1800 m
- Operating temperature (industrial-temp optics, side-to-side airflow): -40 to 65 C at altitude up to 1800 m
- Operating temperature (industrial-temp optics, high altitude): up to 40 C at altitude up to 4000 m
- Relative humidity: 5 to 95%, noncondensing
- Storage environment: -40 to 70 C, altitude 4570 m
- MTBF at 40 C: 1,608,000 hours
- Minimum software: Cisco IOS XR 6.6.25
- Network synchronisation: IEEE 1588-2008, SyncE, ITU-T G.8261, G.8262, G.8264, G.8265.1, G.8275.1, G.8275.2
- Safety: UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IEC 60950-1, EN 60950-1, AS/NZS 60950.1:2003
- EMC: FCC CFR47 Part 15 Class A, EN55022 Class A, CISPR22 Class A, ICES-003 Class A, EN 300 386 Class A, VCCI Class A, KN22 Class A

FAQs

Q: Which router and slots does this module fit?
A: It is supported in interface slots 0 to 3 of the NCS 560-4. Slots 0 and 1 support the full 2 x 100GE configuration, while slots 2 and 3 support 1 x 100GE or 2 x 40GE.

Q: Which route processors does it work with?
A: It is supported with the N560-4-RSP4 and N560-4-RSP4E route processors, as well as the conformal-coated N560-4-RSP4-CC and N560-4-RSP4E-CC.

Q: How is this module licensed?
A: It is sold under Cisco's Flexible Consumption model and runs on Cisco IOS XR on the NCS 560 router.

Q: What optics does it take?
A: The QSFP28 ports accept 100GE QSFP28 and 40GE QSFP+ optics. Cisco publishes a Transceiver Module Group (TMG) Compatibility Matrix listing the supported genuine optics.

Q: How does it differ from the N560-IMA-2C?
A: It offers the same 2 x 100GE capabilities as the N560-IMA-2C but adds a conformal coating for harsher environments.

Q: How much power does it draw?
A: It draws 52 W typical and 59 W maximum from the host NCS 560-4 chassis. It does not provide PoE.
