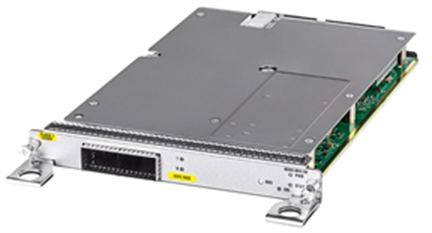

Cisco N560-IMA-1W | NCS 560 1-Port 100G/200G CFP2-DCO Interface Module
SKU:N560-IMA-1W
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The NCS 560 1-port 100G/200G CFP2-DCO interface module adds coherent DWDM connectivity to NCS 560 Series routers. It is built for metro aggregation and transport, taking a single pluggable CFP2-DCO optic in either 100GE or 200GE mode.
The module provides one CFP2-DCO port and supports 1 x 100GE or 1 x 200GE operation. In NCS 560-4 chassis, slots 0 and 1 support both 100GE and 200GE modes, while slots 2 and 3 support 1 x 100GE only. In NCS 560-7 chassis, slots 7 and 9 support both modes. It draws 50 W typical and 60 W maximum from the chassis, with no PoE and no separate power supply. The part is sold under the Flexible Consumption model and requires Cisco IOS XR 7.2.1 or later.
Operating temperature is 0 to 50 C with commercial-temperature CFP2-DCO optics, with a rated MTBF of 2,170,310 hours. Supported transceivers are listed in the Cisco Transceiver Module Group (TMG) Compatibility Matrix.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Pluggable coherent CFP2-DCO optics for 100GE or 200GE connectivity
- Metro Carrier Ethernet aggregation with L2VPN, L3VPN, EVPN and multicast services
- IP/MPLS, MPLS-TE, Segment Routing (SR, SR-TE) and TI-LFA with sub-50 ms resiliency
- OIR field-replaceable optics modules
- Single interface module software reset and rolling software upgrade by interface module
- Supported by Evolved Programmable Network Manager (EPN-M) for end-to-end management
- Supports the Flexible Consumption licensing model
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: N560-IMA-1W
- Port density: 1-port 100/200 GE, CFP2-DCO
- Supported modes: 1 x 100GE or 1 x 200GE
- Power draw: 50 W typical, 60 W maximum
- Minimum software: Cisco IOS XR 7.2.1
- MTBF: 2,170,310 hours
- Operating temperature: 0 to 50 C with commercial-temperature CFP2-DCO optics, altitude up to 1800 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 95%, noncondensing
- Module shipment weight: 2.48 lbs
- NCS 560-4 slots: 0 and 1 in 100GE/200GE modes, 2 and 3 in 100GE mode only
- NCS 560-7 slots: 7 and 9 in 100GE/200GE modes
- Safety: UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 60950.1
- EMC: FCC Part 15 Class A, EN55022 Class A, CISPR22 Class A, EN 300 386
- Synchronisation: IEEE 1588-2008, ITU-T G.8261, G.8262, G.8264, G.8265.1, G.8275.1, G.8275.2
FAQs
Q: Which NCS 560 chassis and slots does this module fit?
A: It fits NCS 560-4 slots 0 to 3 and NCS 560-7 slots 7 and 9. In NCS 560-4, slots 2 and 3 support 1 x 100GE mode only.
Q: What software release does it require?
A: It requires Cisco IOS XR 7.2.1 or later.
Q: Does it need a licence?
A: It is part of the Cisco Flexible Consumption model. Refer to the Cisco Flexible Consumption Model documentation for the tier that applies to your deployment.
Q: How much power does it draw?
A: It draws 50 W typical and 60 W maximum from the NCS 560 chassis. It has no PoE and no separate power supply.
Q: Which optics does it take?
A: It takes one 100GE or 200GE CFP2-DCO coherent optic. Supported transceivers are listed in the Cisco Transceiver Module Group (TMG) Compatibility Matrix.
