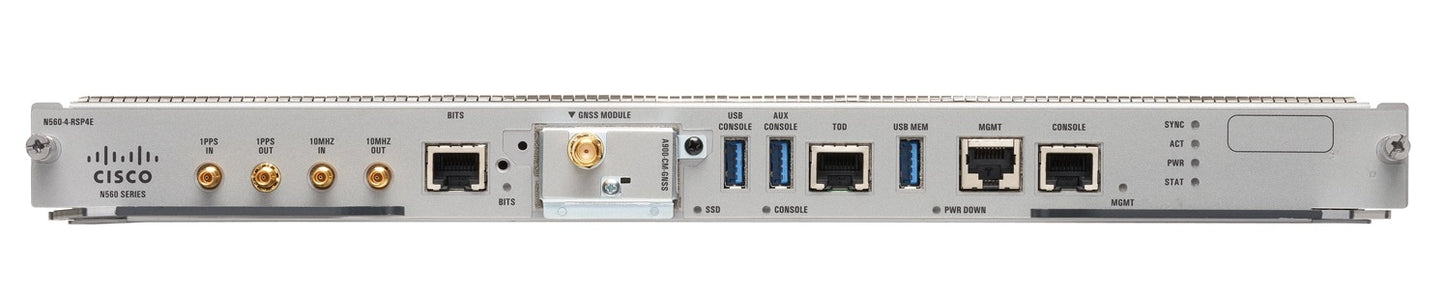

Cisco N560-4-RSP4E-CC | NCS 560-4 RSP4E Route Switch Processor, Conformal Coated, XL, 800G
SKU:N560-4-RSP4E-CC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The N560-4-RSP4E is the conformal-coated Route Switch Processor 4 Enhanced for the 4RU Cisco NCS 560-4 router. It is the centralised control, forwarding and management plane card for the chassis and also provides network timing. The coating (GR-3108 Class-2) suits harsher, extended-temperature deployments such as remote POPs and space-constrained or rugged sites.
This RSP supports 800G interface throughput at extra-large (XL) service scale and runs Cisco IOS XR Software. Each NCS 560-4 chassis has two RSP slots, so a redundant pair gives in-box hardware redundancy and supports 50 msec ISSU. Timing options include BITS, 1PPS, 10 MHz, ToD, SyncE and IEEE 1588 PTP. Segment Routing, EVPN, L2VPN, L3VPN and multicast services are supported, and the card is field replaceable.
It is designed for the NCS 560-4 chassis (NCS560-4) alongside the N560-4-FAN-H fan tray, N560-4-PWR-FAN and N560-4-FILTER. The NCS 560-7 RSPs are different cards and are not interchangeable with this one.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Centralised control plane, forwarding plane and management plane card for the NCS 560-4
- Integrated timing and synchronisation: SyncE, IEEE 1588 PTP G.8275.1/G.8275.2, BITS, 1PPS, 10 MHz, ToD
- Redundant RSP pairs provide in-box hardware redundancy and 50 msec ISSU
- Conformal coating for harsher, extended-temperature deployments
- Trust Anchor infrastructure with secure boot, image signing and run-time defence
- Supports Segment Routing, EVPN, L2VPN/L3VPN and multicast services
- Online insertion and removal as a field replaceable unit
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Compatible chassis: Cisco NCS 560-4 Router (NCS560-4), 4RU
- RSP slots per chassis: 2
- Interface throughput: 800 Gbps
- Service scale: Extra-Large (XL)
- Coating: Conformal coated, GR-3108 Class-2
- Software: Cisco IOS XR
- IPv4 / IPv6 performance (RSP4 family): 720 Mpps
- Management ports: 10/100/1000Base-T RJ45 LAN, RJ45 Console/Aux RS232, USB 2.0 Type-A console
- Timing ports: BITS (J1/T1/E1) RJ48 in/out, 1PPS in/out, 2.048/10 MHz in/out (mini-coax)
- External storage: USB 2.0 Type-A mass storage
- Dimensions (H x W x D): 1.28 x 14.17 x 8.66 in. (32.5 x 360 x 220 mm)
- Weight: 6.24 lb (2.83 kg)
- Chassis operating temperature: -40 to 65 C
- Relative humidity: 5 to 95% non-condensing
- NEBS: GR-63-CORE Issue 5, GR-1089-CORE Issue 7, SR-3580 Level 3
- Seismic: Zone 4
- RoHS: RoHS 6
FAQs
Q: Which chassis does the N560-4-RSP4E-CC fit?
A: It is for the 4RU Cisco NCS 560-4 chassis (NCS560-4) only. The NCS 560-7 RSPs are different cards and are not interchangeable.
Q: How does this differ from the standard N560-4-RSP4E?
A: It offers the same 800G, XL scale RSP function but is a conformal-coated version (GR-3108 Class-2) intended for harsher, extended-temperature environments.
Q: Can I run two RSPs in one chassis?
A: Yes. The NCS 560-4 has two RSP slots. A redundant RSP pair provides in-box hardware redundancy and supports 50 msec ISSU.
Q: How is the RSP powered?
A: It is powered from the NCS 560-4 chassis backplane. The chassis takes up to three 1200W AC or DC power supplies (A900-PWR1200-A, A900-PWR1200-D or N560-PWR1200-D-E) in load-share or 2+1 mode.
Q: What licensing does the NCS 560 use?
A: Cisco IOS XR on the NCS 560 portfolio uses right-to-use licences per 100G, such as Access Essentials and Access Advantage.
