Cisco

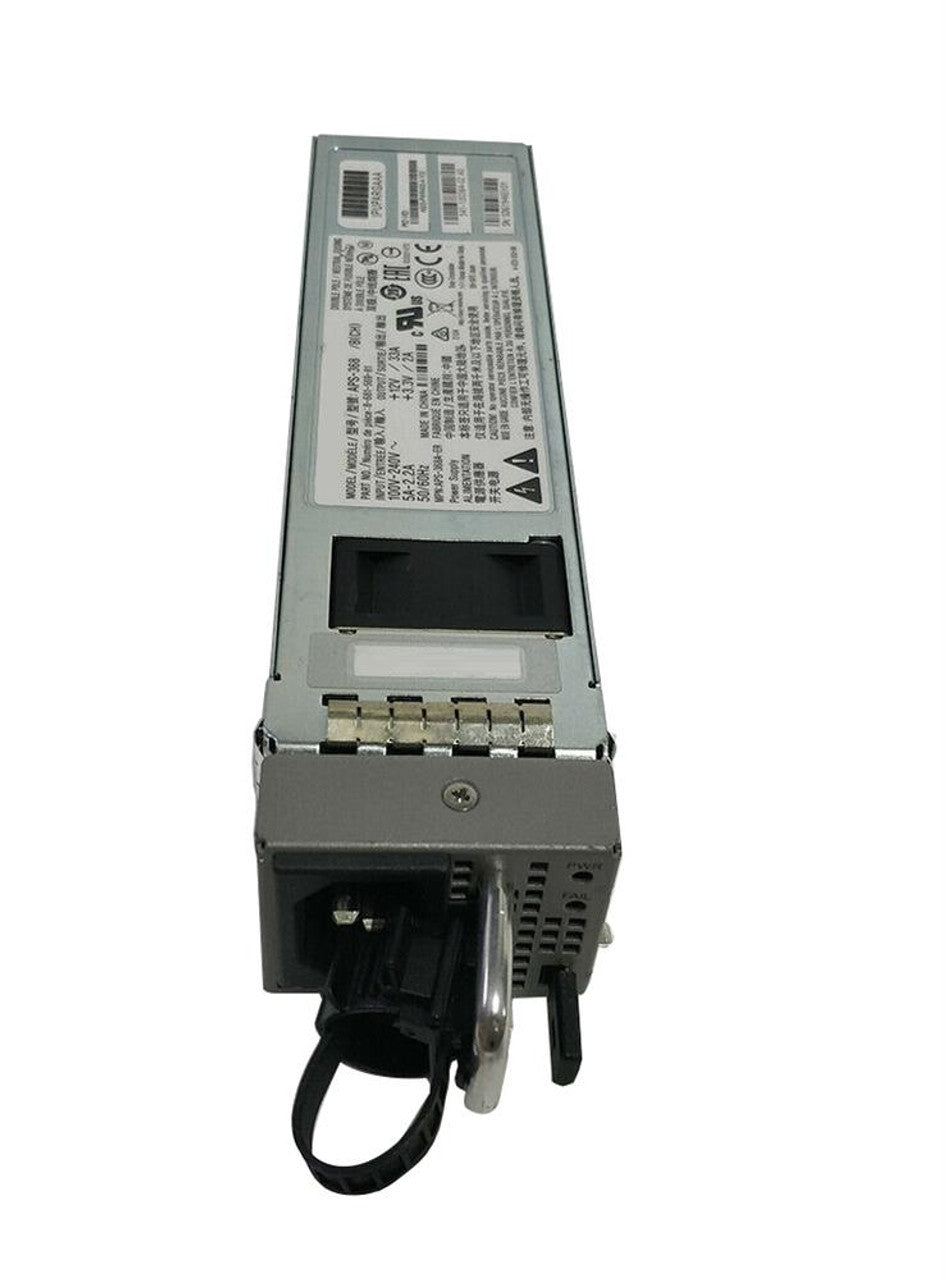

Cisco N540-PWR400-A | 400W AC Power Supply for NCS 540, Hot-Swappable

N540-PWR400-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The N540-PWR400-A is a 400W AC power supply module for modular Cisco Network Convergence System 540 series routers. It suits service provider access and aggregation sites, mobile backhaul and cell-site deployments where the NCS 540 platform is fitted in indoor or outdoor cabinets.

This SKU is the AC version of the N540-PWR400 family. It is rated at 400W and takes a 100-240 VAC input at 50/60 Hz. Its DC counterpart is the N540-PWR400-D, so choose this part when the site is fed from AC mains rather than a DC battery plant. The module is field-replaceable and hot-swappable, and two supplies can be installed as a pair for 1+1 power redundancy on NCS 540 models with swappable supplies.

The power supply sits alongside the N540-FAN fan module and the N540-RCKMT-19, N540-RCKMT-23 and N540-RKMT-ETSI rackmount kits listed for the AC variant. Check the exact router model before ordering, because some NCS 540 models use fixed rather than modular power supplies.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field-replaceable power supply module for modular NCS 540 routers
- Hot-swappable with online insertion and removal
- Supports 1+1 power redundancy when installed as a pair
- AC-input variant, with a DC counterpart available as N540-PWR400-D
- Suited to NCS 540 medium-density routers in access and aggregation roles
- Fits cell-site and cabinet deployments of the NCS 540 platform

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: N540-PWR400-A
- Product type: Power supply module
- Rated output: 400W
- AC input: 100-240 VAC, 50/60 Hz
- Power type: AC
- DC equivalent: N540-PWR400-D
- Redundancy: 1+1 with a second supply on models with swappable supplies
- Associated fan module: N540-FAN
- Associated rackmount kits: N540-RCKMT-19, N540-RCKMT-23, N540-RKMT-ETSI

FAQs

Q: Is this the AC or DC power supply?
A: The N540-PWR400-A is the AC version, with a 100-240 VAC input. The DC equivalent is the N540-PWR400-D.

Q: Can two of these be installed for redundancy?
A: Yes. NCS 540 models with swappable power supplies support 1+1 redundancy, so a second supply can be fitted as a pair.

Q: Which routers does it work with?
A: It is for NCS 540 series routers that use the N540-PWR400 power supply family. Confirm the router model first, because some NCS 540 models have fixed rather than modular power supplies.

Q: Can it be replaced while the router is running?
A: Yes. The module is hot-swappable, and online insertion and removal is covered in the Cisco NCS 540 Hardware Installation Guide.

Q: Which fan module and rackmount kits go with the AC variant?
A: The N540-FAN fan module is listed alongside it, with the N540-RCKMT-19, N540-RCKMT-23 and N540-RKMT-ETSI rackmount kits for the AC variant.
