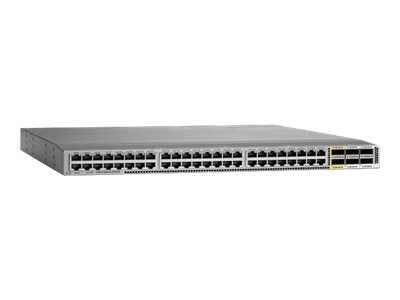

• Cisco N2K-C2348TQ4F-E 48-port 10GBASE-T switch with 6x 40G QSFP+ uplinks
1 1

Cisco

Cisco N2K-C2348TQ4F-E | 48x 100M/1G/10GBASE-T (RJ45), non-PoE; 6x 40G QSFP+ fabric uplinks; dual AC PSU, reversible airflow; bundle: 4x FET/QSFP-BiDi; license-free (parent-managed)

N2K-C2348TQ4F-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density 10GBASE-T fabric extender with 48 copper access ports and six 40G QSFP+ fabric uplinks to a parent Nexus switch. Includes 2x hot-swap power supplies and 3x hot-swap fan modules with selectable port-side intake or exhaust airflow. Bundle includes 4x fabric extender transceivers (FET-10G/FET-40G) or QSFP-40G BiDi as specified. Not a standalone switch; managed by the parent switch via VN-Tag.

Features

- 48-port 10GBASE-T access density for copper endpoints
- Six 40G QSFP+ fabric uplinks for high aggregate bandwidth to the parent
- Dual hot-swap PSUs and hot-swap fans for data center resiliency
- Selectable port-side intake or exhaust airflow to fit hot-aisle/cold-aisle designs
- Parent-managed architecture (VN-Tag) simplifies operations and policy consistency
- Flexible optics bundle: choose FET or QSFP-40G BiDi to match your fiber plant

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Host access ports: 48x RJ45 auto-negotiating 100M/1G/10GBASE-T
- Fabric uplinks: 6x QSFP+ 40GbE (to parent switch)
- PoE: Not supported (non-PoE)
- Bundle optics: 4x FET-10G/FET-40G or QSFP-40G BiDi (per configuration)
- Airflow: Port-side intake or exhaust (reversible; color-coded)
- Power: 2x hot-swap AC PSUs, 1+1 redundancy
- Cooling: 3x hot-swap fan modules
- Management: Parent-managed (VN-Tag); no local switching/forwarding
- Parent compatibility: Select Nexus 5K/6K/7K/9K (check compatibility matrix)
- 10GBASE-T cabling: Cat6a/Cat7 recommended up to 100 m
- QSFP+ optics support: SR4/FET-40G (MPO-12 MMF), QSFP-40G BiDi (LC duplex MMF)
- Typical MMF reach (SR4/BiDi): OM3 up to 100 m, OM4 up to 150 m

FAQs

Q: Is this a standalone switch?
A: No. It is a fabric extender (FEX) and must connect to a supported Nexus parent switch.

Q: How many uplinks are available?
A: Six QSFP+ 40G fabric uplinks.

Q: Are optics included?
A: Yes. This bundle includes 4x fabric extender transceivers (FET-10G/FET-40G) or QSFP-40G BiDi as specified at purchase.

Q: Does it support PoE on copper ports?
A: No. The RJ45 ports are non-PoE 100M/1G/10GBASE-T.

Q: What airflow options are available?
A: Port-side intake or port-side exhaust; select at order to match your data center design.

Q: What cabling is recommended for 10GBASE-T?
A: Use Cat6a (or better) for 10G up to 100 meters.

Q: Which QSFP+ optics are supported for uplinks?
A: Common options include QSFP+ SR4/FET-40G (MPO-12) and QSFP-40G BiDi (LC duplex) on MMF.

Q: Are feature licenses required?
A: No local licenses on the FEX; features and policies are controlled by the parent switch.
