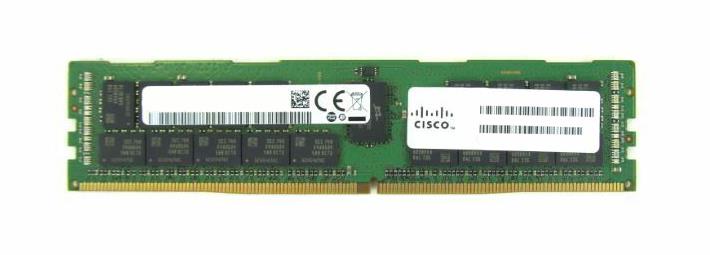

• Cisco MEM-C8500-32GB 32GB DRAM memory module for C8500
1 1

Cisco

Cisco MEM-C8500-32GB | Catalyst 8500 32GB DRAM Memory Module

MEM-C8500-32GB

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 32GB DRAM memory module is an upgrade for Cisco Catalyst 8500 Series Edge Platforms, specifically the C8500-12X and C8500-12X4QC. It is aimed at network teams scaling WAN edge and aggregation routers, including SD-WAN and large-scale edge deployments, where more control-plane headroom is needed.

The module raises installed DRAM from the 16GB platform default to 32GB. The platform supports DRAM upgrades of 32GB or 64GB, with 64GB the maximum, so this part sits mid-way between the default and the top configuration (MEM-C8500-64GB). It supports the high-speed control-plane processes that run on the Intel x86 multicore control processor.

The module is a passive component that draws power from the host chassis, so no separate power supply is needed. It is listed in the Catalyst 8500 Series data sheet for the C8500-12X and C8500-12X4QC. The C8500-20X6C already ships with 64GB, and the C8500L-8S4X uses separate part numbers (MEM-C8500L-32GB and MEM-C8500L-64GB).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field upgrade of DRAM from the 16GB default to 32GB for higher scale
- Supports high-speed control-plane processes on the Intel x86 multicore control processor
- Adds control-plane headroom for WAN edge and aggregation deployments
- Suited to SD-WAN and large-scale WAN edge routing
- Listed in the Cisco Catalyst 8500 Series data sheet ordering options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product number: MEM-C8500-32GB
- Description: Cisco C8500 32GB memory
- Module type: DRAM memory upgrade
- Capacity: 32GB DRAM
- Default platform DRAM: 16GB
- Supported DRAM options: 32GB and 64GB
- Maximum DRAM on Catalyst 8500 platforms: 64GB
- Compatible platforms: C8500-12X and C8500-12X4QC
- Spare part number: MEM-C8500-32GB=
- Power: drawn from host chassis, no separate power supply

FAQs

Q: Which Catalyst 8500 models does this memory module work with?
A: It is listed for the Catalyst C8500-12X and C8500-12X4QC Edge Platforms. The C8500-20X6C ships with 64GB by default, so this module does not apply there.

Q: Does the memory module need a licence?
A: No, the module itself needs no licence. The host Catalyst 8500 platform initially requires a Cisco DNA Advantage software subscription.

Q: How does this differ from MEM-C8500-64GB?
A: This module provides 32GB of DRAM, while MEM-C8500-64GB provides the 64GB maximum. Both are upgrades over the 16GB platform default.

Q: Can I use it in a Catalyst 8500L platform?
A: No. The C8500L-8S4X uses separate part numbers, MEM-C8500L-32GB and MEM-C8500L-64GB.

Q: Does it need its own power supply?
A: No. It is a passive component that draws power from the host chassis.
