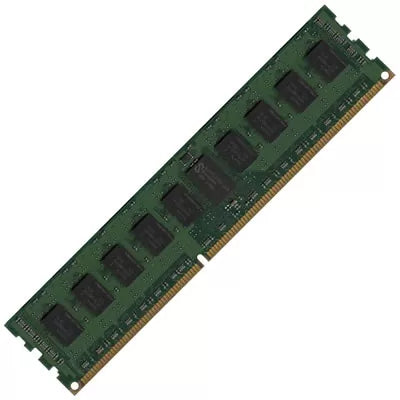

• Cisco ASR1000 RP3 8GB DDR3 green RAM module with gold contacts
1 1

Cisco

Cisco M-ASR1K-RP3-8GB | ASR 1000 RP3 8 GB DRAM Router Memory Module

M-ASR1K-RP3-8GB

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 8 GB DRAM module is the default memory option for the Cisco ASR 1000 Series Route Processor 3 (ASR1000-RP3). It suits service provider edge, aggregation and WAN routers where the route processor needs to be provisioned or restored with its standard memory capacity.

With 8 GB fitted, the RP3 supports up to 1,000,000 IPv4 or 1,000,000 IPv6 routes, with BGP route reflector scalability up to 8,000,000 IPv4 or 6,000,000 IPv6 routes. The RP3 itself is built around a quad-core 2.2 GHz processor and runs 64-bit Cisco IOS XE. This SKU is the 8 GB capacity point in the RP3 memory range, which also extends to 16 GB, 32 GB and 64 GB.

The module is designed for the RP3 in ASR 1006-X, ASR 1009-X and ASR 1013 chassis and requires Cisco IOS XE 16.3.1 or later. It is not intended for RP1 or RP2 route processors, which use different memory.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Default memory capacity for the ASR 1000 Series RP3
- Supports large routing tables and BGP route reflector scale on the RP3
- RP3 memory can be scaled to 16 GB, 32 GB or 64 GB as requirements grow
- RP3 supports 1+1 redundancy in a dual route processor configuration
- RP3 supports NSF, SSO and ISSU for high availability
- Full range of Cisco IOS XE software features and services on the host chassis

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 8 GB DRAM
- Compatible route processor: ASR 1000 Series RP3 (ASR1000-RP3)
- RP3 memory options: 8 GB (default), 16 GB, 32 GB, 64 GB
- Supported chassis: ASR 1006-X, ASR 1009-X, ASR 1013
- Minimum software: Cisco IOS XE 16.3.1
- RP3 CPU: Quad-core, 2.2 GHz
- RP3 operating system: 64-bit Cisco IOS XE
- Routes with 8 GB: Up to 1,000,000 IPv4 or 1,000,000 IPv6
- BGP RR scalability with 8 GB: Up to 8,000,000 IPv4 or 6,000,000 IPv6 routes
- RP3 built-in bootflash: 8 GB eUSB/eMMC
- RP3 storage: 100 GB hot-swappable SSD default, upgradable to 200 GB or 400 GB
- RP3 weight: 7 lb (3.2 kg)
- Operating temperature, nominal: 5 to 40 C
- Storage temperature: -40 to 70 C

FAQs

Q: Does this memory module need a separate licence?
A: No. The memory module has no licence of its own. The router operates under the Cisco IOS XE software licensing of the host ASR 1000 chassis.

Q: Which route processor and chassis is it for?
A: It is for the ASR 1000 Series Route Processor 3 (ASR1000-RP3) in ASR 1006-X, ASR 1009-X and ASR 1013 chassis. It requires Cisco IOS XE 16.3.1 or later.

Q: Can I use it in an RP1 or RP2?
A: No. RP1 and RP2 route processors use different memory. This module is specific to the RP3.

Q: What larger memory options exist for the RP3?
A: The RP3 can be upgraded to 16 GB (M-ASR1K-RP3-16GB), 32 GB (M-ASR1K-RP3-32GB) or 64 GB (M-ASR1K-RP3-64GB) for larger routing tables and more services.

Q: How many routes does 8 GB support on the RP3?
A: With 8 GB fitted, the RP3 supports up to 1,000,000 IPv4 or 1,000,000 IPv6 routes, with BGP route reflector scalability up to 8,000,000 IPv4 or 6,000,000 IPv6 routes.
