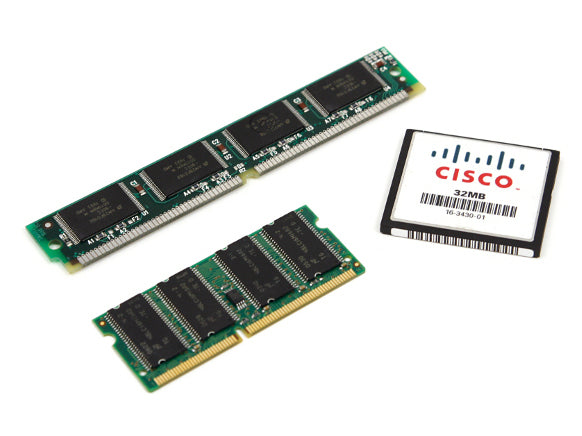

• Cisco M-ASR1K-RP3-64GB 64GB DRAM with 32MB memory card
1 1

Cisco

Cisco M-ASR1K-RP3-64GB | ASR 1000 RP3 64GB (4x16GB) DRAM Memory Module

M-ASR1K-RP3-64GB

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 64GB DRAM memory module is the top memory option for the Cisco ASR1000-RP3 Route Processor 3 in the ASR 1000 Series Aggregation Services Routers. It suits large-scale WAN and aggregation edge deployments that need high route scale, such as large IPv4 and IPv6 routing tables, MPLS VPN, BGP route reflection, SBC and broadband aggregation.

The kit is made up of four 16GB DIMMs, which populate Ch-A DIMM0, Ch-A DIMM1, Ch-B DIMM0 and Ch-B DIMM1 on the RP3. The RP3 ships with 8GB by default and can be upgraded to 16GB, 32GB or 64GB, so this module takes the route processor to its maximum memory. The extra capacity supports additional MPLS VPN routing and forwarding instances and feature additions such as SBC and broadband aggregation. It is a passive module powered from the route processor, and no licence is required for the memory itself.

This module is designed for the ASR1000-RP3 only, installed in ASR 1006-X, 1009-X and 1013 chassis, and the RP3 requires Cisco IOS XE 16.3.1 or later. It is not for RP1 or RP2 route processors, or fixed ASR 1001 and 1002 platforms.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Scales RP3 memory up to 64 GB to support routing table growth
- Supports additional MPLS VPN routing and forwarding instances
- Enables feature additions such as SBC and broadband aggregation (BBA)
- Field-installable DIMM upgrade for the ASR1000-RP3 route processor
- Passive module powered from the route processor
- Fills all four DIMM slots with 16 GB modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Memory PID: M-ASR1K-RP3-64GB
- Memory capacity: 64 GB DRAM
- DIMM configuration: 4 x 16 GB
- DIMM slots populated: Ch-A DIMM0, Ch-A DIMM1, Ch-B DIMM0, Ch-B DIMM1
- Host module: Cisco ASR1000-RP3 (Route Processor 3)
- RP3 memory options: 8 GB default, upgradable to 16 GB, 32 GB or 64 GB
- RP3 chassis support: Cisco ASR 1006-X, 1009-X and 1013
- RP3 software compatibility: minimum Cisco IOS XE 16.3.1
- RP3 CPU: quad-core processor, 2.2 GHz
- RP3 storage: 100 GB hot-swappable SSD, upgradable to 200 GB or 400 GB
- RP3 operating temperature, nominal: 5 to 40 C
- RP3 operating humidity, nominal: 5 to 85% RH
- RP3 operating altitude: -60 to 4000 m

FAQs

Q: Does this memory module need a licence?
A: No. No licence is required for the memory module itself.

Q: Which route processor does it work with?
A: It is for the Cisco ASR1000-RP3 route processor only, installed in ASR 1006-X, 1009-X and 1013 chassis. It is not for RP1 or RP2 or the fixed ASR 1001 and 1002 platforms.

Q: Which software release is required?
A: The RP3 requires a minimum of Cisco IOS XE 16.3.1.

Q: How are the DIMM slots populated?
A: All four DIMM slots (Ch-A DIMM0, Ch-A DIMM1, Ch-B DIMM0 and Ch-B DIMM1) are populated with 16 GB DIMMs to reach 64 GB.

Q: Does it need a separate power supply?
A: No. It is a passive memory module powered from the ASR1000-RP3 route processor.
