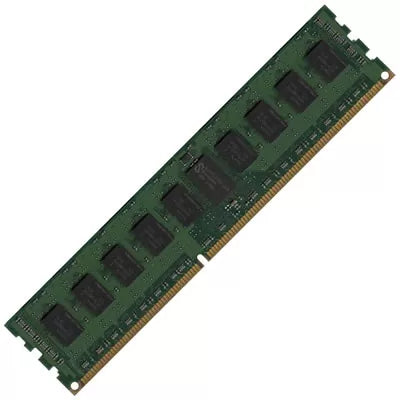

• Cisco ASR1002-HX 16GB DDR3 RAM module with green PCB and gold contacts
1 1

Cisco

Cisco M-ASR1002HX-16GB | ASR 1000 16GB DRAM Memory Module for ASR1002-HX

M-ASR1002HX-16GB

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 16GB DRAM memory option is built for the integrated route processor of the Cisco ASR 1002-HX in the ASR 1000 Series. It is a platform-specific, field-replaceable upgrade aimed at network teams running ASR 1002-HX aggregation and WAN edge routers who need more memory for scale, larger routing tables or software redundancy.

The ASR 1002-HX ships with 16GB of route processor memory by default and supports a maximum of 32GB. Adding this 16GB module takes the route processor to the 32GB platform maximum. A minimum of 16GB is required for IOS XE software redundancy on this chassis, and the integrated route processor means no separate RP needs to be ordered with the router.

The memory itself needs no licence. Software redundancy on the ASR 1002-HX does require the FLSASR1-IOSRED(=) or L-FLSASR1-IOSRED= feature licence. This part is intended for the Cisco ASR1002-HX only.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Raises route processor DRAM to the 32GB platform maximum when added to the default 16GB
- Meets the memory requirement for IOS XE software redundancy on the ASR1002-HX
- Platform-specific field-replaceable memory for the integrated route processor
- Supports larger routing tables and greater scale on aggregation and WAN edge deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: M-ASR1002HX-16GB
- Memory capacity: 16GB DRAM
- Compatible chassis: ASR1002-HX
- Default route processor memory: 16GB
- Maximum route processor memory: 32GB
- Default and maximum storage: 32GB EUSB
- Minimum memory for software redundancy: 16GB
- Inbox redundancy type: SW No ISSU
- Redundancy feature licence: FLSASR1-IOSRED(=) or L-FLSASR1-IOSRED=

FAQs

Q: Which router does this memory work with?
A: It is platform-specific memory for the Cisco ASR1002-HX only. It is not intended for other ASR 1000 Series chassis.

Q: What is the maximum memory on the ASR1002-HX?
A: The ASR1002-HX supports up to 32GB of route processor DRAM. It ships with 16GB by default, so this 16GB module brings it to the maximum.

Q: Do I need a licence to use this memory?
A: No licence is required for the memory itself. Software redundancy on the ASR1002-HX needs the FLSASR1-IOSRED(=) or L-FLSASR1-IOSRED= feature licence.

Q: Is this memory needed for software redundancy?
A: IOS XE software redundancy on the ASR1002-HX requires a minimum of 16GB of memory, which matches the default configuration. Additional memory gives headroom for scale.
