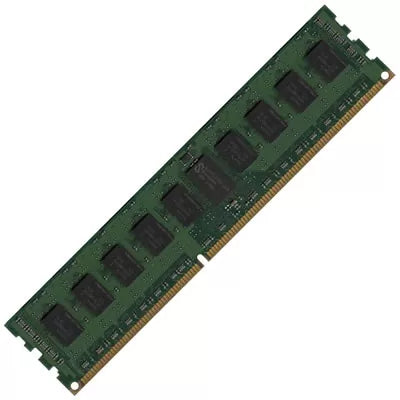

• Cisco M-ASR1001X-8GB 8GB DDR3 RAM module with gold contacts
1 1

Cisco

Cisco M-ASR1001X-8GB | ASR 1001-X Router Memory, 8GB DRAM Kit (2 x 4GB)

M-ASR1001X-8GB

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 8GB DRAM memory kit is made for the Cisco ASR 1001-X router in the ASR 1000 Series. It suits branch, WAN-edge and aggregation deployments where the router needs spare or replacement memory, or more headroom for large routing tables, ThousandEyes agents and additional services.

The kit is supplied as 2 x 4GB DDR3 ECC modules, matching the ASR 1001-X base configuration of 8GB. The chassis has two DRAM slots that each accept a 4GB or 8GB module, with a maximum of 16GB. Memory is shared across the route processor, ESP and SIP, which are integrated in the chassis. ECC provides single-bit error correction and multi-bit error detection, and the memory is field-replaceable.

The memory is a passive component powered by the router chassis and needs no licence of its own. It is intended for the ASR 1001-X only. Do not use it in the ASR 1002-X, which has its own matching memory part.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Field-replaceable DRAM for the ASR 1001-X
- Supports the 8GB base configuration and upgrades up to 16GB total
- ECC protection with single-bit correction and multi-bit error detection
- Memory shared across the route processor, ESP and SIP in the integrated chassis
- Extra headroom for large BGP tables and additional concurrent services

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: M-ASR1001X-8GB
- Description: Cisco ASR1001-X 8GB DRAM
- Capacity: 8GB DRAM kit (2 x 4GB)
- Memory type: DDR3 ECC-protected, field-replaceable
- Error handling: single-bit error correction, multi-bit error detection
- Compatible chassis: ASR 1001-X (ASR1001-X)
- ASR 1001-X DRAM slots: 2, each accepting a 4GB or 8GB module
- ASR 1001-X default memory: 8GB DRAM shared across route processor, ESP and SIP
- ASR 1001-X maximum memory: 16GB
- Power: passive module, powered by the router chassis

FAQs

Q: Which router is this memory kit for?
A: It is for the Cisco ASR 1001-X only. The ASR 1002-X uses a different memory part, so do not mix the two.

Q: Does the memory need a licence?
A: No. The memory itself needs no licence. The ASR 1001-X ESP throughput defaults to 2.5 Gbps and is raised separately with performance licences.

Q: How much memory can the ASR 1001-X take?
A: The chassis has two DRAM slots that accept 4GB or 8GB modules, giving a maximum of 16GB. The base configuration is 8GB as 2 x 4GB.

Q: Does it need its own power?
A: No. It is a passive module powered by the ASR 1001-X chassis.
