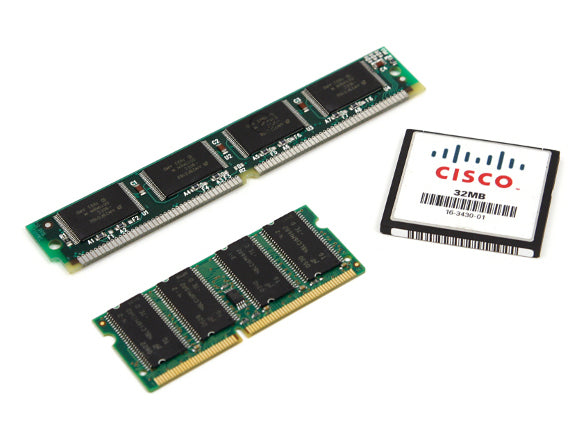

• Cisco M-ASR1001X-16GB 32MB memory card with black silver components
1 1

Cisco

Cisco M-ASR1001X-16GB | ASR 1001-X Router 16GB DRAM Memory Upgrade

M-ASR1001X-16GB

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 16GB DRAM memory upgrade is designed for the Cisco ASR 1001-X router in the ASR 1000 Series. It raises the system memory of the integrated route processor from the default 8GB to 16GB, giving the router more headroom as routing tables and feature sets grow.

The ASR 1001-X route processor is built into the chassis and is a dual-core 2.66GHz unit, so memory is the element that can be expanded. The built-in route processor supports either 8GB or 16GB of SDRAM, and this 16GB part takes the router to the maximum. The extra memory suits deployments that need greater routing-table scale, additional MPLS VPN routing and forwarding instances, or larger BGP scale.

The router runs Cisco IOS XE Software, and Cisco IOS Software redundancy and NSF are supported on the ASR 1001-X built-in route processor. The memory module itself needs no licence, while software features on the router are licensed separately through Cisco IOS XE feature and licence packages.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Doubles the default 8GB of system memory on the ASR 1001-X to 16GB
- Pay-as-you-grow memory scalability as users and features are added
- Supports routing-table growth and additional MPLS VPN routing and forwarding instances
- Supports larger BGP scale
- Supports Cisco IOS Software redundancy and NSF on the built-in route processor
- Works with Cisco IOS XE Software

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Memory: 16GB DRAM
- Default memory on ASR 1001-X: 8GB
- Maximum DRAM on ASR 1001-X: up to 16GB
- Route processor: integrated, dual-core 2.66GHz (RP2-class)
- Route processor upgradability: integrated in the chassis, memory is the upgradable element
- Onboard bootflash: 8GB eUSB/eMMC, partitioned as 1GB bootflash and 7GB mass storage
- Management port: single copper RJ-45 10/100/1000 Ethernet
- Software compatibility: Cisco IOS XE Software
- Compatible router: Cisco ASR 1001-X

FAQs

Q: Which router is this memory upgrade for?
A: It is a DRAM upgrade for the Cisco ASR 1001-X router. The ASR 1001-X built-in route processor supports either 8GB or 16GB of SDRAM.

Q: How much memory does the ASR 1001-X have by default?
A: The ASR 1001-X ships with 8GB of DRAM by default. This upgrade takes the system to 16GB, which is the maximum the built-in route processor supports.

Q: Does the memory upgrade require a licence?
A: No licence is required for the memory module itself. Software features on the ASR 1001-X are licensed separately through Cisco IOS XE feature and licence packages.

Q: When is 16GB worth fitting over the default 8GB?
A: It suits routers that need more routing-table scale, additional MPLS VPN routing and forwarding instances, or larger BGP scale than the default 8GB allows.

Q: Can the route processor itself be upgraded?
A: No. The route processor is integrated in the ASR 1001-X chassis and is not upgradable, so memory is the element that can be expanded.
