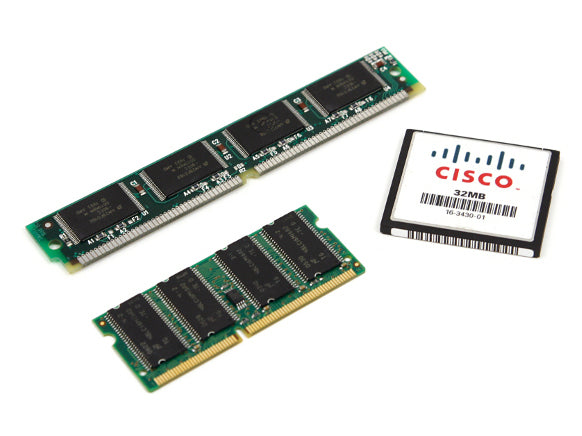

• 32MB Cisco Memory Card with Black Silver Components for ASR1001-HX 8GB Upgrade
1 1

Cisco

Cisco M-ASR1001HX-8GB | ASR 1001-HX 8GB DRAM Memory Module for Router

M-ASR1001HX-8GB

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 8GB DRAM memory module is a memory option for the Cisco ASR 1001-HX router in the ASR 1000 Series of Aggregation Services Routers. It suits WAN aggregation and internet edge routers that need DRAM restored, replaced or brought up to the supported level.

The module provides 8 GB of capacity, which is the default memory level for the ASR 1001-HX and meets the minimum DRAM required for IOS XE software redundancy on this chassis. Memory on the ASR 1001-HX is shared across the route processor, the ESP and the SIP. The maximum supported on the chassis is 16 GB, which is available separately as M-ASR1001HX-16GB.

It is for the ASR 1001-HX only. The ASR 1001-X and ASR 1002-HX use their own memory part numbers. The module is powered from the host chassis, so there is no separate power requirement, and no licence is needed for the memory itself.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Memory upgrade or replacement for the ASR 1001-HX route processor
- Meets the 8 GB minimum DRAM needed for IOS XE software redundancy on the ASR 1001-HX
- Supports the integrated route processor, ESP and SIP functions of the ASR 1001-HX
- Matches the default memory level of the ASR 1001-HX chassis
- Draws power from the host chassis with no separate power requirement
- Sits alongside the 16 GB option (M-ASR1001HX-16GB) for the maximum memory configuration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: M-ASR1001HX-8GB (spare: M-ASR1001HX-8GB=)
- Product type: DRAM memory module for router
- Capacity: 8 GB
- Compatible chassis: Cisco ASR 1001-HX only
- ASR 1001-HX default memory: 8 GB
- ASR 1001-HX maximum memory: 16 GB (M-ASR1001HX-16GB)
- Memory architecture: shared across route processor, ESP and SIP
- Minimum DRAM for software redundancy on ASR 1001-HX: 8 GB
- ASR 1001-HX default and maximum storage: 32 GB EUSB
- Last supported software release: IOS XE 17.15

FAQs

Q: Which Cisco routers does this memory module work with?
A: It is for the Cisco ASR 1001-HX only. The ASR 1001-X and ASR 1002-HX use their own memory part numbers, so this module is not suitable for them.

Q: Does it need a licence or subscription?
A: No licence is required for the memory module itself. The ASR 1001-HX chassis runs Cisco IOS XE, which uses its own RTU and DNA-based licensing.

Q: How does this 8GB module differ from M-ASR1001HX-16GB?
A: M-ASR1001HX-8GB provides 8 GB, the default memory for the ASR 1001-HX and the minimum for software redundancy. M-ASR1001HX-16GB provides 16 GB, which is the maximum the chassis supports.

Q: What is the maximum memory the ASR 1001-HX supports?
A: The ASR 1001-HX supports up to 16 GB of DRAM. The chassis ships with 8 GB by default.

Q: Is the memory dedicated to the route processor?
A: No. On the ASR 1001-HX the memory is shared across the route processor, the ESP and the SIP.
