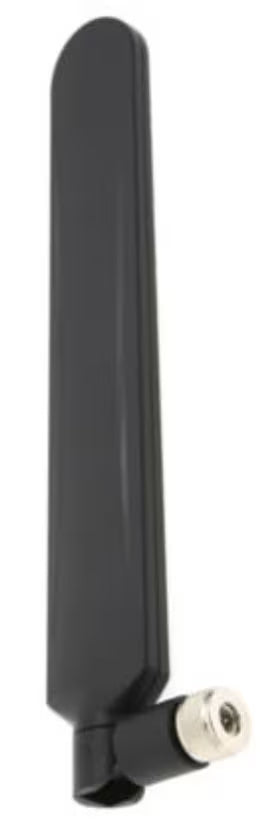

• Cisco LTE-ANTM2-SMA-D LTE SMA V2 dipole antenna with black modern design and SMA connector
1 1

Cisco

Cisco LTE-ANTM2-SMA-D | 4G LTE-A Dipole Omni Antenna, SMA Male, 617-6000 MHz

LTE-ANTM2-SMA-D

$105.00 inc. GST
$95.45 ex. GST
Sale Sold out
Shipping calculated at checkout.

85 in stock

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This indoor omnidirectional dipole antenna is part of the Cisco 4G LTE Antennas range and is built for cellular connectivity on Cisco 4G LTE, LTE-Advanced and LTE-Advanced Pro routers and pluggable modules. A male SMA connector mounts directly to any supported Cisco router or module with an SMA port, and the dual green band marking identifies LTEA support. It suits branch and industrial deployments where a reliable indoor cellular signal is needed.

The antenna covers 617-960 MHz, 1400-1700 MHz, 1710-2690 MHz, 3400-3900 MHz and 5150-6000 MHz, with vertical polarisation and 50 Ohm impedance. Peak gain is 0 dBi at 617-960 MHz, 2 dBi across 1400-2960 MHz and 5 dBi at 3400-3900 MHz and 2500-2690 MHz. Maximum RF input power is 3 W, and as a passive antenna it needs no DC power. An articulating joint locks at 0, 45 and 90 degrees for flexible positioning, and the connector has added rotational friction torque to keep it mated.

It measures 229 x 30.5 x 8.96 mm, weighs 50 g and operates from -40 to +85 C. It works with Cisco 4G LTE, LTEA and LTEAP Integrated Services Routers and pluggable modules with an SMA connector, including Catalyst IR1100 rugged routers. Two antennas are recommended to take full advantage of MIMO.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports Cisco 4G LTE, LTE-Advanced and LTE-Advanced Pro cellular routers and modules
- Articulating joint with 0, 45 and 90 degree stop positions
- Male SMA connector mounts directly on supported Cisco routers and pluggable modules with an SMA port
- Added rotational friction torque keeps the connector mated and is more finger-friendly than a classic hex nut
- Dual green band marking indicates LTEA router and module support
- Multi-band coverage from 617 MHz to 6000 MHz
- Passive design with no DC power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omnidirectional dipole
- Connector: Male SMA with added rotational friction torque
- Operating frequencies: 617-960, 1400-1700, 1710-2690, 3400-3900, 5150-6000 MHz
- Peak gain: 0 dBi (617-960 MHz)
- Peak gain: 2 dBi (1400-2960 MHz)
- Peak gain: 5 dBi (3400-3900 MHz and 2500-2690 MHz)
- Polarisation: Vertical
- Nominal impedance: 50 Ohms
- VSWR: 4.5:1 (698-960 MHz)
- VSWR: 4:1 (1400-2960, 3400-3900 and 5150-6000 MHz)
- Maximum RF input power: 3 W
- DC power: Not required for antenna operation
- Articulation: 3 stop positions (0, 45 and 90 degrees)
- Dimensions (L x W x D): 229 x 30.5 x 8.96 mm
- Weight: 50 g
- Operating temperature: -40 to +85 C
- Storage temperature: -40 to +85 C
- Installation: Indoor use

FAQs

Q: What does the dual green band on this antenna mean?
A: The dual green band marking indicates support for LTEA (LTE-Advanced) routers and modules.

Q: Does this antenna need external power?
A: No. It is a passive antenna and requires no DC power. Maximum RF input power is 3 W.

Q: What is it compatible with?
A: Cisco 4G LTE, LTEA and LTEAP Integrated Services Routers and pluggable modules that have an SMA connector, including Catalyst IR1100 rugged routers.

Q: How many antennas should I use?
A: Two antennas are recommended on MIMO-capable cellular routers to take full advantage of MIMO.

Q: Can it be installed outdoors?
A: No. This antenna is designed for indoor use.
