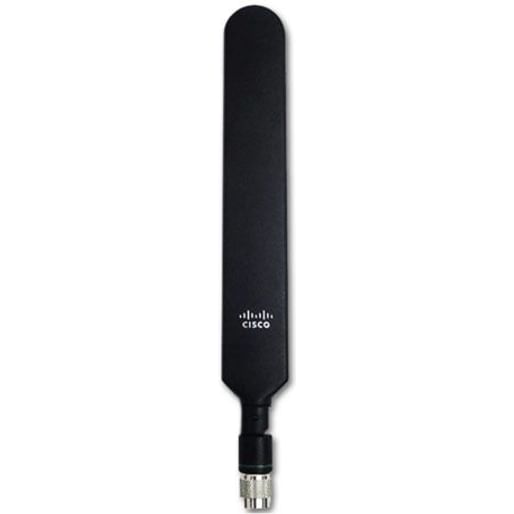

• Cisco LTE-ANTM-SMA-D black SMA dipole antenna with metallic connector
1 1

Cisco

Cisco LTE-ANTM-SMA-D | 4G LTE-Advanced SMA Dipole Antenna, 698-2690 MHz, Omni

LTE-ANTM-SMA-D

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The LTE-ANTM-SMA-D is an indoor omnidirectional dipole antenna for Cisco 3G, 4G LTE and LTE-Advanced cellular connectivity. It suits branch and industrial routers such as the ISR and IR1100 families, as well as pluggable LTE modules fitted with an SMA connector. A dual green band marks it as LTE-Advanced capable, and it is part of the Cisco 4G LTE antenna range.

The antenna covers 698-960 MHz, 1448-1511 MHz and 1710-2690 MHz, with a peak gain of 2.0 dBi, 2.8 dBi and 3.7 dBi across those three bands. It uses a male SMA connector at 50 Ohm and handles up to 5 W of RF input power. The articulating joint locks at 0, 45 and 90 degrees so the antenna can be angled for the best signal. It measures 229 x 37 x 11 mm and weighs 56.8 g. As a passive antenna it needs no DC power, software or licence.

It mounts directly on a Cisco router or pluggable module with an SMA connector. On modular routers with an LTE pluggable module, mount it on an extension cable and antenna stand rather than directly on the module. For MIMO, use two antennas and space them at least 43 cm apart where possible.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Covers 698-960, 1448-1511 and 1710-2690 MHz
- Dual green band marking indicates LTE-Advanced support
- Articulating joint with three stop positions at 0, 45 and 90 degrees
- Male SMA connector for direct mounting on Cisco routers and pluggable modules with an SMA connector
- Added rotational friction keeps the SMA connection mated and is easier on the fingers than a classic hex nut
- High standalone efficiency with peak gain below 3.7 dBi in supported bands
- Passive design with no DC power required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omnidirectional dipole, indoor use
- Frequency bands: 698-960 MHz, 1448-1511 MHz, 1710-2690 MHz
- Peak gain: 2.0 dBi (698-960 MHz), 2.8 dBi (1447-1511 MHz), 3.7 dBi (1710-2690 MHz)
- Polarisation: Vertical, linear
- Nominal impedance: 50 Ohms
- VSWR: 2.5:1 or lower (698-960 MHz), 2.5:1 or lower (1447-1511 MHz), 2.0:1 or lower (1710-2690 MHz)
- Connector: Male SMA with added rotational friction
- Maximum RF input power: 5 W
- DC power: Not required
- Articulating joint positions: 0, 45, 90 degrees
- Dimensions (L x W x D): 229 x 37 x 11 mm
- Weight: 56.8 g
- Operating temperature: -30 to +70 C
- Storage temperature: -40 to +85 C

FAQs

Q: Does this antenna need a licence or power?
A: No. It is a passive antenna and needs no software, licence or DC power. The maximum RF input power is 5 W.

Q: Which Cisco products does it work with?
A: It works with Cisco 3G/4G wireless ISRs, LTE and LTE-Advanced routers, and pluggable LTE modules with an SMA connector. It is also listed as an antenna option for the Catalyst IR1100 and ISR1100 series.

Q: Can I mount it directly on the router?
A: Yes, it mounts directly on routers with an SMA connector. On modular routers with an LTE pluggable module, use an extension cable and antenna stand instead of mounting it on the module.

Q: How many antennas do I need for MIMO?
A: Cisco recommends two antennas on cellular routers that support MIMO. Space them at least 43 cm apart for best performance, and no closer than about 22.5 cm.

Q: What does the dual green band mean?
A: The dual green band marks the antenna as supporting Cisco LTE-Advanced routers and modules.
