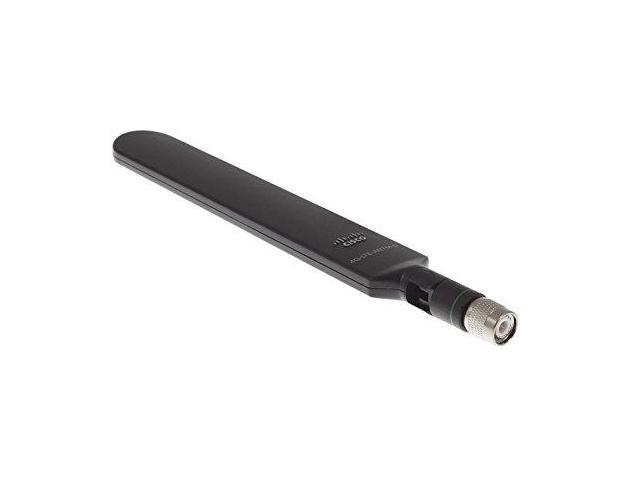

• Cisco LTE-ANTM-D black LTE articulating dipole antenna with silver connector
1 1

Cisco

Cisco LTE-ANTM-D | 4G LTE Dipole Antenna, 698-2690 MHz, TNC(m)

LTE-ANTM-D

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The LTE-ANTM-D is an indoor multiband omnidirectional dipole antenna from the Cisco 4G LTE antenna range. It suits branch routers using Cisco 4G LTE and LTE-Advanced NIMs, EHWICs and 3G/4G ISRs, including ISR 4000 series and ENCS 5400 series platforms, for primary and diversity (MIMO) cellular WAN connections. A dual green band on the antenna marks it as LTE-Advanced capable.

It covers 698-960 MHz, 1447-1511 MHz and 1710-2690 MHz, with a peak gain of 2.0 dBi, 2.8 dBi and 3.7 dBi across those bands respectively. The antenna has vertical linear polarisation and a nominal impedance of 50 ohms. A male TNC connector allows it to mount directly on any router or module with a female TNC port. The articulating joint rotates through 360 degrees with stop positions at 0, 45 and 90 degrees, so the antenna can be angled for the best signal.

The antenna is passive and needs no DC power, with a maximum RF input power of 5 W. It measures 229 x 37 x 11 mm, weighs 56.8 g and operates from -30 to +70 C. Cisco recommends fitting two antennas on routers that support MIMO to get the full benefit of the cellular link.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Covers 698-960, 1448-1511 and 1710-2690 MHz for 3G, 4G LTE and LTE-Advanced
- Articulating joint with three stop positions at 0, 45 and 90 degrees
- Male TNC connector for direct mounting on routers and modules with a female TNC port
- Dual green band identifies LTE-Advanced compatibility
- Passive design with no DC power requirement
- Suited to MIMO deployments when two antennas are fitted on supporting routers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency bands: 698-960 MHz, 1447-1511 MHz, 1710-2690 MHz
- Antenna type: Omnidirectional dipole, indoor use
- Polarisation: Vertical, linear
- Nominal impedance: 50 ohms
- Peak gain: 2.0 dBi (698-960 MHz), 2.8 dBi (1447-1511 MHz), 3.7 dBi (1710-2690 MHz)
- VSWR: 2.5:1 or lower (698-960 MHz), 2.5:1 or lower (1447-1511 MHz), 2.0:1 or lower (1710-2690 MHz)
- Maximum RF input power: 5 W
- DC power: Not required, passive antenna
- Connector: Male TNC, TNC(m), direct mount
- Articulation: 360 degree rotation, stop positions at 0, 45 and 90 degrees
- Dimensions (L x W x D): 229 x 37 x 11 mm
- Weight: 56.8 g
- Operating temperature: -30 to +70 C
- Storage temperature: -40 to +85 C
- Marking: Dual green band indicates LTE-Advanced support

FAQs

Q: Which Cisco routers and modules does this antenna work with?
A: It is designed for Cisco 4G LTE and LTE-Advanced NIMs, 4G and 4G LTE EHWICs, and 3G/4G Integrated Services Routers. It mounts directly on any Cisco router or module with a female TNC connector, such as ISR 4000 series and ENCS 5400 series LTE NIMs.

Q: Does the antenna need power?
A: No. It is a passive antenna and needs no DC power. The maximum RF input power is 5 W.

Q: How many antennas do I need for MIMO?
A: Cisco recommends using two antennas on cellular routers that support MIMO to get the full benefit of the link. One antenna serves as the primary connection and the second as the diversity connection.

Q: What does the dual green band mean?
A: The dual green band on the antenna identifies it as LTE-Advanced (LTEA) capable.

Q: Is this antenna suitable for outdoor use?
A: No. The LTE-ANTM-D is an indoor antenna, intended to mount directly on the router or module front plate.
