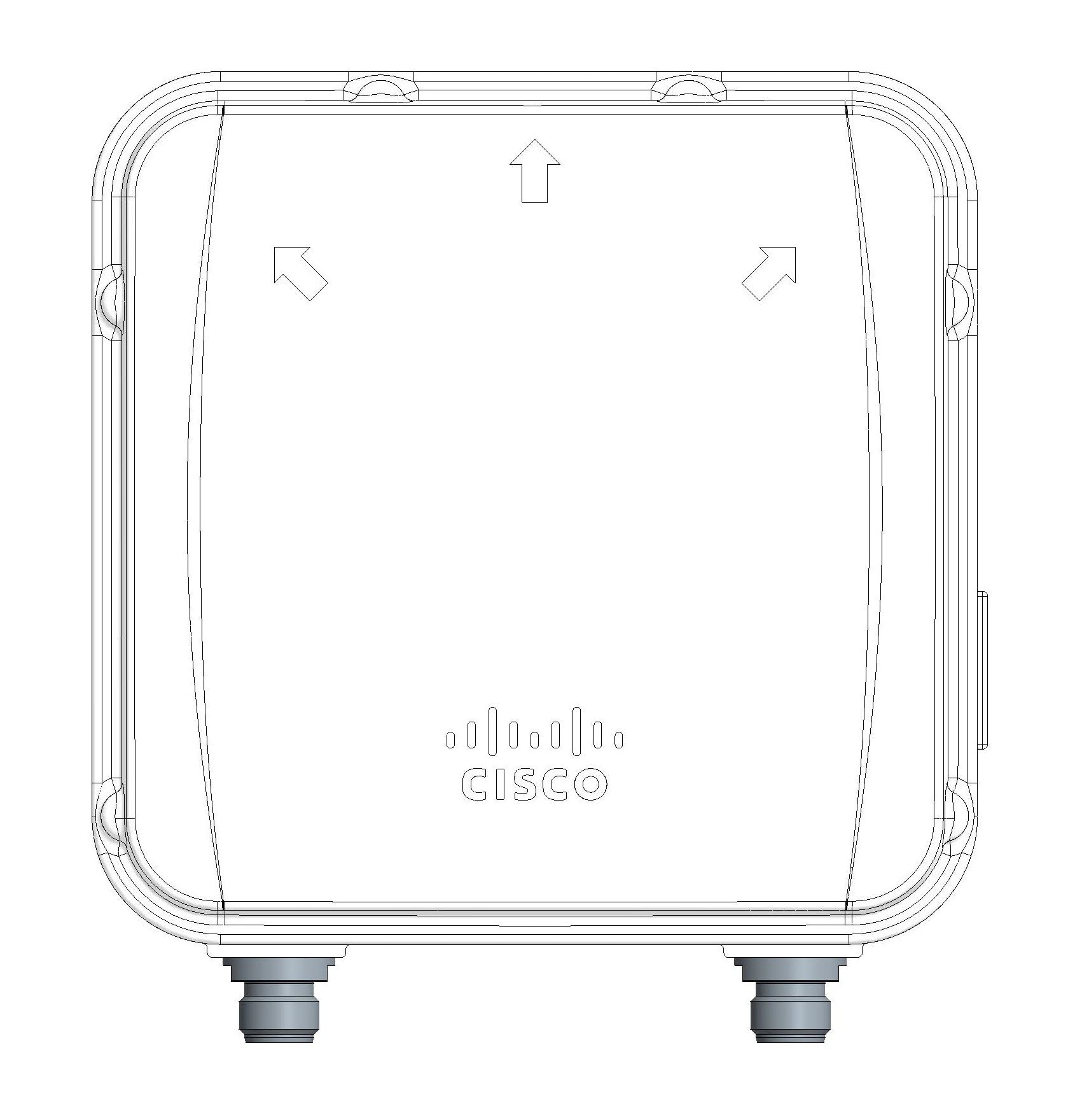

Cisco IW-ANT-PNL5615-NS | 5/6 GHz 15 dBi 2-Port SIA Panel Antenna, N(f)

IW-ANT-PNL5615-NS

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a directional, dual-port panel antenna from the Cisco Industrial Routers and Industrial Wireless Access Points Antennas range. It covers the 5 GHz and 6 GHz bands and is aimed at point-to-point communications in industrial wireless deployments, with wall or pole mounting.

The antenna delivers a maximum gain of 15 dBi across 4900-5925 MHz and 5925-7125 MHz, with a half-power beamwidth of 21 degrees vertical and 28 degrees horizontal. It provides two N(f) ports with ±45 degree polarisation, port-to-port isolation above 25 dB and a VSWR below 2.2:1. A Self-Identifying Antenna (SIA) circuit is fitted on Port 2, so that port should be connected to the access point port that supports self-identification.

The sealed housing is rated IP66 and IP67, with UL-94 V0 flammability, a 200 km/h wind rating and an operating temperature range of -40 to +85 C. It is a passive antenna and needs no power. Optional mounting kits are IW-ACC-PMK1= (pole or wall bracket with tilt and rotation) and AIR-MNT-VERT1= (standard pole or wall bracket).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 15 dBi directional gain for point-to-point industrial wireless links
- Covers both the 5 GHz and 6 GHz bands
- Self-Identifying Antenna (SIA) circuit on Port 2
- Two N(f) ports with ±45 degree polarisation
- High port-to-port isolation of more than 25 dB
- IP66 and IP67 rated housing with a 200 km/h wind rating
- Compact design for wall or pole mounting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Frequency: 4900-5925 MHz and 5925-7125 MHz
- Maximum gain: 15 dBi
- Maximum gain above +30 degrees elevation: 3 dBi
- Connectors: 2 x N(f)
- Self-Identifying Antenna (SIA) circuit: Port 2
- Polarisation: ±45 degrees
- VSWR: below 2.2:1
- Port-to-port isolation: above 25 dB
- HPBW (V, H): 21±4 degrees, 28±5 degrees
- Size: 191.3 mm x 175.3 mm x 57.8 mm (7.5 in x 6.9 in x 2.3 in)
- Wind rating: 200 km/h
- Operating temperature: -40 to +85 C
- Flammability: UL-94 V0
- IP rating: IP66, IP67
- Power: passive antenna, no power required

FAQs

Q: Which port carries the SIA circuit?
A: The Self-Identifying Antenna circuit is on Port 2. Connect Port 2 to the access point port that supports self-identification.

Q: Does this antenna need power?
A: No. It is a passive antenna and requires no power supply.

Q: What mounting options are available?
A: It can be wall or pole mounted. The optional kits are IW-ACC-PMK1= (pole or wall bracket with tilt and rotation) and AIR-MNT-VERT1= (standard pole or wall bracket).

Q: Which frequency bands does it cover?
A: It covers 4900-5925 MHz and 5925-7125 MHz, so both the 5 GHz and 6 GHz bands.

Q: What connectors does it use?
A: It has two N(f) connectors, one per port, with ±45 degree polarisation.
