• Cisco IW-ANT-PNL25613-R 2.4/5/6 GHz 13 dBi dual-pol panel antenna
1 1

Cisco

Cisco IW-ANT-PNL25613-R | Industrial 8-Port Tri-Band Panel Antenna, 13 dBi, RP-TNC

IW-ANT-PNL25613-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

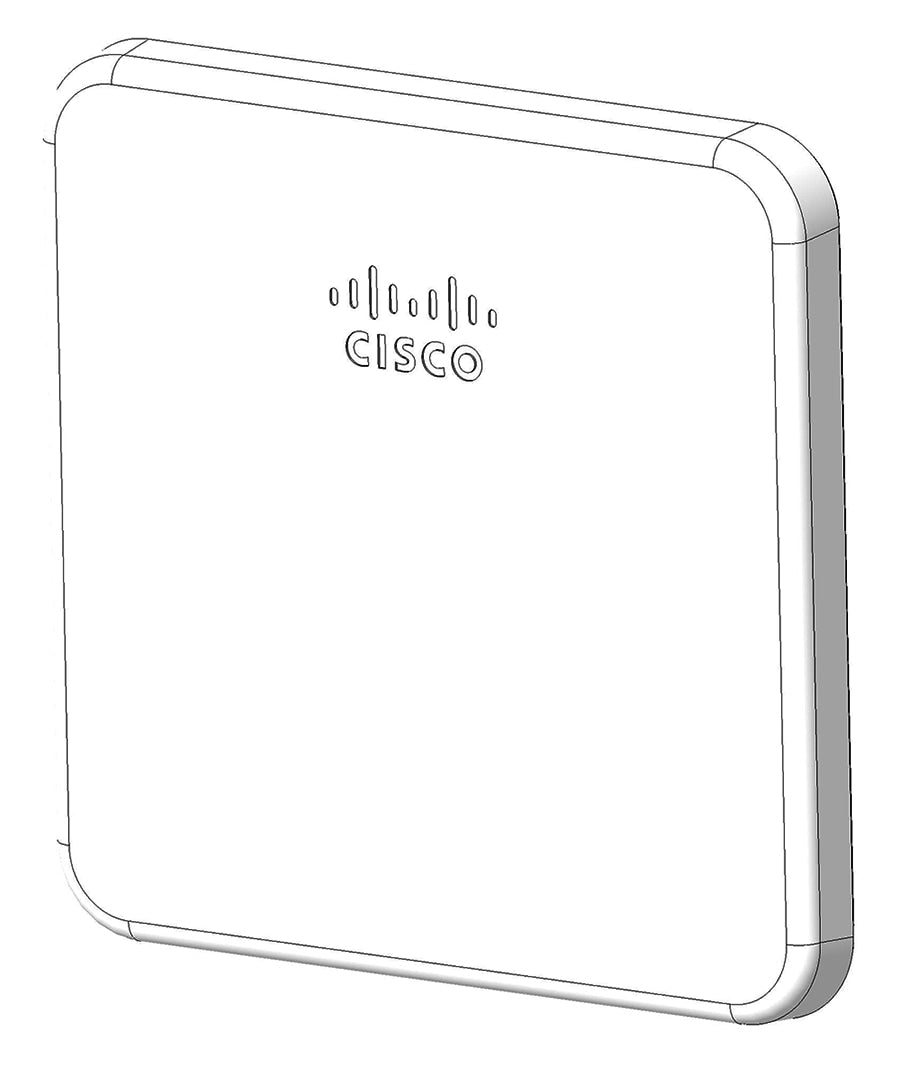

This 8-port, tri-band directional panel antenna covers the 2.4, 5 and 6 GHz bands and supports three 4x4 MIMO Wi-Fi 6E radios. It is part of the Cisco Industrial Wireless Antennas range for the Catalyst IW9167E Heavy Duty Access Point, and is designed for overhead mounting at stadiums, outdoor campuses, warehouses and industrial sites.

Peak gain is 7 dBi at 2.4 GHz and 13 dBi at both 5 GHz and 6 GHz, with a narrow 35 degree azimuth by 25 degree elevation beam at 5 and 6 GHz for extended-distance coverage. This sets it apart from the IW-ANT-PNL25610-R, which offers 9-10 dBi and a wider 75 degree beamwidth. Polarisation is dual slant at plus and minus 45 degrees, and port-to-port isolation between the 5 GHz and 6 GHz ports is 55 dB minimum for concurrent radio operation. An integrated passive L1 GNSS antenna supports location reporting for AFC.

The RP-TNC antenna connectors are paired with a TNC jack for GNSS. The IP66 and IP67 rated, UL 94 V-0 radome is built for outdoor use from -40 to +70 C. It is a passive antenna and needs no power supply. It is compatible with the Cisco Catalyst IW9167E Heavy Duty Access Point and mounts with AIR-MNT-ART1= or IW-ACC-BRK1= bracket kits on a wall, ceiling, pole or mast.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports 4x4 MIMO across the 2.4 GHz, 5 GHz and 6 GHz radio bands
- High 5 GHz to 6 GHz port isolation enables concurrent radio operation
- Integrated high-rejection coexistence filters
- Integrated passive L1 GNSS antenna for AFC location reporting
- Narrow, symmetric beamwidth at 5 and 6 GHz for extended-distance coverage
- Designed to comply with the FCC 21 dBm EIRP skyward limit across UNII-1, UNII-5 and UNII-7 bands
- IP66/IP67 rated, UV-stabilised radome with UL 94 V-0 flammability rating
- Supports Self-Identification (SIA) on ports 1 and 5

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: 8-port tri-band directional panel antenna
- MIMO: 4x4 on 2.4, 5 and 6 GHz
- Frequency: 2400-2482 MHz (ports 1-4)
- Frequency: 5170-5835 MHz (ports 1-4)
- Frequency: 5925-6875 MHz (ports 5-8)
- Peak gain: 7 dBi (2.4 GHz), 13 dBi (5 GHz), 13 dBi (6 GHz)
- Polarisation: plus and minus 45 degrees dual slant
- 3-dB azimuth beamwidth: 75 degrees (2.4 GHz), 35 degrees (5 GHz), 35 degrees (6 GHz), typical
- 3-dB elevation beamwidth: 50 degrees (2.4 GHz), 25 degrees (5 GHz), 25 degrees (6 GHz), typical
- VSWR: 2:1 maximum
- Port-to-port isolation: 20 dB minimum between ports of the same band
- Port-to-port isolation, 5 to 6 GHz: 55 dB minimum
- Connector: RP-TNC jack
- GNSS frequency: 1164-1215 MHz and 1559-1610 MHz
- GNSS maximum gain: 4 dBi
- GNSS connector: TNC jack
- Dimensions (excluding connectors): 368 x 368 x 32.1 mm
- Weight: 2.2 kg
- Operating temperature: -40 to +70 C
- Ingress protection: IP66 and IP67
- Flammability rating: UL 94 V-0

FAQs

Q: Which access point does this antenna work with?
A: It is compatible with the Cisco Catalyst IW9167E Heavy Duty Access Point. It cannot be field replaced in IW9167E-x-STA2 access point bundles.

Q: How does it differ from the IW-ANT-PNL25610-R?
A: This model delivers 13 dBi at 5 and 6 GHz with a narrow 35 degree azimuth beam for longer reach. The IW-ANT-PNL25610-R offers 9-10 dBi with a wider 75 degree beamwidth.

Q: Does it need external power?
A: No. It is a passive antenna and requires no power supply.

Q: What mounting options are available?
A: It mounts to a wall, ceiling, pole or mast using the AIR-MNT-ART1= or IW-ACC-BRK1= bracket kits.

Q: Does it include GNSS?
A: Yes. It has an integrated passive L1 GNSS antenna with up to 4 dBi gain and a TNC jack, supporting AFC location reporting.
