Cisco IW-ANT-PNL25610-R | Industrial Antenna 8-Port Tri-Band Wi-Fi 6E, Standard-Beam

IW-ANT-PNL25610-R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

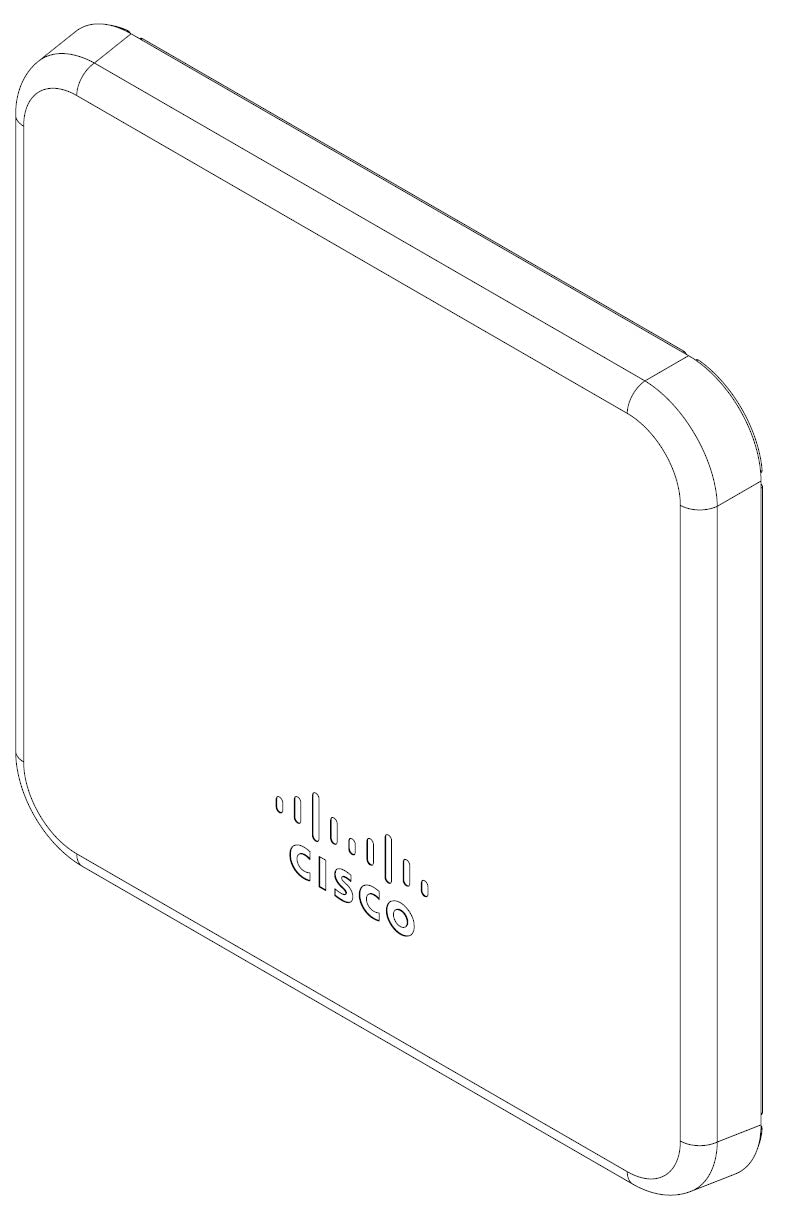

The IW-ANT-PNL25610-R is an 8-port tri-band directional panel antenna from the Cisco Industrial Wireless Antennas range, built for the Catalyst IW9167E Heavy Duty access point. It supports three 4x4 MIMO Wi-Fi 6E radios across the 2.4, 5 and 6 GHz bands and suits large public venues such as stadiums, as well as outdoor campuses, warehouses and industrial sites.

This is the standard-beam stadium panel, with peak gain of 8 dBi at 2.4 GHz, 9 dBi at 5 GHz and 10 dBi at 6 GHz. Beamwidth is 90 degrees azimuth by 45 degrees elevation at 2.4 GHz, and 75 by 28 degrees at 5 GHz and 75 by 27 degrees at 6 GHz. Ports 1 to 4 cover 2.4 and 5 GHz, and ports 5 to 8 cover 6 GHz, with at least 55 dB of isolation between the 5 and 6 GHz ports. An integrated passive L1 GNSS antenna is included for location reporting. The IP66 and IP67 rated radome is UV-stabilised and operates from -40 to +70 C. It is a passive antenna and needs no power or licence of its own.

It pairs with the Cisco Catalyst IW9167E Heavy Duty Access Point and mounts to a wall or pole using the AIR-MNT-ART1= or IW-ACC-BRK1= brackets.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports 4x4 MIMO over the 2.4 GHz, 5 GHz and 6 GHz radio bands
- High isolation between the 5 GHz and 6 GHz ports allows concurrent radio operation
- Integrated high-rejection coexistence filters
- Integrated passive L1 GNSS antenna for AFC location reporting
- Designed to comply with the FCC 21 dBm EIRP skyward limit across the UNII-1, UNII-5 and UNII-7 bands
- IP67-rated, UV-stabilised, UL 94 V-0 radome
- Self-Identification (SIA) supported on ports 1 and 5
- Wall or pole mounting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: 8-port tri-band directional panel antenna
- Frequency, ports 1-4: 2400-2482 MHz and 5170-5835 MHz
- Frequency, ports 5-8: 5925-6875 MHz
- Peak gain: 8 dBi at 2.4 GHz, 9 dBi at 5 GHz, 10 dBi at 6 GHz
- Polarisation: +/-45 degree dual slant
- 3-dB azimuth beamwidth: 90 degrees at 2.4 GHz, 75 degrees at 5 GHz, 75 degrees at 6 GHz
- 3-dB elevation beamwidth: 45 degrees at 2.4 GHz, 28 degrees at 5 GHz, 27 degrees at 6 GHz
- VSWR: 2:1 maximum
- Port-to-port isolation: 20 dB minimum between ports of the same band
- Port-to-port isolation, 5 to 6 GHz: 55 dB minimum
- Connector: RP-TNC jack
- GNSS frequency: 1164-1215 MHz and 1559-1610 MHz
- GNSS maximum gain: 3 dBi
- GNSS connector: TNC jack
- GNSS polarisation: Mixed
- GNSS VSWR: 2:1 maximum
- Dimensions: 368.3 x 368.3 x 32.0 mm
- Weight: 2.2 kg
- IP rating: IP66 and IP67
- Flammability rating: UL 94 V-0
- Operating temperature: -40 to +70 C

FAQs

Q: Which access point does this antenna work with?
A: It is designed for the Cisco Catalyst IW9167E Heavy Duty Access Point. It is also supplied factory-assembled in the IW9167EH-x-STA bundle, where it cannot be field replaced.

Q: How does it differ from IW-ANT-PNL25613-R?
A: This is the standard-beam stadium panel with 10 dBi gain at 6 GHz and a wider coverage pattern. IW-ANT-PNL25613-R is the narrow-beam version.

Q: Does it need a licence or power?
A: No. It is a passive antenna with no power requirement and no licence or subscription of its own.

Q: What mounting brackets are supported?
A: Mounting options are the AIR-MNT-ART1= pivoting pole and wall bracket and the IW-ACC-BRK1= articulating pole and wall bracket with pan and tilt.

Q: Which ports serve each frequency band?
A: Ports 1 to 4 cover 2.4 GHz and 5 GHz, and ports 5 to 8 cover 6 GHz. The GNSS antenna has its own TNC connector.
