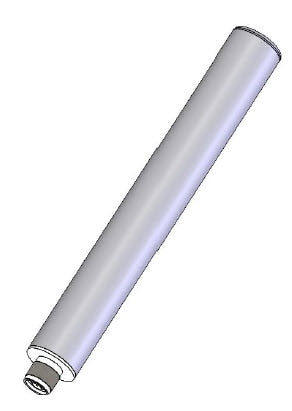

• Cisco IW-ANT-OMH-2567-N 7 dBi Omni Antenna with Silver Cylindrical Filter
1 1

Cisco

Cisco IW-ANT-OMH-2567-N | Tri-Band 7 dBi Omni Antenna, Horizontal, N-Male

IW-ANT-OMH-2567-N

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The IW-ANT-OMH-2567-N is a tri-band omnidirectional dipole antenna for Cisco industrial wireless access points. It covers the 2.4, 5 and 6 GHz bands, making it suited to indoor or outdoor Wi-Fi deployments, including 6 GHz Wi-Fi 6E and Wi-Fi 7 industrial access points, that need horizontal polarization.

Peak gain is 4 dBi in the 2.4 GHz band and 7 dBi across the 4.9, 5 and 6 GHz bands, with an omnidirectional azimuth pattern. Polarization is linear horizontal, which separates this model from the vertically polarized IW-ANT-OMV-2567-N. It weighs 168 g, uses an integrated N-male connector at 50 Ohm, has an IP67 rating, and operates from -40 to +70 °C. It is a passive antenna with a 2 W maximum input power, so no power supply is needed. A built-in EEPROM lets supported Cisco access points read the antenna type and gain and configure the wireless controller automatically.

The antenna is listed as a supported external antenna for the Cisco Catalyst IW9165D and IW9167E heavy-duty access points. It can be mounted directly on the access point through the N-male base connector, or pole-mounted with a cable when it needs to be positioned away from the access point.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Designed for interior or exterior mounted wireless network systems
- Integrated N-male connector in the base cap for direct mounting to the access point
- IP67 rating allows upright or inverted orientation outdoors
- Pole-mountable when separation from the access point is needed for optimum positioning
- Self-identifying antenna with built-in EEPROM for automatic antenna type and gain configuration on supported Cisco access points
- Covers the 6 GHz band for Wi-Fi 6E and Wi-Fi 7 industrial deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dipole, omnidirectional
- Frequency bands: 2400-2484 MHz, 4900-4990 MHz, 5170-5330 MHz, 5490-6875 MHz
- Peak gain: 4 dBi (2.4 GHz), 7 dBi (4.9/5/6 GHz)
- Average gain near horizon: 2.5 +/- 0.5 dBi (2.4 GHz), 4.5 +/- 1 dBi (4.9 GHz), 4.0 +/- 1 dBi (5.17-5.33 GHz), 3.5 +/- 1 dBi (5.49-6.875 GHz)
- Polarization: Linear, horizontal
- Azimuth plane 3 dB beamwidth: Omni-directional
- Elevation plane 3 dB beamwidth: 62° (2.4 GHz), 31° (4.9 GHz), 29° (5.17-5.33 GHz), 26° (5.49-6.875 GHz)
- VSWR, max: 2.5:1 (2.4 GHz), 2.2:1 (4.9 GHz), 2.8:1 (5.17-5.33 GHz), 2.8:1 (5.49-6.875 GHz)
- Connector: N-male, 50 Ohm, integrated in base cap
- Maximum input power: 2 W
- Ingress protection: IP67
- Operating temperature: -40 to +70 °C
- Storage temperature: -40 to +85 °C
- Wind loading (survival): 165 mph
- Weight: 168 g (0.37 lb)

FAQs

Q: Which Cisco access points does this antenna work with?
A: It is a supported external antenna for the Cisco Catalyst IW9165D and IW9167E heavy-duty access points. It mounts directly through the N-male connector, or on a pole with a cable.

Q: How does it differ from the IW-ANT-OMV-2567-N?
A: This model, IW-ANT-OMH-2567-N, is horizontally polarized and weighs 168 g. The IW-ANT-OMV-2567-N is the vertically polarized version and weighs 137 g.

Q: Does it need power or a licence?
A: No. It is a passive antenna with a maximum input power of 2 W, so it needs no power supply and has no licensing requirement.

Q: What does the self-identifying feature do?
A: A built-in EEPROM lets supported Cisco access points read the antenna type and gain and configure the wireless controller automatically, which reduces manual setup.

Q: Can it be used outdoors?
A: Yes. It is IP67 rated and operates from -40 to +70 °C, and it can be mounted upright or inverted outdoors.
