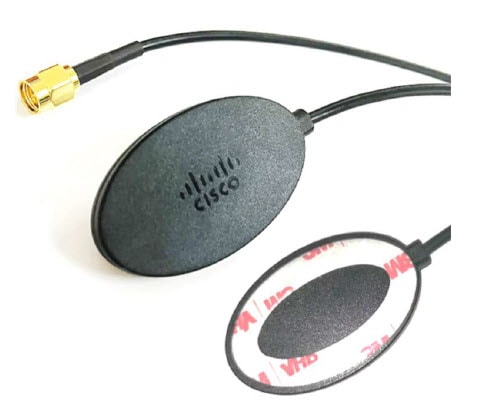

• Cisco IW-ANT-GNSS-SMA GNSS antenna with black body, gold SMA connector, and adhesive backing
1 1

Cisco

Cisco IW-ANT-GNSS-SMA | Active GNSS Antenna, 26 dB LNA, 10 ft SMA, IP65

IW-ANT-GNSS-SMA

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This active GNSS antenna adds satellite navigation reception to Cisco industrial routers and industrial wireless access points or clients. It suits mobile, transport and industrial deployments where GPS, BeiDou, GLONASS and Galileo signals are needed, indoors or outdoors. It belongs to the Cisco Industrial Routers and Industrial Wireless Access Points antenna range.

The antenna has an integrated low-noise amplifier with 26 dB gain and covers 1559 to 1610 MHz. It is fitted with 10 ft (3.05 m) of RG-174 cable terminated in an SMA-male connector, and it carries an IP65 rating with an operating temperature range of -40 to +85 C. Power is drawn from the host device through the antenna cable at 3 to 5 VDC, with typical current below 12 mA. Installation uses adhesive tape, and the Cisco logo must face the sky.

It connects to Cisco Industrial Routers and Cisco Industrial Wireless access points and clients that have an SMA GNSS port. The host port must supply 3 to 5 VDC so the active LNA can operate.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Receives GPS, BeiDou, GLONASS and Galileo satellite navigation signals
- Built-in LNA with 26 dB gain for stronger signal reception
- Low current consumption
- IP65-rated for indoor and outdoor installation
- Adhesive-tape mounting with the Cisco logo facing the sky
- Wide operating temperature range of -40 to +85 C

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Active GNSS
- Frequency: 1559 - 1610 MHz
- Constellations: GPS, BeiDou, GLONASS, Galileo
- Amplifier gain (LNA): 26 dB, +/- 2 dB
- Maximum RF input power: 1 W (30 dBm)
- Power supply: 3 - 5 VDC
- Current (typical): <12 mA +/- 2 mA
- Characteristic impedance: 50 ohms
- Connector: SMA-male
- Cable: RG-174, 10 ft (3.05 m)
- Ingress protection: IP65
- Operating temperature: -40 to +85 C
- Storage temperature: -40 to +85 C
- Antenna dimensions: 2.1 x 1.2 x 0.26 in (53 x 30 x 6.6 mm)
- Radome material: PC + ABS
- Mounting: Adhesive tape
- SMA mating torque: 3 - 5 in-lb (0.3 - 0.5 N-m)

FAQs

Q: Which Cisco devices does this antenna connect to?
A: It connects to Cisco Industrial Routers and Cisco Industrial Wireless access points and clients that have an SMA GNSS port.

Q: Does this antenna need external power?
A: It is an active antenna powered by the host device through the antenna cable. The host GNSS port must supply 3 to 5 VDC, with typical current below 12 mA.

Q: Which satellite systems does it support?
A: It receives GPS, BeiDou, GLONASS and Galileo signals across 1559 to 1610 MHz.

Q: Can it be installed outdoors?
A: Yes. It is IP65-rated and operates from -40 to +85 C, so it suits indoor and outdoor mounting.

Q: How is the antenna mounted?
A: It mounts with adhesive tape. The Cisco logo must face the sky for correct reception.
