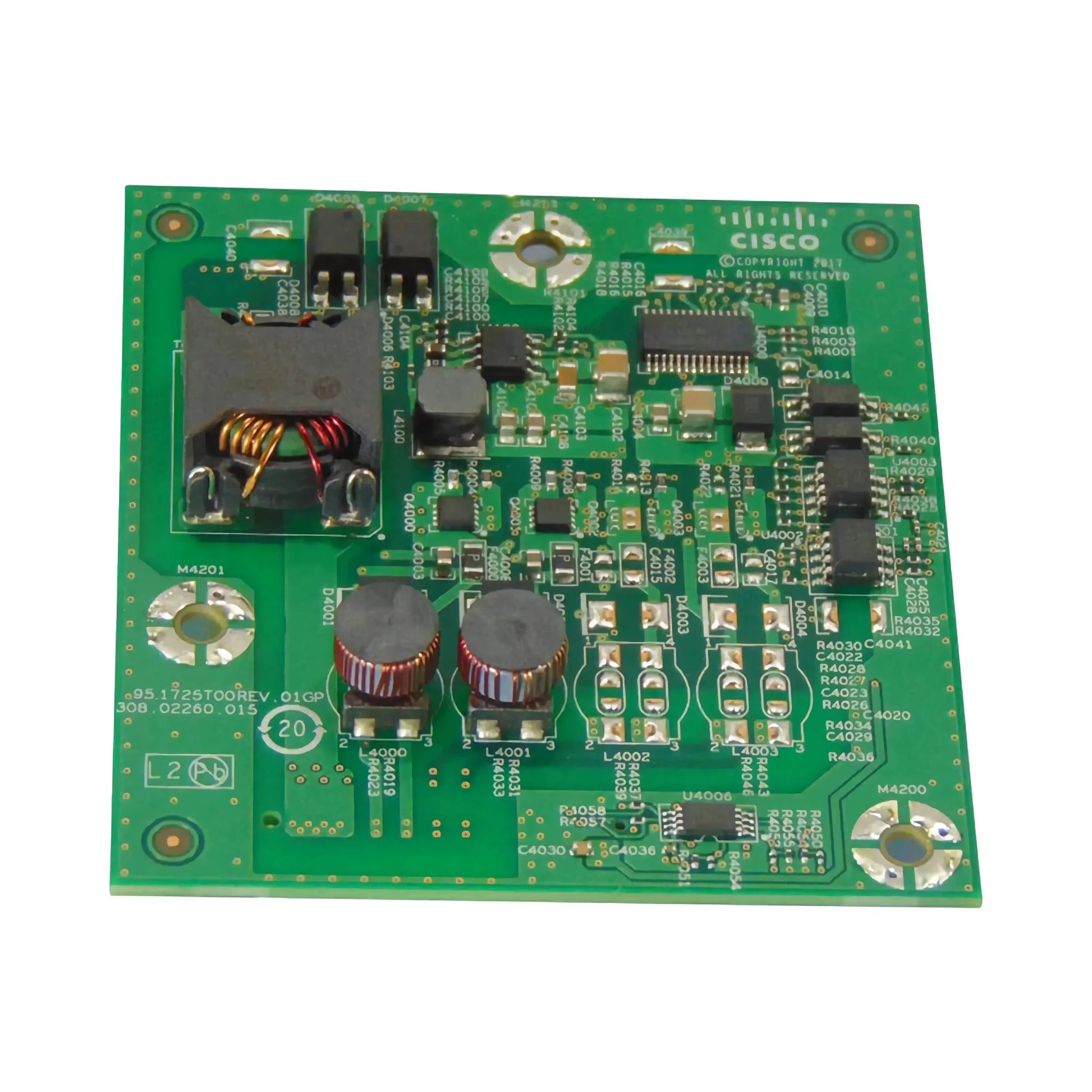

• Cisco ISR-1100-POE4 PoE module with green circuit board and Cisco logo
1 1

Cisco

Cisco ISR-1100-POE4 | ISR 1100 PoE Module, 4 PoE or 2 PoE+, 150W PSU

ISR-1100-POE4

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ISR-1100-POE4 is a Power over Ethernet module for 8-port Cisco ISR 1100 series routers. It enables PoE and PoE+ on the router's Gigabit Ethernet LAN ports, so branch and remote-office sites can power IP phones, video endpoints and 802.11ac access points directly from the router without separate injectors.

The module supports either 4 ports of PoE (802.3af) or 2 ports of PoE+ (802.3at), with an 80W total PoE budget. Each PoE port can deliver up to 15W and each PoE+ port up to 30W, and any PoE-capable port can run as PoE or PoE+ within the overall budget. PoE output voltage is -53.5 VDC. The module is paired with a 150W external power supply to carry the additional PoE load.

It is designed for Cisco 1100-8P series routers, including the C111x-8P, ISR1100-8P and ISR1100X-8P models. It is not for 4-port 1100-4P models, which use the separate ISR-1100-POE2 module. The router runs Cisco IOS XE, and the PoE module itself needs no licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enables PoE and PoE+ on the Gigabit Ethernet LAN ports of 8-port ISR 1100 routers
- Flexible port usage: any PoE-capable port can run PoE or PoE+ within the 80W budget
- Powers IP phones, video endpoints and 802.11ac access points directly from the router
- Removes the need for separate PoE injectors at branch and remote-office sites
- Host router runs Cisco IOS XE with its own software licensing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Product type: PoE module for Cisco ISR 1100 routers
- Compatible platform: Cisco 1100-8P series routers (C111x-8P, ISR1100-8P, ISR1100X-8P)
- PoE ports: 4 x PoE (802.3af) or 2 x PoE+ (802.3at) across the 8 GE LAN ports
- Total PoE power budget: 80W
- Maximum power per PoE port: 15W
- Maximum power per PoE+ port: 30W
- PoE output voltage: -53.5 VDC
- External power supply: 150W
- Router AC input voltage (base PSU): 100 to 240 VAC, 50 to 60 Hz
- Description: 1100-8P with 150W PSU (4 PoE or 2 PoE+)
- Licensing: no licence required for the module

FAQs

Q: Does the PoE module need a licence?
A: No. The PoE module itself needs no licence. The host ISR 1100 router runs Cisco IOS XE with its own software licensing.

Q: Which routers is this module for?
A: It is for Cisco 1100-8P series routers with 8 Gigabit Ethernet LAN ports, including the C111x-8P, ISR1100-8P and ISR1100X-8P models. 4-port 1100-4P routers use the separate ISR-1100-POE2 module.

Q: How much PoE power can it deliver?
A: It provides an 80W total PoE budget, which supports 4 ports of PoE at up to 15W each or 2 ports of PoE+ at up to 30W each. The output voltage is -53.5 VDC.

Q: What power supply does it need?
A: It is paired with a 150W external power supply, which supplies the router and the PoE budget on 1100-8P platforms.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
