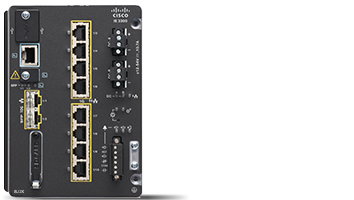

• Cisco IE-3300-8U2X-A rugged switch with 8x 1G PoE ports and 2x 10G SFP+
1 1

Cisco

Cisco IE-3300-8U2X-A | 8x 1G RJ45 (4x PoE++ 802.3bt T3), 2x 10G SFP+ uplinks | L3 | Network Advantage | Rugged Modular

IE-3300-8U2X-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Industrial Layer 3 switch with 8x 1G RJ45 access (4x PoE++ ports) and 2x 10G SFP+ uplinks to power edge devices and aggregate traffic at speed. Network Advantage license enables advanced routing and segmentation, while the rugged, fanless chassis with DIN-rail mounting and dual DC power inputs suits harsh environments. PoE budget depends on the selected power supply module.

Features

- 4x PoE++ ports to power high‑draw endpoints at the edge
- 2x 10G SFP+ uplinks for high‑speed aggregation
- Network Advantage with advanced Layer 3 feature set
- Ruggedized, fanless chassis for industrial deployments
- Dual DC inputs for power resiliency
- DIN‑rail/panel mounting for compact enclosures
- Modular expansion bay for future interface growth
- Strong security and segmentation for converged IT/OT

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Interfaces: 8x 10/100/1000BASE-T (RJ45), 4x PoE++ capable
- Uplinks: 2x 10G SFP+
- PoE standards: 802.3af/at and PoE++ (802.3bt Type 3 up to 60W per PoE++ port; total budget depends on PSU)
- Software tier: Network Advantage (Advanced L3)
- Layer 3: Static/Dynamic routing, VRF, PBR (feature set per Advantage tier)
- Industrial design: Rugged, fanless; DIN-rail or panel mounting
- Power: Dual redundant DC inputs (external PSU modules required)
- Operating temperature: Extended industrial range (typically -40°C to +75°C)
- Management: IOS XE, CLI, Web UI, SNMP, Zero‑Touch PnP
- Security: 802.1X, DHCP snooping, DAI, ACLs, segmentation features
- Timing/OT support: PTP (IEEE 1588) and industrial protocol awareness
- Modularity: Expansion slot for add-on interface modules

FAQs

Q: How many PoE-powered ports are available?
A: Four access ports support PoE++; remaining copper ports are non‑PoE.

Q: What is the maximum PoE power per port?
A: Up to 60W per PoE++ (802.3bt Type 3) port; overall PoE budget depends on the installed power supply module.

Q: Do the uplinks support 10G?
A: Yes. Two SFP+ uplinks provide 10G connectivity.

Q: Which license tier is included?
A: Network Advantage, enabling advanced Layer 3 routing and segmentation features.

Q: Is the unit suitable for harsh industrial sites?
A: Yes. It is a rugged, fanless platform with extended temperature ratings and DIN‑rail mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
