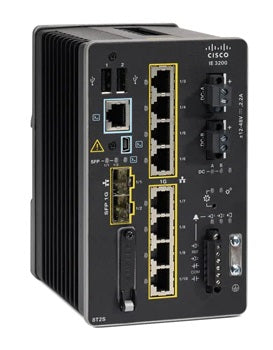

• Cisco IE-3200-8T2S-E black industrial switch with yellow accents
1 1

Cisco

Cisco IE-3200-8T2S-E | Catalyst IE3200 Rugged 8-Port Gigabit Industrial Switch, 2x 1G SFP

IE-3200-8T2S-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-3200-8T2S-E is a rugged industrial Ethernet switch designed for harsh environments in manufacturing, energy, transportation, and smart cities. This compact DIN-rail mounted switch delivers Gigabit Ethernet connectivity with 8 copper ports and 2 SFP fiber uplinks, running Cisco IOS XE with Network Essentials licensing. Built to withstand extreme temperatures from -40°C to +75°C with IP30-rated fanless design, it provides Layer 2/Layer 3 switching with advanced security features including Secure Boot, MACsec encryption, and resilient ring protocols for mission-critical industrial deployments.

Features

Cisco IOS XE operating system with perpetual Network Essentials license
- Layer 2 switching: IEEE 802.1Q VLANs, Q-in-Q tunneling, voice VLAN
- Spanning Tree: RSTP, MSTP, PVST+ with 128 instances
- Link aggregation: EtherChannel, LACP, PAgP support
- Layer 3 lite routing: Static routing, RIPv1/v2
- Multicast: IGMPv1/v2/v3 snooping, IGMP filtering and querier
- Resilient ring protocols: REP, Fast REP, MRP with sub-50ms recovery
- Security: Secure Boot, SUDI (Secure Unique Device Identifier), Cisco Trust Anchor
- MACsec-128 encryption for data-plane security
- Access control: 802.1X, DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard
- 3,000 access control entries (PACL/VACL/RACL)
- Storm control for unicast, multicast, and broadcast traffic
- Network visibility: Flexible NetFlow, SPAN, RSPAN, FSPAN
- Device management: WebUI, SNMP, syslog, CDP, LLDP, NTP
- Programmability: NETCONF, RESTCONF, YANG data models
- Dual alarm inputs (2) and alarm output (1) for integration with industrial monitoring
- RS-232 console port via RJ-45 and USB Mini Type B
- Removable storage: USB and optional SD card (SwapDrive technology)
- Wide DC voltage input range: 9.6-60V DC with dual redundant inputs
- Fanless, convection-cooled design for silent operation
- DIN rail mounting for easy cabinet installation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

8x 10/100/1000 RJ45 copper ports
- 2x 1G SFP fiber uplink ports
- Total 10 ports with line-rate switching for all packet sizes
- 2 GB DRAM, 1.5 GB Flash (user accessible)
- 8,000 MAC address table entries
- 256 VLAN support, 128 STP instances
- 8 priority queues, QoS support
- Jumbo frame support up to 8,996 bytes
- Redundant DC power inputs: 9.6-60V DC
- Power consumption: 23W (non-PoE model)
- Operating temperature: -40°C to +75°C
- IP30-rated fanless metal enclosure
- DIN rail mountable
- Dimensions: 15.2 x 9.1 x 13.5 cm (6 x 3.6 x 5.3 in)
- MTBF: 641,000 hours
- Cisco IOS XE operating system
- Management: WebUI, CLI, SNMP, NETCONF, RESTCONF/YANG APIs
- Optional SD card support (4 GB capacity)

FAQs

Q: Does the IE-3200-8T2S-E support Power over Ethernet?
A: No, this model does not support PoE. It is a non-PoE version focused on high-speed data connectivity. For PoE requirements, consider the IE-3200-8P2S-E which supports PoE+ up to 240W.

Q: What Layer 2 and Layer 3 features does this switch support?
A: The switch supports comprehensive Layer 2 features including VLANs, Q-in-Q tunneling, RSTP/MSTP/PVST+, EtherChannel, and LACP. For Layer 3, it includes static routing and RIP with the Network Essentials license tier.

Q: Can this switch operate in outdoor or extreme industrial environments?
A: Yes, the IE-3200-8T2S-E is specifically designed for harsh environments with an operating temperature range of -40°C to +75°C, IP30-rated fanless enclosure, and compliance with industrial standards including IEEE 1613 and IEC 61850-3 for substations and power utilities.

Q: What resilience and redundancy features are included?
A: The switch includes dual DC power inputs for redundancy, REP (Resilient Ethernet Protocol) and MRP (Media Redundancy Protocol) with sub-50ms recovery time, and SwapDrive SD-card technology for zero-touch field replacement. MTBF is rated at 641,000 hours.

Q: How is the IE-3200-8T2S-E managed and configured?
A: Management options include an intuitive WebUI, CLI via RS-232 console or USB Mini Type B, SNMP, Cisco DNA Center, Industrial Network Director, and programmable APIs via NETCONF and RESTCONF/YANG for automation and DevOps integration.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
