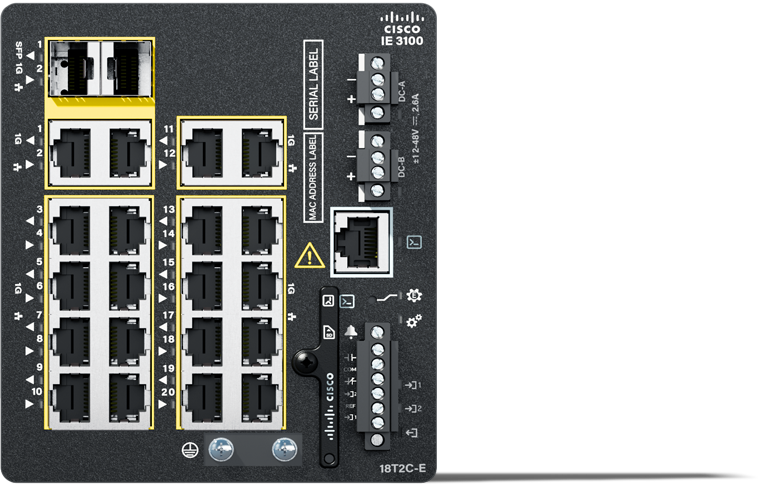

• Cisco IE-3105-18T2C-E switch with 18x 1G ports and black yellow accents
1 1

Cisco

Cisco IE-3105-18T2C-E | Catalyst IE3100 Rugged 18-Port Gigabit Industrial Switch, 2x 1G SFP/RJ45

IE-3105-18T2C-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-3105-18T2C-E is a rugged industrial Ethernet switch built for harsh environments in manufacturing, energy, utilities, and transportation. Featuring 18 Gigabit copper ports and 2 combo uplinks, this fanless, DIN-rail mountable Layer 2 switch operates from -40°C to +75°C and supports advanced automation protocols including EtherNet/IP, PROFINET, and Modbus. Network Essentials license includes Layer 2 NAT, VLAN segmentation, and industrial-grade resiliency features for mission-critical OT infrastructure.

Features

Layer 2 managed Gigabit Ethernet switch with advanced switching capabilities
- Support for up to 256 VLANs for network segmentation
- Layer 2 Network Address Translation (L2NAT) for duplicate IP integration
- Industrial automation protocol support: EtherNet/IP, PROFINET, Modbus
- Spanning Tree Protocol: STP, RSTP, MSTP, PVST+
- Quality of Service (QoS): 802.1p traffic prioritization, rate limiting, 8 egress queues per port
- IGMP snooping (supports up to 512 IGMP groups)
- Access Control Lists (ACLs) for enhanced security
- Resilient Ethernet Protocol (REP) and Media Redundancy Protocol (MRP) for network redundancy
- Dual redundant DC power inputs with fast failover (6ms)
- Cisco IOS XE with Secure Boot, image signing, and Cisco Trust Anchor Module (TAm)
- API-driven configuration with NETCONF, RESTCONF, and YANG data models
- Cisco DNA Center ready for centralized management and automation
- Fanless, compact, DIN-rail mountable design optimized for space-constrained deployments
- Rugged IP30-rated metal housing for dust, vibration, and EMI immunity
- Extended operating temperature range: -40°C to +75°C
- Support for industrial-grade SFP modules rated for -40°C to +85°C
- Alarm inputs for external dry contact sensing
- SD card slot for optional removable storage
- Console access via RS-232 (RJ-45) and Micro USB

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

18 x 10/100/1000Base-T Gigabit Ethernet copper ports (RJ-45)
- 2 x 1G dual-media combo uplink ports (SFP or RJ-45)
- Layer 2 managed switch with Network Essentials feature set
- Switching capacity: 20 Gbps
- Forwarding rate: 14.88 Mpps
- DRAM: 4 GB
- MAC address table: 8,000 entries
- VLAN support: up to 256 VLANs
- Layer 2 Network Address Translation (L2NAT) support
- Operating system: Cisco IOS XE
- Management: CLI, WebUI, SNMP v1/v2c/v3, Cisco DNA Center, RESTCONF, NETCONF
- Power input: Dual redundant DC (12-48 VDC nominal, 9.6-60 VDC absolute)
- Power consumption: 36.7W
- Operating temperature: -40°C to +75°C
- Fanless design (passive cooling)
- Dimensions (H x W x D): 5.00 x 4.30 x 5.08 in (12.70 x 10.92 x 12.90 cm)
- Weight: 2.8 lb (1.27 kg)
- Mounting: DIN rail
- Console ports: 1 x RS-232 (RJ-45), 1 x Micro USB
- Optional SD card storage slot

FAQs

Q: What industrial automation protocols does the IE-3105-18T2C-E support?
A: The switch natively supports EtherNet/IP (CIP), PROFINET, and Modbus protocols, making it ideal for integration with PLCs, sensors, and industrial controllers in manufacturing and utilities environments.

Q: What is Layer 2 Network Address Translation (L2NAT) and when is it needed?
A: L2NAT allows the switch to integrate devices with duplicate or overlapping IP addresses into the same network, a common scenario when connecting third-party OEM machinery or legacy equipment in industrial environments without reconfiguring device IPs.

Q: Can this switch operate in extreme temperatures and harsh conditions?
A: Yes, the IE-3105-18T2C-E is designed for extended industrial environments with an operating temperature range of -40°C to +75°C. Its fanless, rugged metal housing is built to withstand dust, vibration, electrical noise, and other challenging conditions typical in utilities, transportation, and manufacturing.

Q: Does this model include Power over Ethernet (PoE)?
A: No, the IE-3105-18T2C-E does not support PoE. If you need PoE capability for powering IP cameras, wireless access points, or other devices, consider alternative models in the Catalyst IE3100 series with PoE+ support.

Q: What is included with the Network Essentials license?
A: The Network Essentials perpetual license includes advanced Layer 2 switching features such as VLANs, Spanning Tree Protocol variants (STP/RSTP/MSTP), IGMP snooping, QoS, ACLs, Layer 2 NAT, and support for industrial protocols. It is a full-featured license suitable for most industrial deployments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
