• Cisco IE-3100H-8T-E switch with 10G SFP+ module
1 1

Cisco

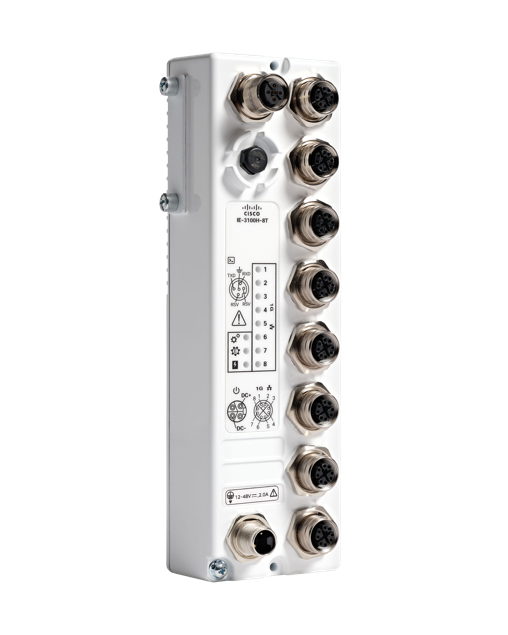

Cisco IE-3100H-8T-E | Catalyst IE3100 Heavy Duty 8-Port Gigabit Industrial Switch, IP67, M12

IE-3100H-8T-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-3100H-8T-E is an IP67-rated industrial Ethernet switch designed for extreme environments exposed to dust, vibration, and water. With 8 Gigabit M12 X-coded ports and Cisco IOS XE, it delivers secure, resilient connectivity for rail, mining, manufacturing, and outdoor industrial deployments. Wall-mountable in any orientation and managed via Catalyst Center or WebUI, this switch supports industrial protocols including PROFINET and EtherNet/IP.

Features

Cisco IOS XE operating system with Secure Boot and image signing
- Hardware-based Cisco Trust Anchor module for secure authentication
- Layer 2 switching with VLAN support (2,000 VLANs)
- Industrial protocol support: PROFINET, EtherNet/IP, Modbus
- Resilient Ethernet Protocol (REP) and Media Redundancy Protocol (MRP)
- IEEE 1588v2 Precision Time Protocol (PTP) for time synchronization
- Quality of Service (QoS) with 8 egress queues per port
- Dynamic ARP Inspection (DAI) and IP Source Guard
- Zero Trust Network Access (ZTNA) with Cisco Secure Equipment Access
- Auto-negotiation, auto-MDIX, and cable diagnostics
- SD card slot for optional storage expansion
- IP66/IP67 and NEMA Type 4 environmental protection
- Conformal coating available for extreme conditions
- Wall-mountable without external housing cabinet
- Fanless, silent operation for clean rooms and vibration-prone areas

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

8 x 10/100/1000 Gigabit Ethernet M12 X-coded ports
- No PoE support
- IP66/IP67 rated for dust and water submersion protection
- Operating temperature: -40°C to 75°C
- Power input: 12-48 VDC (9.6-60 VDC absolute range)
- Power consumption: 12.14W @ 9.6V, 12.60W @ 60V
- MAC address table: 8,000 entries
- VLAN support: 2,000 VLANs
- Memory: 4 GB DRAM, 1.5 GB Flash (SD card optional)
- Dimensions: 20.07 x 6.88 x 5.33 cm (7.90 x 2.71 x 2.10 in)
- Weight: 0.738 kg
- Wall-mountable in all orientations
- Fanless design for silent operation
- Management: CLI, WebUI, SNMP, NETCONF, RESTCONF, Cisco Catalyst Center

FAQs

Q: What environments is the IE-3100H-8T-E designed for?
A: This switch is IP67-rated and built for harsh industrial environments including rail, mining, manufacturing, outdoor spaces, and entertainment venues. It withstands extreme exposure to dust, vibration, water, and operates from -40°C to 75°C.

Q: What type of connectors does this switch use?
A: The IE-3100H-8T-E features 8 M12 X-coded (8-pin) connectors for Gigabit Ethernet. M12 connectors are industrial-grade, vibration-resistant, and designed for secure locking in harsh environments.

Q: Does this model support Power over Ethernet?
A: No, the IE-3100H-8T-E does not support PoE. It provides 8 Gigabit Ethernet data ports only. If PoE is required, consider the IE3100 Rugged Series models with PoE capability.

Q: What software license does the IE-3100H-8T-E include?
A: This switch ships with Cisco Network Essentials software license, providing Layer 2 switching, industrial protocols, security features, and redundancy protocols such as MRP and REP.

Q: Can the IE-3100H-8T-E be managed remotely?
A: Yes, the switch supports management via Cisco Catalyst Center, WebUI, CLI, SNMP, NETCONF, RESTCONF, and Modbus. It runs Cisco IOS XE with API-driven configuration and open data models.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
