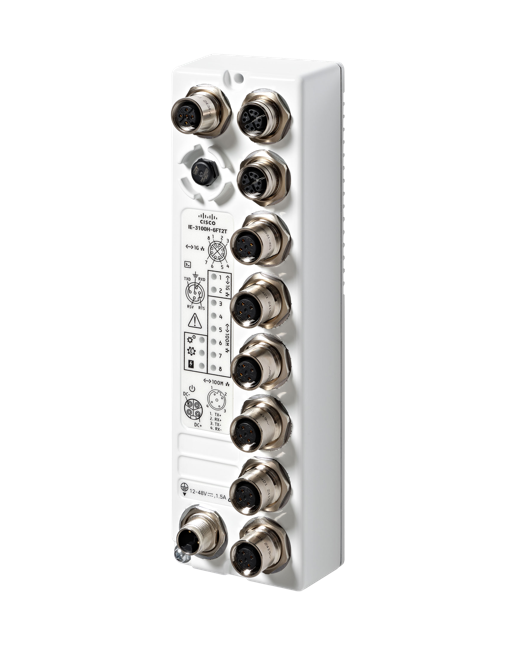

• Cisco IE-3100H-6FT2T-E IP67 M12 industrial switch panel
1 1

Cisco

Cisco IE-3100H-6FT2T-E | Catalyst IE3100 Heavy Duty 6-Port Fast Ethernet Industrial Switch, IP67, M12

IE-3100H-6FT2T-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-3100H-6FT2T-E is an IP67-rated compact industrial managed switch designed for extreme environments exposed to dust, vibration, and water. Built for manufacturing, transportation, mining, and rail applications, it delivers reliable connectivity through 6 Fast Ethernet M12 D-coded ports and 2 Gigabit Ethernet M12 X-coded uplinks. Running Cisco IOS XE with Secure Boot and Trust Anchor, it provides enterprise-grade security and can be managed via Cisco Catalyst Center or WebUI.

Features

IP66/IP67-rated enclosure for protection against dust and water submersion
- Fanless design for silent operation in extreme temperatures (-40°C to +75°C)
- Cisco IOS XE operating system with built-in security, Secure Boot, and Trust Anchor
- Industrial protocol support: Ethernet/IP (CIP), Modbus, PROFINET
- Media Redundancy Protocol (MRP) and Resilient Ethernet Protocol (REP) for network resiliency
- Zero-Trust Network Access (ZTNA) support with Cisco Secure Equipment Access
- API-driven configuration with open APIs and data models
- Express Setup button for simplified initial configuration
- VLAN support (IEEE 802.1Q) for network segmentation
- DHCP snooping and Dynamic ARP Inspection for enhanced security
- Remote monitoring (RMON) for network performance analysis
- Wall-mountable in all orientations without cabinet requirement
- Compact form factor ideal for space-constrained installations
- Dual DC power input range (9.6-60V DC) for flexible deployment
- Management via Cisco Catalyst Center, WebUI, CLI, or SNMP

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Port Configuration: 6x 10/100 Fast Ethernet M12 D-coded ports, 2x 10/100/1000 Gigabit Ethernet M12 X-coded uplink ports
- Console Port: 1x A-coded M12 console port
- Operating System: Cisco IOS XE with Secure Boot, image signing, and Trust Anchor module
- Management: CLI, WebUI, SNMP, Cisco Catalyst Center
- Layer Support: Layer 2/Layer 3 features
- Power Input: 12-48V DC (marked range), 9.6-60V DC absolute range
- Power Consumption: Approximately 10.4W typical, 12.6W maximum
- Environmental Rating: IP66/IP67, NEMA Type 4
- Operating Temperature: -40°C to +75°C
- Dimensions (H x W x D): 20.07 x 6.88 x 5.33 cm (7.90 x 2.71 x 2.10 in)
- Weight: 0.754 kg (including dust caps)
- Mounting: Wall-mountable in all orientations
- Compliance: IEEE 802.1Q, 802.1w, 802.1s, 802.1x, 802.1p, 802.1D, 802.1ab, 802.3ad, 802.3ah, 802.3u, 802.3ab, 802.3z

FAQs

Q: What environments is the IE-3100H-6FT2T-E designed for?
A: The IE-3100H-6FT2T-E is specifically engineered for harsh industrial environments including factory floors, railways and trains, mining operations, clean rooms, and outdoor spaces. Its IP67 rating protects against dust ingress and water immersion, while the fanless design withstands extreme temperatures from -40°C to +75°C, vibration, and shock.

Q: What are M12 connectors and why are they used on this switch?
A: M12 connectors are industrial-grade circular connectors designed for harsh environments. The IE-3100H uses D-coded M12 connectors for Fast Ethernet ports and X-coded M12 connectors for Gigabit Ethernet uplinks. These provide superior vibration resistance, environmental sealing, and reliability compared to standard RJ45 connectors in industrial applications.

Q: What software license does this model include?
A: The IE-3100H-6FT2T-E comes with the Network Essentials software license, which provides Layer 2 and basic Layer 3 features including VLANs, DHCP snooping, dynamic ARP inspection, industrial protocols like PROFINET and Ethernet/IP, and resiliency features like MRP and REP. Cisco Catalyst Center licenses are optional add-ons.

Q: Can this switch be mounted outdoors without a protective cabinet?
A: Yes, the IE-3100H-6FT2T-E can be wall-mounted in all orientations and deployed outdoors without a housing cabinet, provided all M12 cables are properly mated and torqued or dust caps are attached. The IP67 rating ensures protection from environmental exposure when correctly installed.

Q: Does this model support Power over Ethernet (PoE)?
A: No, the IE-3100H-6FT2T-E is a non-PoE model. It does not provide power to connected devices. If PoE is required for your industrial application, consider the Cisco IE3100 Rugged Series which offers PoE/PoE+ models with DIN-rail mounting.
