• Cisco IE-3100-8P2C-E switch with 8x 1G PoE+ ports and 2x 1G combo uplinks
1 1

Cisco

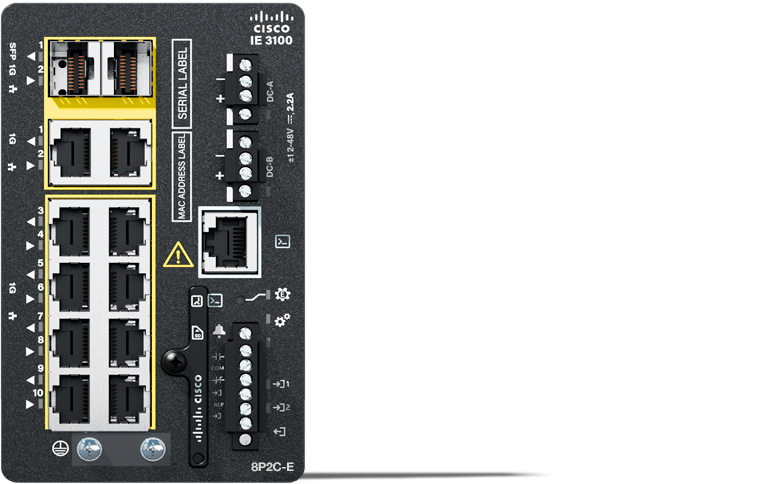

Cisco IE-3100-8P2C-E | Catalyst IE3100 Rugged 8-Port Gigabit PoE+ Switch, 240W, 2x 1G SFP/RJ45

IE-3100-8P2C-E

3 in stock

$6,319.50 AUD
$6,319.50 AUD
$6,319.50 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-3100-8P2C-E is a compact, industrial-grade managed switch designed for harsh environments in manufacturing, energy, transportation, and smart cities. Featuring 8 Gigabit PoE+ ports with a 240W power budget and 2 combo uplinks, this DIN rail-mountable switch delivers reliable Layer 2 connectivity for powering IP cameras, wireless access points, sensors, and industrial IoT devices in extreme conditions from -40°C to +75°C.

Features

Layer 2 switching with wire-speed forwarding on all ports
- IEEE 802.3af/at PoE and PoE+ support with dynamic power allocation
- Media Redundancy Protocol (MRP) for industrial network resiliency
- Resilient Ethernet Protocol (REP) for fast failover
- 802.1Q VLAN support (up to 256 VLANs)
- 802.1p Quality of Service (QoS) for traffic prioritization
- IGMP snooping (512 groups) for efficient multicast management
- Spanning Tree Protocol (STP, RSTP, MSTP) for loop prevention
- Port security and 802.1X authentication for network access control
- Access control lists (ACLs) for traffic filtering
- Link Aggregation Control Protocol (LACP) for port bundling
- Cisco IOS XE operating system with Secure Boot and image signing
- Cisco Trust Anchor module for hardware-based security
- WebUI for simplified configuration and monitoring
- Cisco Catalyst Center support for centralized management
- Auto-MDIX and auto-negotiation on all copper ports
- Cable diagnostics for troubleshooting
- Environmental monitoring with dry-contact alarm inputs and relay output
- Universal image for simplified software management
- Open APIs for programmability and automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

8x 10/100/1000BASE-T PoE+ RJ45 downlink ports (up to 30W per port)
- 2x Gigabit Ethernet combo uplink ports (RJ45/SFP)
- Total PoE power budget: 240W (PoE/PoE+, 802.3af/at)
- Switching bandwidth: 20 Gbps
- Forwarding rate: 14.88 Mpps (wire-speed)
- MAC address table: 8,000 entries
- VLAN support: 256 VLANs
- Operating system: Cisco IOS XE with Secure Boot and Trust Anchor module
- Network Essentials license (perpetual, included)
- Power input: Dual DC 12-54V nominal (9.6-60V absolute), active-standby redundancy
- Power consumption: 20W (switch only, excluding PoE load)
- Operating temperature: -40°C to +75°C (-40°F to +167°F)
- Management: CLI (RS-232 console, Micro USB), WebUI, SNMP, Cisco Catalyst Center compatible
- Mounting: DIN rail mountable
- Dimensions: 5.00 x 3.00 x 5.12 in (12.70 x 7.62 x 13.00 cm)
- Weight: 2.3 lb (1.04 kg)
- Console ports: 1x RS-232 via RJ-45, 1x Micro USB
- Alarm inputs/outputs: 2 dry-contact alarm inputs, 1 relay alarm output
- Fanless design for silent operation
- Removable SD card slot for storage
- Certifications: UL, cUL, CE, FCC, ATEX, IECEx, NEMA TS2, EN50155, IEC 62443-4-2

FAQs

Q: What is the maximum PoE power budget and how is it distributed?
A: The IE-3100-8P2C-E provides a total PoE budget of 240W across all 8 PoE+ ports, with each port capable of delivering up to 30W per port (IEEE 802.3at). The power budget dynamically allocates power based on connected device requirements.

Q: Can this switch operate in extreme temperatures and harsh industrial environments?
A: Yes, this switch is purpose-built for harsh environments with an operating temperature range of -40°C to +75°C. It features a ruggedized, fanless design suitable for manufacturing floors, outdoor installations, substations, oil and gas facilities, and transportation infrastructure.

Q: What industrial protocols does the IE-3100-8P2C-E support?
A: The switch supports industrial automation protocols including EtherNet/IP (CIP), Modbus TCP, and PROFINET, making it compatible with PLCs, HMIs, drives, and other industrial control systems commonly used in OT environments.

Q: Does this switch support redundant power inputs?
A: Yes, the IE-3100-8P2C-E features dual DC power inputs (DC-A and DC-B) operating in active-standby redundancy mode. The input with the higher voltage supplies power to the switch, providing power failover protection for mission-critical applications.

Q: Is the Network Essentials license perpetual or subscription-based?
A: The Network Essentials license included with the IE-3100-8P2C-E is perpetual and does not require renewal or subscription fees. This license provides Layer 2 switching features, security, and management capabilities suitable for most industrial deployments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
