• Cisco IE-3100-18T2C-E 18-port black and gold network switch
1 1

Cisco

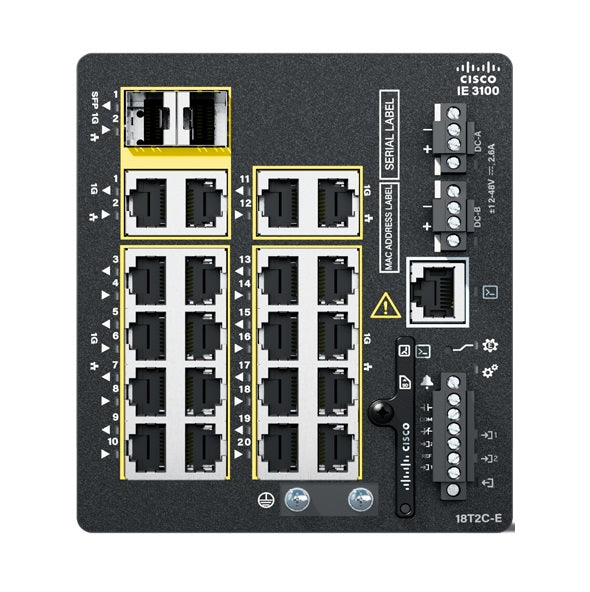

Cisco IE-3100-18T2C-E | Catalyst IE3100 Rugged 18-Port Gigabit Industrial Switch, 2x 1G SFP/RJ45

IE-3100-18T2C-E

2 in stock

$4,583.70 AUD
$4,583.70 AUD
$4,583.70 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-3100-18T2C-E is a ruggedized industrial Ethernet switch designed for harsh environments in manufacturing, energy, transportation, and critical infrastructure. With 18 Gigabit copper ports, 2 combo uplinks, and fanless operation from -40°C to 75°C, it delivers reliable Layer 2 connectivity with Network Essentials features. Running Cisco IOS XE with Secure Boot and Trust Anchor, it supports industrial automation protocols including PROFINET, Modbus, EtherNet/IP, and IEEE 1588v2 PTP for seamless OT integration.

Features

Cisco IOS XE operating system with Secure Boot, image signing, and Trust Anchor module
- Layer 2 switching with static routing and Layer 2 NAT
- Industrial automation protocol support: EtherNet/IP, Modbus, PROFINET
- Precision Time Protocol (IEEE 1588v2 PTP) for time-sensitive networking
- Resilient Ethernet Protocol (REP) and Media Redundancy Protocol (MRP) for network resiliency
- Dual DC power inputs with active-standby redundancy (9.6-60 VDC)
- Fanless, compact DIN-rail form factor for space-constrained installations
- Extended operating temperature: -40°C to 75°C
- IP30 enclosure with shock and vibration resistance
- VLANs, port security, 802.1X authentication, DHCP snooping, Dynamic ARP Inspection
- Quality of Service (QoS) with 8 egress queues per port
- IGMP snooping, MLD snooping, and storm control
- SPAN and RSPAN for network monitoring
- SD card support for storage and configuration backup
- Cisco Catalyst Center and WebUI management
- Zero-Touch Provisioning (ZTP) and API-driven configuration via NETCONF/RESTCONF
- Secure Equipment Access with Zero-Trust Network Access (ZTNA) for remote OT asset maintenance
- Universal image for simplified software management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 20 Gigabit Ethernet
- Downlink Ports: 18x 10/100/1000 RJ45
- Uplink Ports: 2x 1G Combo (RJ45/SFP)
- Switching Capacity: 20 Gbps
- Forwarding Rate: Up to 29.76 Mpps
- Software: Cisco IOS XE with Network Essentials license
- Memory: 4 GB DRAM
- MAC Address Table: 8,000 entries
- VLANs Supported: 256
- Power Input: Dual DC inputs, 12-48 VDC nominal (9.6-60 VDC absolute)
- Power Consumption: 36.7W (typical)
- Operating Temperature: -40°C to 75°C (cabinet dependent)
- Cooling: Fanless
- Dimensions (H x W x D): 5.00 x 4.30 x 5.08 in (12.70 x 10.92 x 12.90 cm)
- Weight: 2.8 lb (1.27 kg)
- Mounting: DIN rail, IP30 enclosure
- Console Ports: 1x RS-232 (RJ-45), 1x Micro USB
- MTBF: 642,050 hours
- Management: CLI, WebUI, SNMP v1/v2/v3, NETCONF, RESTCONF, YANG models
- Certifications: Industrial hardened, shock and vibration resistant, wide temperature rated

FAQs

Q: What industrial protocols does the IE-3100-18T2C-E support?
A: The switch natively supports EtherNet/IP (CIP), Modbus TCP, PROFINET, IEEE 1588v2 Precision Time Protocol (PTP), Resilient Ethernet Protocol (REP), and Media Redundancy Protocol (MRP), making it ideal for SCADA systems, factory automation, and process control applications.

Q: Does this model support Power over Ethernet?
A: No, the IE-3100-18T2C-E is a non-PoE model. For PoE support, consider the IE-3100-8P2C-E or IE-3100-10P2S-E models, which offer PoE+ on downlink ports with power budgets up to 240W.

Q: What is the Network Essentials license and what features does it include?
A: Network Essentials is a perpetual license tier included with this switch that provides Layer 2 switching, static inter-VLAN routing (Layer 3 lite), VLANs, port security, 802.1X authentication, QoS, and industrial protocol support. It is suitable for most industrial and extended enterprise deployments.

Q: Can this switch operate in extreme outdoor or industrial environments?
A: Yes, the IE-3100-18T2C-E is engineered for harsh conditions with fanless cooling, an operating temperature range of -40°C to 75°C, shock and vibration resistance, and dual redundant DC power inputs. It is ideal for oil and gas, utilities, transportation, mining, and outdoor cabinet installations.

Q: How is the switch managed and configured?
A: The IE-3100-18T2C-E can be managed via Cisco Catalyst Center for centralized control, a modern WebUI for simple local configuration, or traditional CLI. It supports zero-touch provisioning, NETCONF, RESTCONF, and YANG data models for automated, API-driven deployments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
