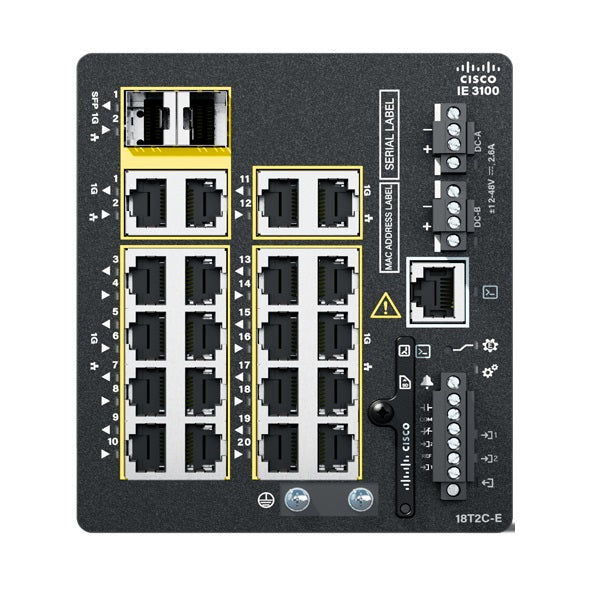

• Cisco IE-3100-18T2C-CC-E 18-port black and gold network switch
1 1

Cisco

Cisco IE-3100-18T2C-CC-E | Catalyst IE3100 Rugged 18-Port Gigabit Switch, 2x 1G SFP/RJ45, Conformal Coating

IE-3100-18T2C-CC-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco IE-3100-18T2C-CC-E is a compact industrial Gigabit switch engineered for harsh environments in manufacturing, utilities, transportation, and oil & gas. With 18 copper downlinks, 2 combo uplinks, and conformal coating for moisture and dust protection, this fanless DIN-rail switch operates reliably from -40 to 75°C. Running Cisco IOS XE with Network Essentials, it delivers Layer 2 switching, dual DC power inputs, and native support for industrial protocols including PROFINET, Modbus, and EtherNet/IP.

Features

Cisco IOS XE operating system with built-in security, Secure Boot, image signing, and Trust Anchor module
- Layer 2 switching with static inter-VLAN routing capabilities (Network Essentials)
- Dual-media combo uplink ports supporting both RJ45 and SFP for flexible connectivity
- Conformal coating for protection against moisture, dust, corrosive chemicals, and contaminants
- Fanless design for silent operation in noise-sensitive environments
- Extended operating temperature range: -40°C to +75°C for extreme conditions
- Dual DC power inputs (12-48 VDC) with active-standby redundancy
- Industrial protocol support: EtherNet/IP (CIP), Modbus TCP, PROFINET
- IEEE 1588v2 Precision Time Protocol (PTP) for time synchronization
- Resilient Ethernet Protocol (REP) and Media Redundancy Protocol (MRP) for network redundancy
- Quality of Service (QoS) with 8 egress queues per port
- Advanced security: 802.1X authentication, port security, DHCP snooping, Dynamic ARP Inspection
- VLAN support: Up to 256 VLANs with VLAN tagging and trunking
- Spanning Tree Protocol: RSTP, MSTP, Rapid PVST+, PVST+
- IGMP snooping and MLD snooping for multicast optimization
- Storm control for broadcast, multicast, and unicast traffic
- DIN-rail mountable compact form factor for space-constrained cabinets
- API-driven configuration with NETCONF, RESTCONF, and YANG data models
- Zero-touch provisioning for simplified mass deployment
- Cisco Catalyst Center management support
- Modern WebUI for intuitive setup and monitoring
- IP30-rated enclosure for industrial environments
- Shock and vibration resistant design

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 20 (18x 10/100/1000 RJ45 downlinks, 2x 1GE combo uplinks RJ45/SFP)
- Switching Bandwidth: 20 Gbps
- Forwarding Rate: Up to 29.76 Mpps
- Memory: 4 GB DRAM
- MAC Address Table: 8,000 entries
- VLANs Supported: 256
- Operating Temperature: -40°C to +75°C (cabinet dependent)
- Power Input: Dual DC power inputs, 12-48 VDC nominal (9.6-60 VDC absolute)
- Power Consumption: 36.7W typical (non-PoE model)
- Dimensions (H x W x D): 5.00 x 4.30 x 5.12 in (12.70 x 10.92 x 13.00 cm)
- Weight: 2.8 lb (1.27 kg)
- Mounting: DIN-rail
- Enclosure: IP30, conformal coating for moisture and dust protection
- Cooling: Fanless
- Software: Cisco IOS XE with Network Essentials license
- Console Ports: 1x RS-232 (RJ-45), 1x Micro USB
- Management: CLI, WebUI, SNMP v1/v2/v3, NETCONF, RESTCONF, Cisco Catalyst Center
- MTBF: 642,050 hours

FAQs

Q: What is conformal coating and why is it important?
A: Conformal coating provides additional protection against moisture, dust, corrosive chemicals, and other contaminants, making this switch ideal for harsh industrial environments such as oil & gas installations, marine applications, and outdoor enclosures where standard switches would fail.

Q: What industrial protocols does the IE-3100-18T2C-CC-E support?
A: The switch natively supports EtherNet/IP (CIP), Modbus TCP, PROFINET, and IEEE 1588v2 Precision Time Protocol (PTP), enabling seamless integration with PLCs, SCADA systems, and other industrial automation equipment.

Q: Does this model support Power over Ethernet?
A: No, the IE-3100-18T2C-CC-E is a non-PoE model. For PoE-enabled industrial switches in the same series, consider models with 'P' in the SKU designation such as IE-3100-4P2S-E or IE-3100-8P2S-E.

Q: What is the difference between the CC-E and standard E models?
A: The CC designation indicates conformal coating applied to the circuit boards for enhanced protection in extremely harsh environments with high humidity, corrosive atmospheres, or marine conditions. The standard E models lack this additional protective coating.

Q: Can this switch operate in redundant power configurations?
A: Yes, the IE-3100-18T2C-CC-E features dual DC power inputs with active-standby redundancy. The input with the higher voltage automatically supplies power to the switch, ensuring continuous operation if one power source fails.
