• Cisco IE-2000-8T67P-G-E industrial L2 switch with 8x 10/100 M12 PoE+ ports
1 1

Cisco

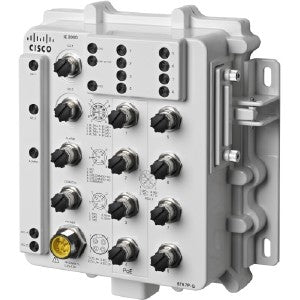

Cisco IE-2000-8T67P-G-E | Industrial L2 switch | 8x 10/100 M12 (PoE+ Class 4) | 2x 1G uplinks | LAN Base | IP67, PTP 1588, NAT

IE-2000-8T67P-G-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Rugged, IP67-sealed industrial Layer 2 switch with 8x Fast Ethernet M12 PoE+ access ports and 2x 1G uplinks for resilient backhaul. Delivers secure segmentation, traffic prioritization, and rapid convergence at the edge, with support for IEEE 1588 PTP timing and NAT for simplified integration of field devices. Fanless design, shock/vibration tolerance, and redundant DC inputs suit harsh environments.

Features

- IP67 sealed industrial design for harsh environments
- 8x PoE+ M12 access ports to power cameras, sensors, and controllers
- 2x 1G uplinks for resilient aggregation/backhaul
- IEEE 1588 PTP for time-sensitive industrial applications
- NAT edge capability for simplified network integration
- Redundant DC power inputs and fanless reliability
- Comprehensive L2 security and QoS

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Layer/License: Managed L2, LAN Base feature set
- Access Ports: 8x 10/100 Mbps M12 PoE+ (802.3at, Class 4 per port)
- Uplinks: 2x 1G (SFP or copper, model dependent)
- Timing: IEEE 1588 Precision Time Protocol (PTP)
- NAT: Supported for simplified edge segmentation
- Ruggedization: IP67 sealed enclosure, fanless; shock/vibration tolerant
- Power: Dual DC power inputs (redundant), M12 power connectors
- Security: 802.1X, MAC/Port security, DHCP snooping, ACLs, TACACS+/RADIUS
- Resiliency: RSTP/MSTP, EtherChannel, loop guard, storm control
- QoS/Multicast: 802.1p CoS, DSCP trust, IGMP snooping/querier
- Management: CLI, Web UI, SNMPv3, Syslog, NTP/PTP
- Mounting: Panel/wall mounting options for sealed deployments
- Optics (uplink SFPs): 1000BASE-SX (850 nm, up to 550 m MMF), 1000BASE-LX/LH (1310 nm, up to 10 km SMF); Connector: LC duplex

FAQs

Q: Does this model provide PoE on the access ports?
A: Yes. All 8 access ports support 802.3at PoE+ (Class 4). Total PoE budget depends on the external power input.

Q: Are the 1G uplinks SFP slots or copper?
A: The platform supports 1G uplinks via SFP and/or copper depending on specific hardware options. Use appropriate 1G SFPs for fiber connections.

Q: Is this a Layer 3 switch?
A: It runs a LAN Base (Layer 2) feature set. Timing (PTP) and NAT are supported; dynamic routing protocols are not.

Q: Where can I use it outdoors?
A: The IP67 sealed enclosure is designed for harsh, dusty, or wet environments. Ensure proper sealing of M12 connectors and follow installation guidelines.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
